ItemNo :
LITH-PCD-20JMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.com

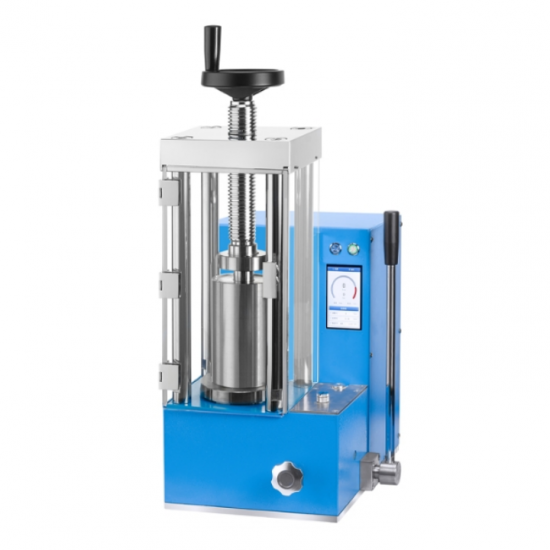

Lab 20T Electric Cold Isostatic Press with 300Mpa or 500Mpa Isostatic Pressure
Mold diagram
Mold operation diagram
Operating interface
Parameter setting: Click Parameter setting to enter the Setting menu.
Pressure settings: The pressure applied can be set.
Time setting: Set pressure timing, when the holding time is up. The device will alert you that pressure can be relieved.
Sample size: Set the shape and size of the sample, the device will automatically calculate the pressure of the sample according to the size you set, so as not to cause overpressure.
Start button: Click the start button and the device starts to operate according to the set parameters. When the pressure reaches the set value, the pressure will automatically stop, and the automatic pressure will start. The "Start" button becomes "Stop"
Stop button: Click the stop button, the device exits the pressure retaining program. Then open the oil stem to remove the pressure.
Operation procedure
Technical parameter
|
Instrument type |
PCD-20J |
|
Pressure range |
0-20T(0-21Mpa) |
|
Piston diameter |
Chrome plated cylinder Φ110mm(d) |
|
Overall structure of the main body |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
The digital display shows 0.0-40.0MPa |
|
Maximum piston stroke |
40mm(T) |
|
Pressurization method |
Electric pressurization/manual pressurization |
|
Pressure replenishment method |
Automatic pressure replenishment/manual slow pressure increase |
|
Protective cover |
Organic glass |
|
Ambient temperature |
10 ℃-40 ℃ |
|
Isostatic pressure |
Φ30 x150mm(MXN) 0-300MPa Φ22 x150mm(MXN) 0-500MPa |
|
External dimensions |
305X430X600mm(LXWXH) |
|
Power supply |
550W(220V/110 can be customized) |
|
Equipment weight |
120Kg |
|
Powder tablet press size diagram |
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
