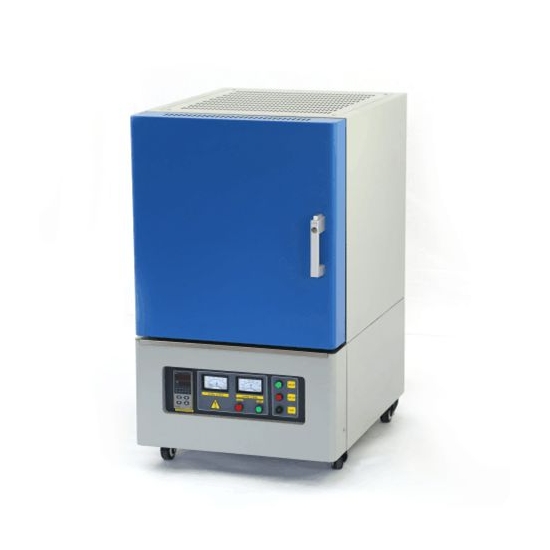

Louis@lithmachine.comLab 1400°C 40-Segment Muffle Furnaces W/ PC Interface
LITH-1400Muffle muffle furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and silicon carbide (SiC) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
1 Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
2 Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
3 Built-in computer interface.
4 Long life type S thermocouple.
5 CE compliant
Safety
1 Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
2 Power failure protection resumes furnace operation right after the point of failure when power is reestablishe.
Specifications
Electrical requirements
110-240VAC, 50/60Hz, single phase
Min. working temperature
Ambient
Max vs constant working temperature
1400°C (2552°F) / 1300°C (2372°F)
Refractory lining
Mitsubishi (Japan) high quality 1600 grade fiber alumina
Heating element type
Silicon carbide (SiC)
Thermocouple type
S
Temperature controller
Shimaden fp93 (Japan) with 4 programs and
Max heating / cooling rate
< 15°C (59°F) / min
Temperature precision
+/- 1°C
CE compliance
Yes
40 segments (ie. 4 x 10 segments or 2 x 20 segments)
Size comparison
Chamber size (DxWxH)
6x6x6"
12x8x8"
16x12x12"
Usable chamber space (DxWxH)
4x5x5.5"
10x7x7.5"
14x11x11.5"
Chamber capacity (cu ft)
0.13
0.44
1.33
Installed heating element
4
8
12
Maximum output
3 kW
7 kW
13 kW
Unit/shipping dimensions (LxWxH)
20x19x32"/31x37x46"
22x25x34"/36x32x56"
26x28x39"/36x32x56"
Standard Package
Part description
Quantity
Part image
muffle furnace
1 pc
Type S thermocouple
1 pc
Stainless steel tongs
1 pc
Spare heating element
2 pcs
Alumina thermal cushion block
1 pc
Thermal gloves
1 pair
Spare fuse
2 pcs
USB/RS485 computer interface kit
1 set
