Industrial 950C 190L Vacuum Debinding Furnace For Cemented Carbides

ItemNo :
LITH-VD-040412
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

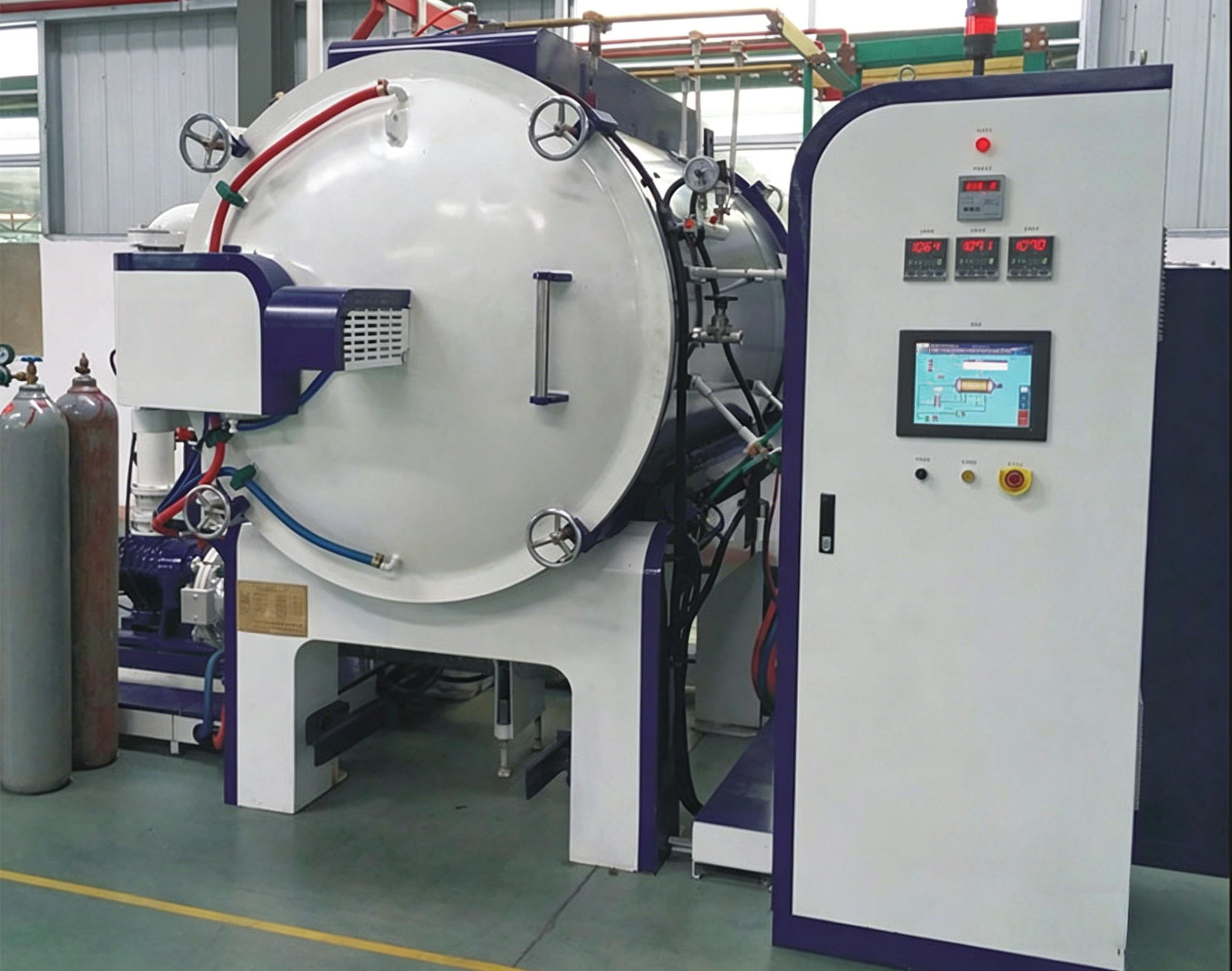

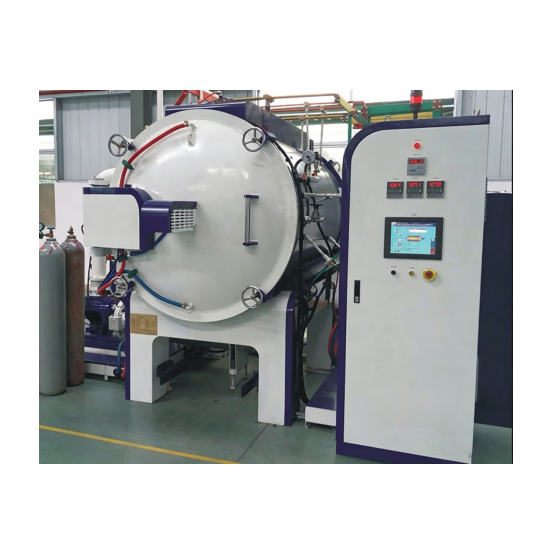

Industrial 950C 190L Vacuum Debinding Furnace For Cemented Carbides

Product Description

Vacuum debinding furnace is mainly used for debinding treatment of metal matrix powder metallurgy products. It can remove binders such as PEG, paraffin wax and rubber. It is widely used for debinding of extruded bars, molded products and other workpieces.

Application Scope

Tungsten alloys, high-density alloys, molybdenum alloys, cemented carbides, etc.

Technical Features

Adopts special furnace chamber structure and heater arrangement, ensuring excellent temperature uniformity.
Equipped with specially structured debinding box with good sealing effect, realizing thorough debinding without pollution to furnace components.
Functions include flexible vacuum pumping, vacuum pre-sintering, negative pressure debinding, TOWAC debinding, micro positive pressure debinding, etc.
Uses advanced thermal insulation structure and materials, featuring good thermal insulation performance and low heat storage of the furnace chamber.
Suitable process atmospheres: N₂ / Ar / H₂.

Product Specifications

Parameters / Model	VD-020203	VD-030306	VD-040412	VD-89150
Working Zone Size W×H×L (mm)	200×200×300	300×300×600	400×400×1200	Φ890×1500
Max. Temperature (°C)	950	950	950	950
Temperature Uniformity (°C)	±3	±3	±3	±5
Ultimate Vacuum Degree (Pa)	1	1	1	1
Pressure Rise Rate (Pa/h)	≤0.67	≤0.67	≤0.67	≤0.67
Heating Method	Resistance	Resistance	Resistance	Resistance

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Door locking mode: manual / automatic

Furnace shell material: all carbon steel / inner layer stainless steel / all stainless steel

Thermal insulation material: carbon felt / graphite felt / carbon fiber rigid felt / metal

Heater material: metal / graphite

Muffle material: metal / graphite

Thermocouple: Type K / N / C / S (tungsten sleeve / molybdenum sleeve / ceramic sleeve)

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : cemented carbide debinding furnace 950C debinding furnace vacuum debinding furnace
