Cylindrical Battery Sorting Machine - 4 Grades

ItemNo :
LITH-PFU13-D-05
MOQ :
1
Place of Origin:
China
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

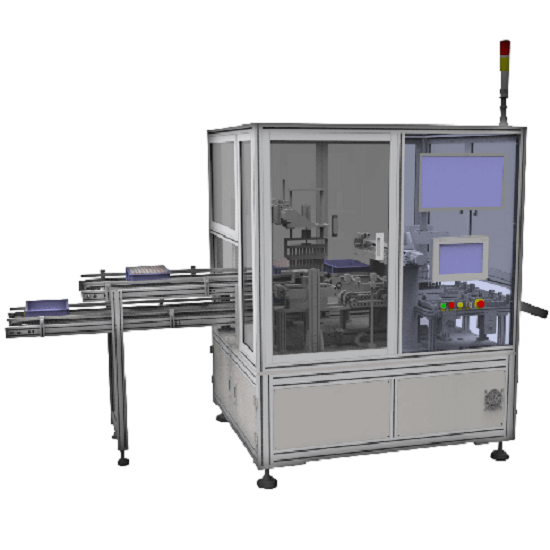

Cylindrical Battery Sorting Machine - 4 Grades

Products Description

This machine is used for code scanning and sorting of 18650 and 21700 cylindrical cells. Ten cells are tested at a time, and the cells are sorted into four gears according to capacity. The full box cell uses the conveyor line to collect and load materials, the manipulator of high-speed servo module grabs the transfer cell, the CCD high-speed dynamic code reading, and the analysis beat can reach 120 pcs/min.

Performance Characteristics

1. Suitable for 18650, 21700 cylindrical cores;

2. The full box cell is loaded with buffer, and the empty box is output automatically;

3. CCD high speed dynamic code reading, high accuracy, fast efficiency,the beat can reach 120pcs / min;

4. It can be divided into 4 grades according to the capacity battery.

Technical Parameter

Model Number

LITH-PFU13-D-05

Beat

120pcs/min

Voltage Source

220V 50HZ

Batteries

18650/21700

Power

2KW

Table Height

800mm

Pressure

6kgf/cm²

Dimensions

300013001900(mm)

Cylindrical Battery Sorter

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Cylindrical Battery Sorting Machine Cylindrical Battery Sorter Cylindrical Battery Selector

Model Number	LITH-PFU13-D-05	Beat	120pcs/min
Voltage Source	220V 50HZ	Batteries	18650/21700
Power	2KW	Table Height	800mm
Pressure	6kgf/cm²	Dimensions	300013001900(mm)
