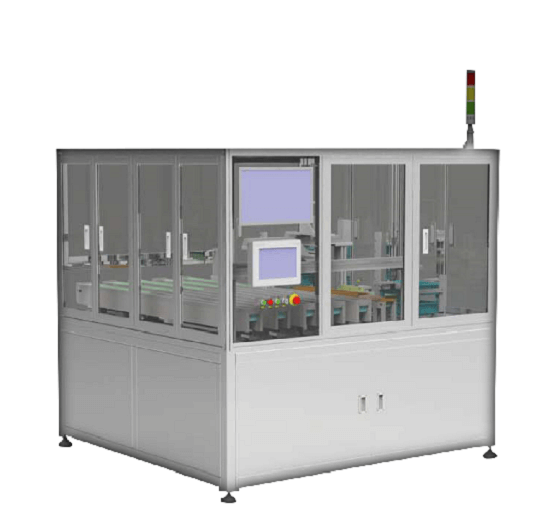

Cylindrical Battery Sorting Machine - 4 Grades

ItemNo :
LITH-BJXC-STS0401
MOQ :
1
Place of Origin:
China
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

Cylindrical Battery Sorting Machine - 4 Grades

Products Description

The cylindrical battery sorter is used for OCV test and sorting of 18650, 21700 and other cylindrical batteries. Ten batteries are tested at a time, and the batteries are sorted into four grades according to capacity. Full box battery stacking feeding, high-speed servo module manipulator grabs the transferred battery, CCD high-speed dynamic code reading, the analysis beat can reach 120pcs/min. The battery loading and unloading mode can be customized according to the use needs, which can be used as a stand-alone or with automatic production line.

Performance Characteristics

1. Full box battery stacking buffer feeding, empty box automatic stacking;

2. High precision battery tester, high test precision;

3. CCD high speed dynamic code reading, high accuracy, fast efficiency;

4. It can be divided into 4 grades according to the capacity battery.

Technical Parameter

Model Number

LITH-BJXC-STS0401

Beat

120PPM

Voltage Source

220V 50HZ

Batteries

18650/21700 ect.

Power

2KW

Pressure

0.5-0.7MPA

Testing

Open Circuit Voltage,

AC Internal Resistance

Precision

Internal Resistance:0.1MΩ

Voltage:0.001V

Grades

4

Dimensions

200020001800(mm)

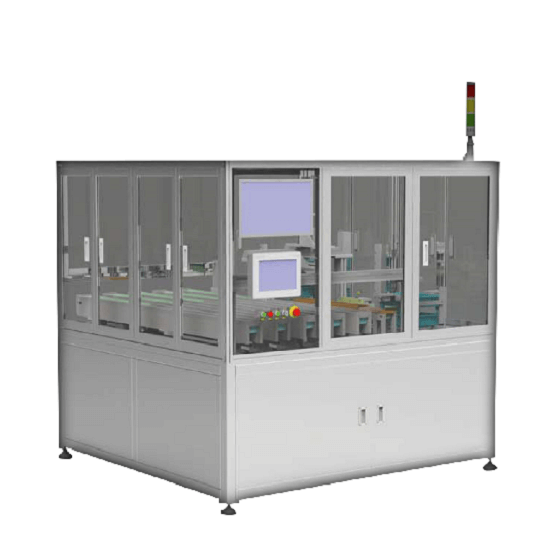

Cylindrical Battery Sorting Machine

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Battery Sorting Equipment Cylindrical Battery Sorting Machine Cylindrical Battery Sorter

Previous: Cylindrical Battery Sorting Machine - 8 Grades
Next : Battery Appearance Inspection Machine

Model Number	LITH-BJXC-STS0401	Beat	120PPM
Voltage Source	220V 50HZ	Batteries	18650/21700 ect.
Power	2KW	Pressure	0.5-0.7MPA
Testing	Open Circuit Voltage, AC Internal Resistance	Precision	Internal Resistance:0.1MΩ Voltage:0.001V
Grades	4	Dimensions	200020001800(mm)
