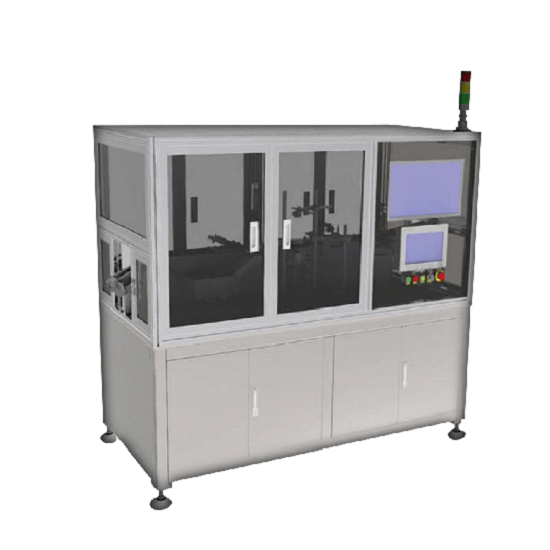

Battery Appearance Inspection Machine

Products Description

Cylindrical battery appearance testing equipment is used to detect the appearance defects of 21700,22650,32131,32650 cylindrical battery, respectively detect the cylindrical scratches, pits and end surface explosion-proof valve deformation of the battery, test 2 batteries at a time, the 3d high-definition camera has the detection precision of ±0.05mm, the bad battery can be eliminated automatically, and the detection efficiency can reach 60pcs/min. Good stability, can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automation line.

Performance Characteristics

1. Automatic reading code to verify the feeding battery information;

2. 3D visual inspection of the battery cylinder surface scratches, pits and so on;

3. 2D vision detection of battery end face explosion-proof valve deformation and so on;

4. Automatically eliminate NG products according to the test results.

Technical Parameter

Model Number

LITH-BJXC-SAD01

Beat

60PPM

Voltage Source

220V 50HZ

Batteries

18650/21700/22650 ect.

Power

1.2KW

Pressure

0.5-0.7MPA

Precision

±0.5mm

Dimensions

175010001950(mm)

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
