ItemNo :
Lith-4L-IMOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 daysEmail :
Louis@lithmachine.com
Key Features：
a. Bring glue protection and alarm
b. Insufficient adsorption alarm and interlock
c. The motor can rotate forward and reversely
d. With communication interface RS485, free remote communication software is provided, and can be connected to mouse and keyboard
e. Formula with power-offprotection function
f. The overall material of the chamber is polytetrafluoroethylene PTFE
g. Actual ultra-wide speed range,10- 12000 rpm, with RS485 communication, standard MODBUS-RTU protocol
h. The machine supports 24/7 uninterrupted work
i. Integrated automatic glue dispensing (only supported by KW-4L-I)
j. Integrated foot pedal function (only supported by KW-4L-I)

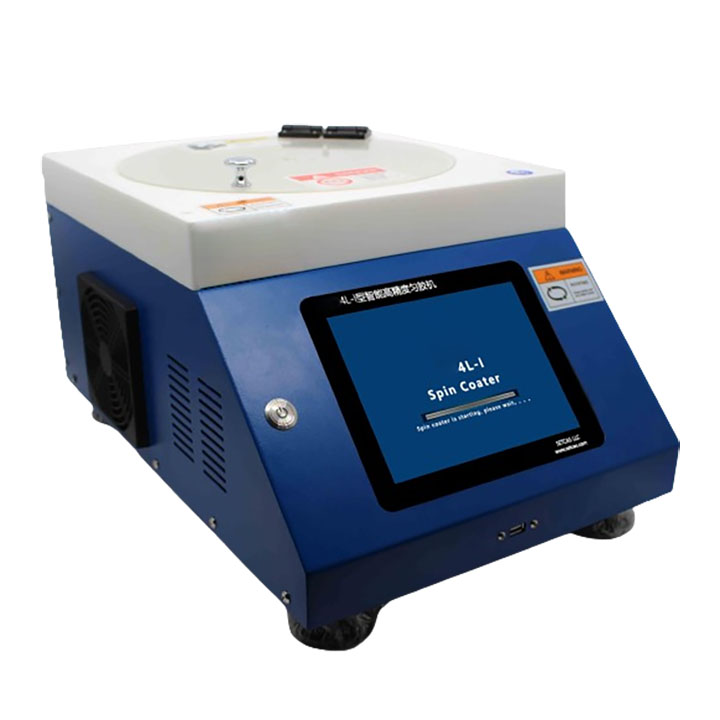

Spin Coater Specifications
|
Substrate size |
5-200mm (standard)/5-600mm (optional) |
|
Speed range |
10- 12000RPM (standard)/10-20000RPM (optional) |
|
Acceleration range |
10-30000RPM/S， Adjustable |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Automatic glue dispensing |
Yes |
|
Human machine interface |
8-inch touch screen |
|
Communication interface |
USB (standard), with RS485 communication(standard)MODBUS-RTU protocol, can be connected to wireless mouse and keyboard |
|
Foot pedal function |
Yes |
|
Turn around |
Can rotate forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Third-party options |
Logitech wireless mouse/wireless keyboard/Kingston 2G disk |
|
Vacuum Pump |
SC-550V |
|
Set data |
Unlimited group data, each group of 15 speeds (standard) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Data protection |
default with power-down protection |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
650W |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
340mm(W)X500mm(D)X250mm(H) |
|
Weight(Spin Coater) |
18KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
