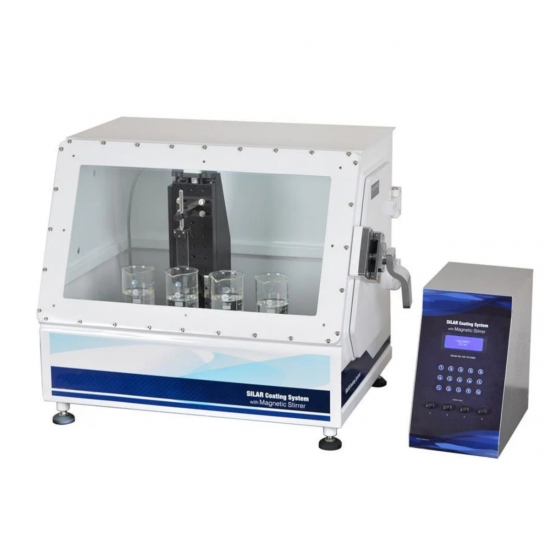

Benchtop 4-Station Multi-Layer Heating Dip Coating Process Coater

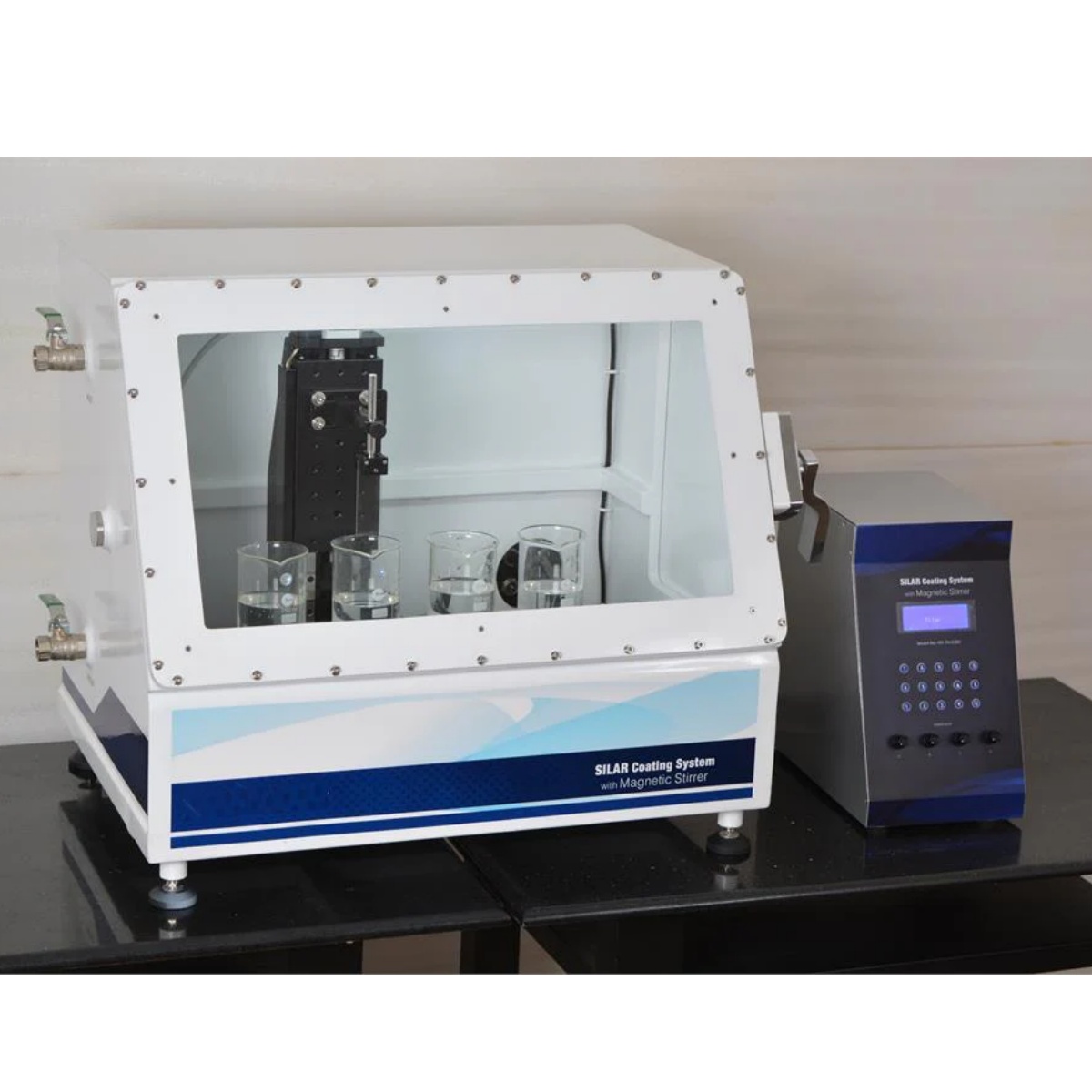

The TMAX-04C features an air-tight chamber with a front observation window. The unit includes inlet and outlet valves for inert gas purging to protect samples from moisture or oxygen exposure post-coating. It provides four independent platforms for coating solutions, each equipped with a magnetic stirrer. Stirring speeds for individual beakers are adjustable via knobs on the front panel.
This system deposits thin films on substrates using the Successive Ionic Layer Adsorption and Reaction (SILAR) method, involving repeated immersion in solution and deionized water (temperatures adjustable per requirements).
· Voltage: 208–240 VAC
· Frequency: 50/60 Hz
· Gas purging: Inlet/outlet valves

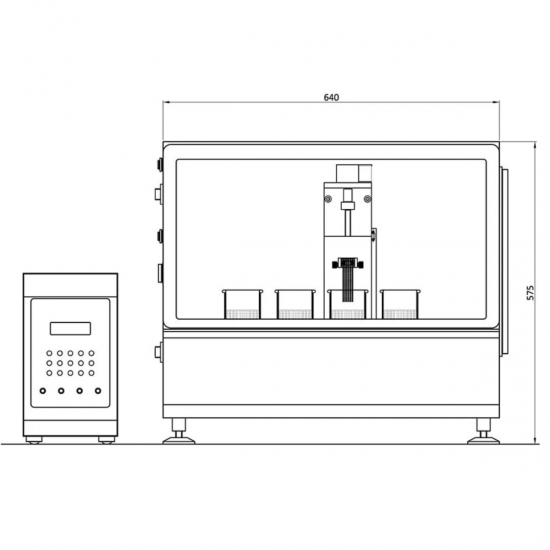

· Dimensions: 640 (L) × 475 (W) × 575 (H) mm
· Actuator: Stepper motor
· Drive mechanism: Lead screw
· Dip duration: 0–99 sec/min/hr
· Drawing speed: 2–9,000 µm/sec (adjustable via digital panel)
· Max stroke length: 100 mm
· Number of dips: 1–999
· Speed range: 0–999 rpm
· Control: Independent speed for all 4 positions
· Interface: LED display for speed/mode adjustment
· TUV (UL61010) or CSA certification (available at extra cost)
1. Substrate pretreatment: Plasma cleaning recommended for optimal film quality.
2. Solution preparation: Use an ultrasonic processor to disperse nanopowders or homogenize solutions.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
