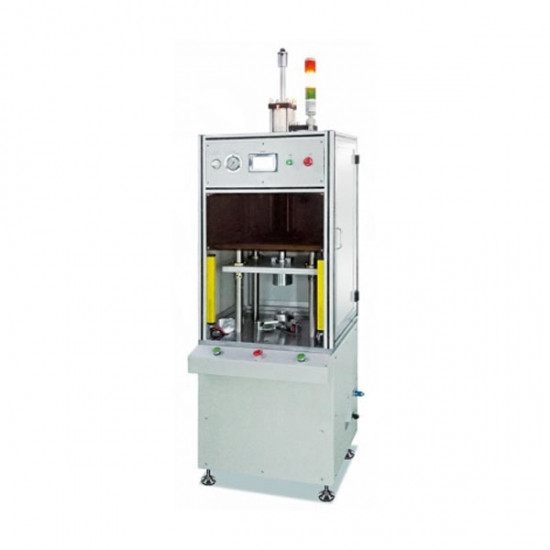

Automatic Supercapacitor Sealing Machine
The Automatic Supercapacitor Sealing Machine is specifically designed for mould sealing and curl-edging the casings of cylindrical batteries and supercapacitors.
· Mould-based sealing ensures no enlargement or damage to the casing, delivering uniform seals and reliable airtightness.
· High-precision linear guide rails for accurate and consistent sealing dimensions.
· Variable sealing speed — starts with fast approach, then transitions to slow curling for quality edging.
· Adjustable curl height to support different product specifications.
· Configurable sealing pressure and hold time for process flexibility.
· Built-in product counter to monitor output.
· Safety light curtain protects operators during use.
· Stylish geometric design, compact footprint, and easy operation.
· PLC with touchscreen control for intuitive operation.
|
Parameter |
Specification |
|
Applicable Products |
Cylindrical batteries, supercapacitors (customizable) |
|
Air Supply |
0.5–0.7 MPa (adjustable) |
|
Power Supply |
220 V / 50 Hz |
|
Power Consumption |
0.5 kW |
|
Dimensions |
L 900 × W 900 × H 1800 mm |
|
Weight |
Approx. 500 kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
