ItemNo :
LITH-WC67K-50T/2500MOQ :
1Warranty:
2yearsDelivery Time:
5 days
Features

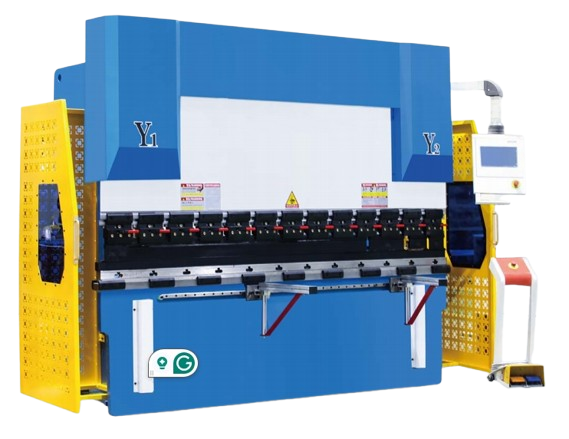

The main machine adopts the structure of series WC67Y hydraulic press brake
High precision,high efficiency CNC Torsion Bar Synchro Press Brakes
Holistic welding structure
Stabilizes left and right balance with help of the mechanical Torsion Bar
Back gauge is drove by servo motor and performance
Ball screw and linear guide
Technical parameter
Specification can be customized as your actual needs!
|
Model |
Nominal force |
Worktable length |
Columns distance |
Throat depth |
Slider stroke |
Max. height |
Power |
Dimension |
|
Unit |
KN |
mm |
mm |
mm |
mm |
mm |
KW |
L*W*H, mm |
|
40T/2200 |
400 |
2200 |
1870 |
230 |
100 |
320 |
4 |
2200*1200*1900 |
|
40T/2500 |
400 |
2500 |
1960 |
230 |
100 |
320 |
4 |
2500*1200*1900 |
|
50T/2500 |
500 |
2500 |
1960 |
230 |
100 |
320 |
5.5 |
2500*1200*2000 |
|
63T/2500 |
630 |
2500 |
1960 |
250 |
120 |
320 |
5.5 |
2500*1300*2210 |
|
63T/3200 |
630 |
3200 |
2600 |
250 |
120 |
320 |
5.5 |
3200*1300*2210 |
|
80T/2500 |
800 |
2500 |
1960 |
300 |
120 |
320 |
7.5 |
2500*1400*2300 |
|
80T/32000 |
800 |
3200 |
2600 |
320 |
120 |
350 |
7.5 |
3200*1500*2300 |
|
80T/4000 |
800 |
4000 |
3160 |
320 |
120 |
350 |
7.5 |
4000*1500*2400 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
