100T CNC Press Brake Sheet Metal Bending System

ItemNo :
LITH-HT-10030
MOQ :
1
Compliance:
Warranty:
2years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

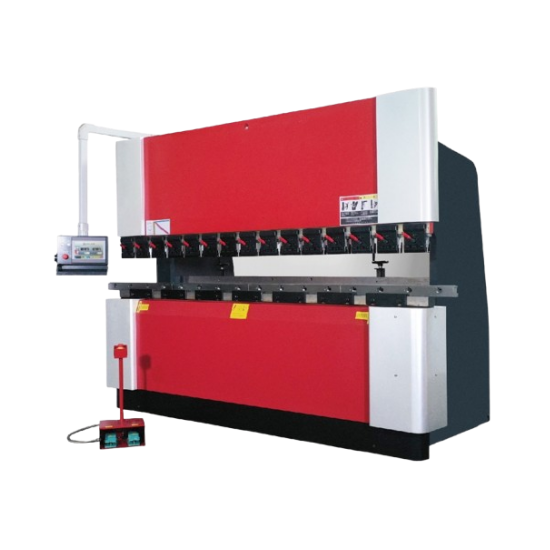

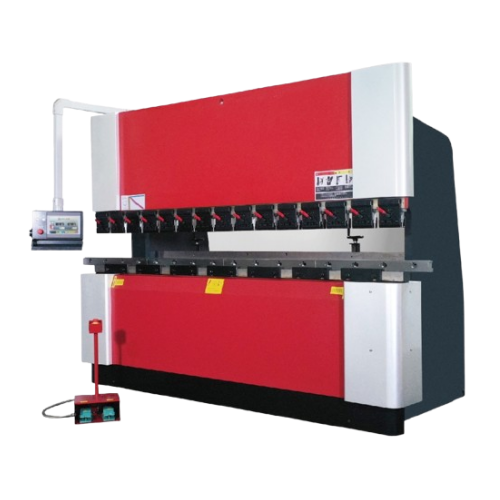

100T CNC Press Brake Sheet Metal Bending System

Introduction

The HT series is the most stable bending machine that can be utilized in the most variable production environments. The high rigidity of the machine frame and the CNC system expand the machining range and realize high speed and high precision machining, High-speed, high-precision processing can be realized at the same time, compared with the previous on the dynamic type more energy-saving and stable improve the working environment and solve various bending machine angle problems at the same time. The machine can also help operators to achieve the target angle without trial processing, and can be used in multiple production cycles.

Technical parameter

Model	Unit	HT-10030
Nominal force	KN	1000
Bending length	mm	3100
Distance between side panels	mm	2550
Throat depth	mm	405
Ascent speed	mm/s	52
Bending speed	mm/s	8
Return speed	mm/s	46
Opening height	mm	385
Workbench (slider) stroke	mm	100
Number of cylinders	pcs	3
Main motor power	KW	7.5
Machine weight	KG	6400
Machine length	mm	3340
Machine width	mm	1580
Machine height	mm	2380
Fuel tank capacity	L	72

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
