ItemNo :
LITH-ZB-910MOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

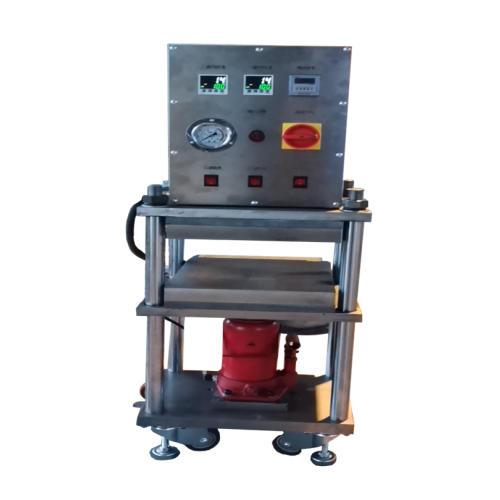

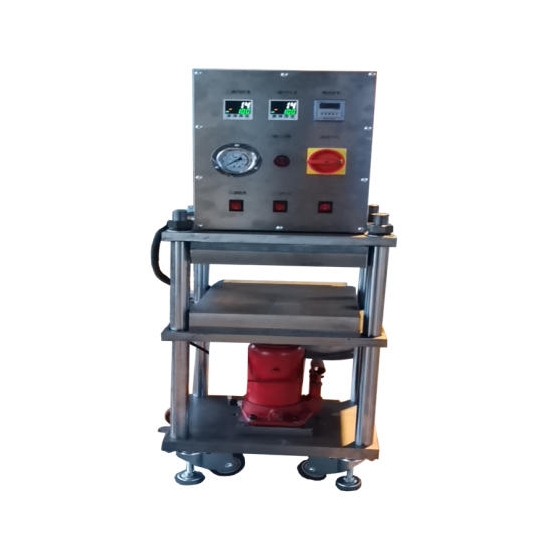

The ZB-910 small-scale experimental vulcanizing machine can be used for vulcanization or molding of rubber products, plastics, composite materials and other synthetic materials, and can also be used for pressing standard test pieces for tensile, impact and other tests. This equipment features convenient operation, small floor space and low energy consumption. It is particularly suitable for use in factories and school laboratories without three-phase power supply.
Advantage
The machine is lightweight and only requires a regular single-phase power supply. Its installation and operation are relatively simple. The pressure gauge shows the pressure, which can be adjusted freely within the range of 0 to 20MPa. The thermometer shows the temperature, and the temperature within the range can be set arbitrarily.
Technical parameters
|
Nominal clamping force |
0.2MN (i.e., 20 tons) |
|
Hot plate size |
300*300mm |
|
Hot plate spacing |
120mm |
|
Number of working floors |
Single layer |
|
Temperature range |
RT-250℃ (can be customized) |
|
Temperature fluctuation |
±2%℃ |
|
Maximum hydraulic pressure |
20MPa |
|
Total power |
4KW |
|
Loading method |
Manual loading |
|
Power Supply |
220V 50Hz |
|
Dimensions |
450*450*1000mm |
|
Net weight |
Approximately 220Kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
