ItemNo :
LITH-109S-20TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

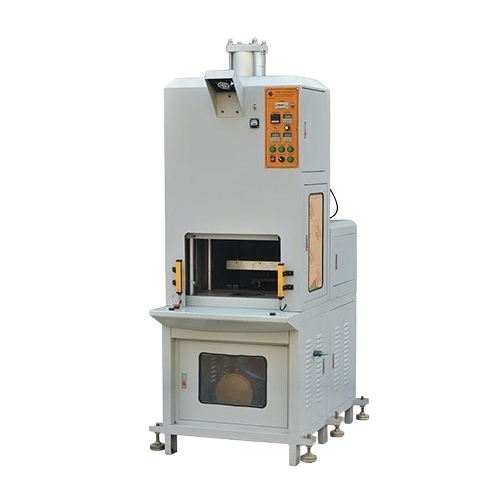

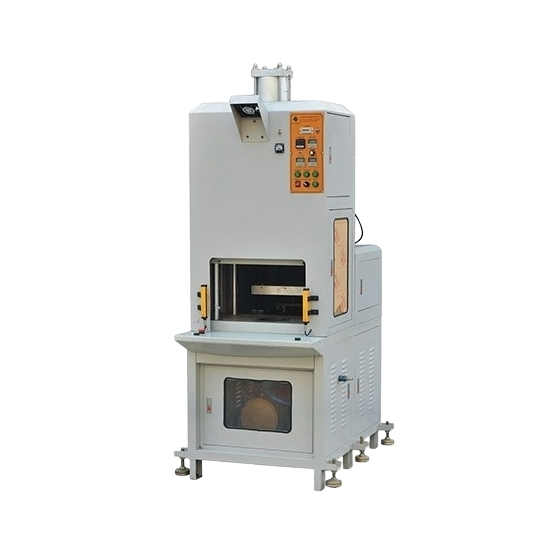

The hot press forming machine adopts a four-column and three-plate open space. The four columns are combined with precision sewn guide sleeves. It is a professional equipment developed for the IMD industry (in-mold decorative inlay injection molding technology) and the forming of film, PET, PVC and other sheet materials. It uses far-infrared radiation to uniformly heat the sheet materials, and then through a constant temperature device, the oil cylinder pressure makes them instantly formed. This machine can be used for both forming and punching by simply changing the mold.
Scope of application
Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc.
Electronics industry: MP3, MP4, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates;
Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc.
Other industries: computer industry, communication industry, medical devices, cosmetic boxes, decorative boxes, toys, etc
Features
The maximum speed of this machine can reach 250MM per second, while the impact noise does not exceed 80 decibels, which is equivalent to a normal conversation in an office.
The carbon fiber heating tube with rapid heating, small thermal lag and uniform heat generation has a lifespan (continuous point burning) of no less than 6,000 hours. Long-term operation of this machine by staff can enhance blood circulation in the human body, accelerate metabolism and boost immunity.
This machine can be used for both forming and punching by simply changing the mold.
The heating element of this machine is fully enclosed with heat insulation cotton on all sides. When in standby mode, the external radiation power only accounts for 10% of the heating power. The external radiation power of the conventional IMD hot press forming machine in the market is as high as 50%. In the hot summer, 10 units of 4KW conventional IMD equipment need to be equipped with 10 units of 5P air conditioners. And our hydraulic IMD equipment only requires two units.
Application
This product is widely used in the following industries:
Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc.
Electronics industry: MP3, MP5, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates;
Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc.
Computer industry: keyboards, mice, face cases;
Communication industry: mobile phone keys, mobile phone lenses, mobile phone color shells, PHS and landline phone panels, window lenses;
Other industries: medical devices, cosmetic boxes, sports and entertainment products, etc.
Technical parameters
|
Model |
109S-5T |
109S-10T |
109S-20T |
109S-30T |
109S-50T |
109S-60T |
|
|
Nominal force (T) |
5 |
10 |
20 |
30 |
50 |
60 |
|
|
Maximum hydraulic working pressure (MPa) |
7 |
21 |
21 |
21 |
21 |
21 |
|
|
Back stroke force (mm) |
5 |
3.1 |
3.1 |
4 |
5.1 |
5.1 |
|
|
Height of table above floor (mm) |
780 |
780 |
780 |
780 |
780 |
780 |
|
|
Biggest operational height (mm) |
300 |
400 |
400 |
400 |
400 |
400 |
|
|
Maximum stroke of the ram (mm) |
200 |
300 |
300 |
300 |
300 |
300 |
|
|
Dimensions of table (mm) |
Left-right |
450 |
600 |
600 |
800 |
1000 |
1200 |
|
Front-back |
350 |
450 |
450 |
600 |
600 |
700 |
|
|
Speed of slider (mm/s) |
Speed of down |
≥100 |
≥150 |
≥150 |
≥188 |
≥178 |
≥178 |
|
Working speed |
≥100 |
≥24 |
≥24 |
≥19 |
≥14 |
≥14 |
|
|
Speed of returning |
≥100 |
≥126 |
≥126 |
≥125 |
≥116 |
≥116 |
|
|
Heating effective area |
Left-right |
330 |
550 |
550 |
700 |
900 |
1170 |
|
Front-back |
300 |
400 |
400 |
550 |
550 |
650 |
|
|
Heating pipe length |
Total length |
310 |
360 |
360 |
460 |
460 |
560 |
|
Dimension |
700*1100*2040 |
900*1300*2080 |
900*1300*2080 |
1100*1700*2130 |
1300*1700*2480 |
1550*1900*2630 |
|
|
Motor + heating = power (KW) |
2.2+3=5.2 |
2.5=2+6=8.2 |
2.2+6=8.2 |
2.2+7.5=9.7 |
3.7+10.5=14.2 |
3.7+13.5=17.2 |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
