ItemNo :
LITH-109GS-200TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

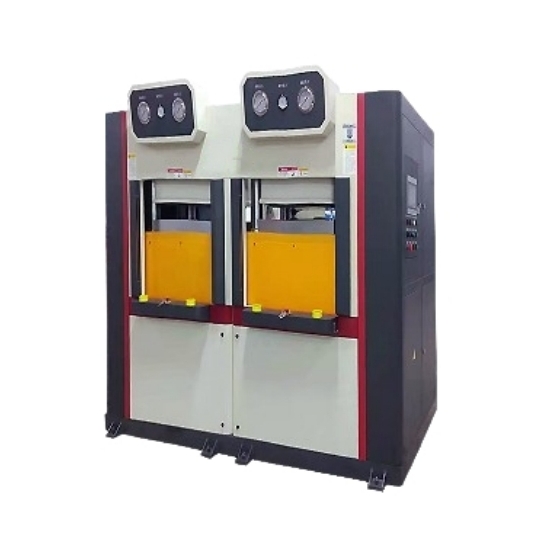

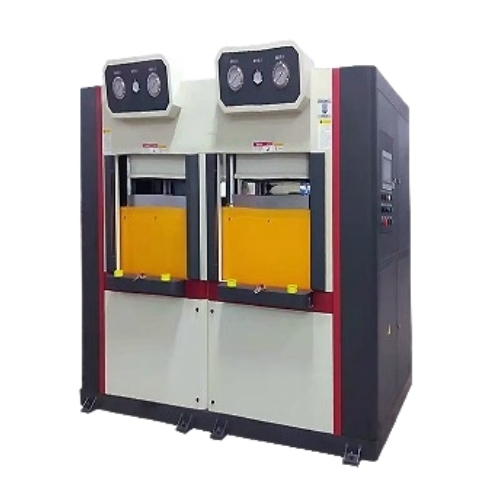

The IML/IMD high-pressure forming machine, also known as the high-pressure gas forming hot bending machine or vacuum hot pressing forming machine, integrates the functions of oil pressure, servo, air pressure, and IR hot pressing forming. It heats the sheet material by closing the mold, and the gas is pressed down in sections. The lower mold cavity is evacuated to achieve three-dimensional film forming. It can achieve segmented pressurization, segmented heating and curve temperature rise. It can be equipped with a mold temperature control machine function.
Applicable materials
1. Fiber materials: Forming of decorative parts such as carbon fiber and glass fiber.
2. Composite materials: PC/PMMA/ABS and other composite board film sheet forming.
3. Insulation materials: Molding of insulating and heat-insulating materials such as aerogel, cold gel, silicone, PET, and filter elements.
Features
1. It adopts a servo system, which is low-noise, energy-saving and environmentally friendly. It can reduce electricity consumption by up to 46%, generate less heat and operate at a low oil temperature (within 50 degrees), which can extend the service life of the hydraulic press and reduce production costs.
2. The unique heating system device can control temperature and pressure in sections and zones. The overall temperature difference can be controlled within 4 degrees, ensuring the stability of the hot pressing temperature and significantly improving the yield of the products.
3. Through precise design, the volume of the equipment has been significantly reduced, occupying a smaller area. With the same space, more equipment can be placed, and it can also be placed on the second floor.
4. It can heat up and cool down quickly without the need for telescopic trays, greatly improving production efficiency.
5. The equipment is equipped with a baking tray with ceramic heating bricks, which can instantly heat special diaphragms to 200°-300°, saving baking time and increasing production capacity.
6. The lower mold can be externally connected to an oil temperature control machine to ensure that the temperature of the lower mold remains stable at ±3°, thereby guaranteeing the yield of the product.
This product is widely used in the following industries:
1. Mobile phone industry: Front and back covers for 2.5D/3D/3.5D mobile phones, full-coverage mobile phone cases.
2. Automotive industry: Interior and exterior trims, buttons, instrument panels, touch panels, smart Windows.
3. Panel industry: Decorative panels for tablets, laptops, medical devices, home appliances and kitchen appliances, smart locks, etc.
4. Electronics industry: Drones, VR/AR glasses, smartwatches, wristbands, switches, keyboards.
5. Fiber materials: Decorative parts made of fiber materials such as carbon fiber and glass fiber.
6. Insulation materials: Aerogel, cold gel, silicone, PET, filter elements and other insulation and heat insulation materials.
7. Composite materials: PC/PMMA/ABS and other film composite plates.
Technical parameter
|
Industry model |
Mobile phone industry |
General industry |
Dual-station model |
|
|
Nominal pressure (T) |
100 |
100 |
200 |
|
|
Maximum working pressure of the liquid |
≤21 |
≤21 |
≤21 |
|
|
Return force (T) |
5T |
5T |
30 |
|
|
Height of the rack surface from the ground (mm) |
1150 |
1150 |
1150 |
|
|
Maximum opening distance (mm |
500 |
600 |
600 |
|
|
Maximum stroke of the slider (pressure head) |
300 |
400 |
400 |
|
|
Effective area of the workbench |
Left &right |
580 |
800 |
1300 |
|
Front&back |
630 |
500 |
700 |
|
|
Slider pressure head speed |
Upward speed |
≤130 |
≤130 |
100 |
|
Working speed |
≤14 |
≤14 |
15 |
|
|
Return speed |
≤180 |
≤180 |
120 |
|
|
Host dimensions (mm) |
1280*1430*2300 |
1530*1600*2400 |
2260*2080*2400 |
|
|
Servo motor power (KW) |
16KW |
16KW |
34KW |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
