ItemNo :
LITH-JSF100MOQ :
1Compliance:
CE CertifiedWarranty:
2 yearsDelivery Time:
5 daysApplication

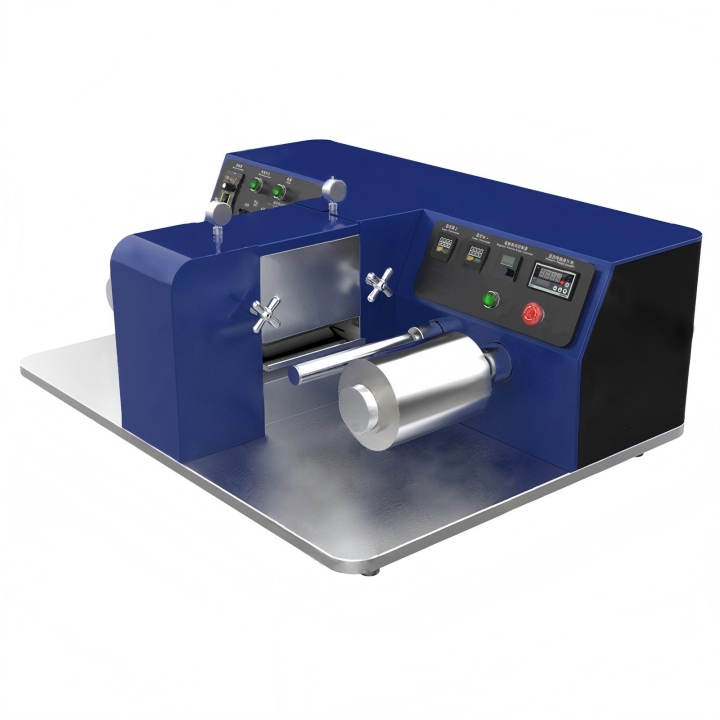

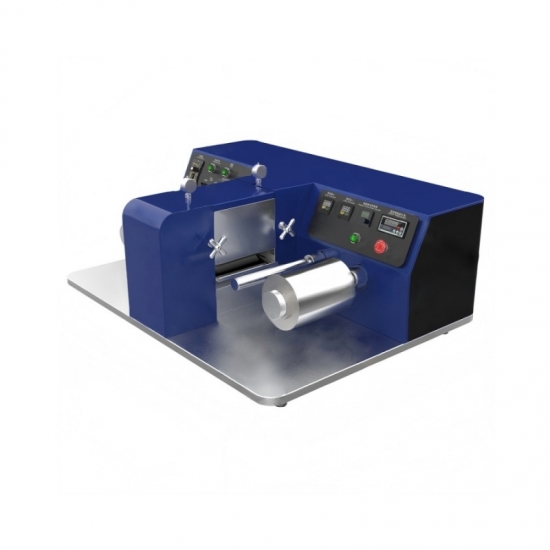

The LITH-JSF100 electric heated two pess rolling machine is designed for laboratory-scale rolling of battery materials, precious metals (gold, silver), and non-ferrous metals (copper, aluminum) under controlled heating conditions. It allows adjustable rolling thickness and simple operation, making it particularly suitable for thinning and increasing the density of lithium ion battery electrodes in clean energy applications.
Technical Specifications
|
Parameter |
Specification |
|
Roller Diameter |
Φ96mm |
|
Roller Surface Hardness |
HRC62 or above |
|
Roller Surface Finish |
0.4 or above |
|
Rolling Thickness |
0-2mm |
|
Pressing Width |
0-100mm |
|
Roller Placement |
Vertical |
|
Rolling Temperature |
Up to 200°C |
|
Feeding Speed |
0-10mm/s |
|
Power Supply |
AC220V or 110V/ 50Hz |
|
Power Consumption |
2000w |
|
Machine Dimensions |
L1090mm × W815mm × 375mm |
|
Machine Weight |
200kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
Hydraulic Electric Roll To Roll Press Machine Calender Roller Machine for Battery Electrode Rolling
