1. Overview

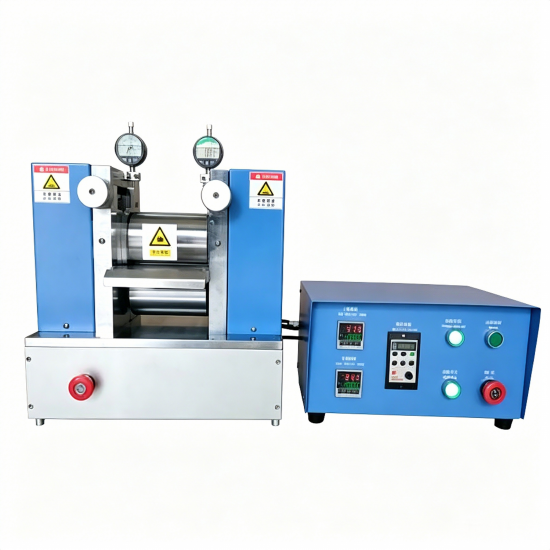

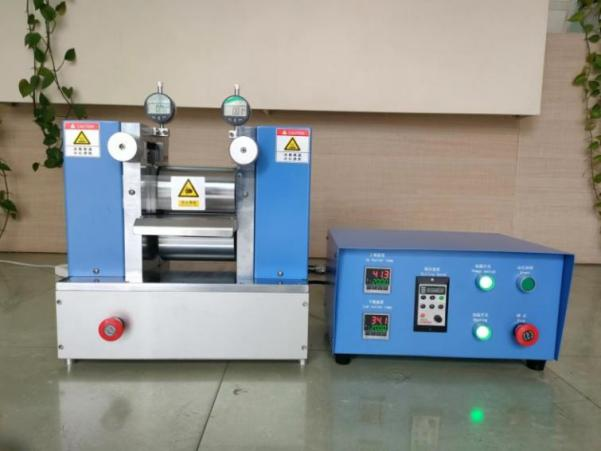

This rolling press is specially designed for the rolling process of small lithium battery electrodes. It adopts single-phase 220V power supply and is suitable for laboratory test lines of universities and enterprises.
The heated two-roll mill is developed for material researchers. It is applicable to manual rolling of battery materials, small amounts of precious metals such as gold and silver, and non-ferrous metals including copper and aluminum in laboratories. The rolling thickness is adjustable with easy operation. It is especially ideal for thinning and densifying lithium battery pole plates for clean energy applications.
2. Working Principle
The equipment adopts a reduction motor to drive high-hardness pressing rolls. The gap between the two rolls is mechanically adjusted to compress and shape electrodes and improve their compact density.
3. Technical Specifications
1. Power Supply: Single-phase 220V, 2.4KW
2. Roll Temperature: Max. 200°C (factory default upper limit)
3. Independent temperature control for two rolls with arbitrary temperature adjustment
4. Roll Dimension: Φ100mm × 200mm
5. Roll Surface Hardness: HRC62
6. Roll Cylindricity: ≤±2μm
7. Adjustable Effective Gap: 0–3mm
8. Working Speed: Stepless variable speed, linear speed adjustable from 0 to 4.0 m/min
9. Roll Surface Finish: (Not specified in original text)
10. Max. Working Width: 200mm
11. Roll Surface Quenching Depth: 100mm
12. Max. Pressure: 3 Tons
13. Overall Dimension: Approx. 450(L) × 320(W) × 450(H) mm
14. Control Box Dimension: 460(L) × 400(W) × 260(H) mm
15. Net Weight: Approx. 110kg
16. Front and rear roll layout, equipped with side material baffles for both rolls and stainless steel feeding chute at the bottom
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
