Two-Chamber Vacuum Baking Oven for Electrode Roll Processing

ItemNo :
LITH-ZRJX-210-B
MOQ :
1
Compliance:
Warranty:
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

1. Scope of Application:

Suitable for baking entire rolls of lithium-ion battery electrode.

2. Configuration

A. Chamber Body: Made of 3.5mm imported 304 stainless steel, reinforced ribs are made of the same material.

B. Frame: Constructed from 1.5mm and 2.0mm high-quality cold-rolled steel plates, composed of two-layer insulation, with layered construction of aluminum silicate wool, aluminum foil wool, and soundproofing wool.

C. Hot Air System: Each layer consists of fan, heating box, air duct, and air pipe, ensuring temperature uniformity.

D. Control System: Composed of PLC, Weinview touchscreen, KITA pressure sensor, high vacuum gate valve, solid-state relay, temperature controller, electromagnetic valve group, etc.

E. Hardware Components: Includes doors, rear cover, vacuum pipes, and other stamped parts.

3. Machine Features

A. Fully sealed heating channels with breathing-type heating process, high efficiency and energy-saving, high temperature accuracy.

B. High-vacuum pneumatic gate valve, independently controlled dual-chamber isolation.

C. Standardized six-fold high-performance safety protection across all models.

D. Aluminum alloy doors, elastic double-layer glass doors, excellent heat retention and explosion-proof performance, equipped with dual-layer pressure detection and overpressure protection.

E. Equipped with 7-inch full-color touchscreen HMI system across all models, elegant and intuitive.

G. Material Loading Method: Suspended on a ∅63mm hanging shaft in the center of the inner chamber, maximum load ≤150kg.

H. Chamber Structure: Double-door, single-opening door.

I. Insulation Structure: Uses high-density aluminum silicate insulation wool, double-layer thermal insulation, external temperature below 45°C (excluding glass doors).

J. Heating Method: Electric heating control, external loop-type hot air circulation.

K. Heating Structure: Uses O-type external circulation – air outlet on the left, suction on the right, to achieve temperature uniformity.

L. Touchscreen display, automatic circulation and control, automatically returns to vacuum holding at the end; digital display of safety temperature.

M. Equipped with multi-level over-temperature protection, effectively prevents temperature control failure and enhances accuracy of protection.

N. Control panel adopts centralized touchscreen operation, convenient and reliable control. Program controller adopts PLC control, stable and reliable operation.

O. The two-barrel oven is independently controlled, can set total baking time, cycle time, vacuum time, drying time separately. After setting parameters, pressing the auto button will enter the automatic baking program. When the baking time is reached, the system will automatically shut down. If the temperature exceeds the safety limit, it will automatically alarm, the red indicator light turns on, heating stops, and the alarm information is displayed on the screen.

P. During normal operation, fault warnings and causes can be displayed on the screen in real-time.

4. Technical Specifications

No.	Item	Specification
1	Heating Principle	Independently heated dual-barrel external hot air circulation
2	Power Supply	380V 50Hz 12KW
3	Gas Supply	Dry gas: 0.1–0.2MPa / Vacuum: -0.095 to -0.1MPa / Compressed air: 0.4–0.5MPa
4	External Interface Specs	Vacuum: DN20 hose barb; Nitrogen: ∅12 air pipe; Compressed air: ∅8 air pipe
4	Temperature Range	Room temperature to 150°C
5	Vacuum Level	At -0.09 to -0.1MPa, pressure-holding loss ≤ 3% in 24H
6	Display Error	Difference between set value and stabilized value ≤ ±0.5°C
7	Insulation Performance	Outer wall temperature ≤ 45°C (excluding glass doors)
8	Internal Temperature Variance	At 50mm from chamber wall: ≤ ±3.5°C under vacuum; ≤ ±2.5°C at atmospheric pressure
9	Temperature Crosstalk	≤30°C (adjacent layer heating to 100°C causes ≤30°C increase above ambient)
10	Response Time	30 minutes to 85°C on display; internal uniformity in 45–60 minutes
11	Chamber Size	ZRDB-210: ∅600 × 700 depth × 2 barrels

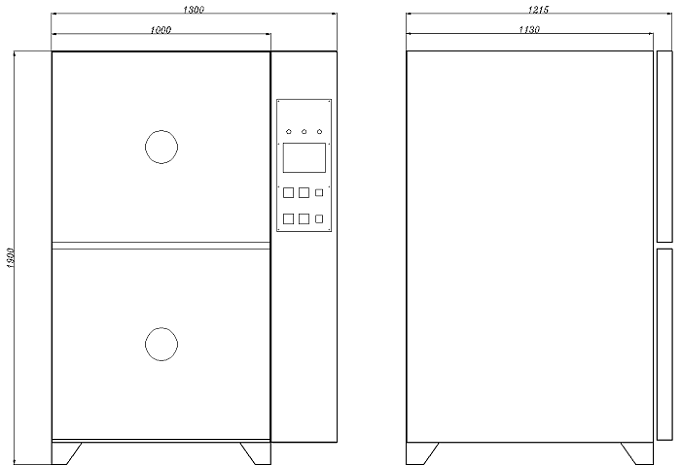

12	External Dimensions	ZRDB-210: 1900H × 1300W × 1215D (mm)

5. Electrical Configuration

No.	Item	Specification
1	PLC	Wecon (Fujian)
2	Touchscreen	7-inch LCD color screen, Wecon
3	Temperature Controller	Digital intelligent PID auto-calculation temp controller
4	Temperature Control Mode	PID + SSR (thyristor), Shanghai Yatai
5	Over-Temperature Prot.	Shanghai Yatai temp controller
6	Temperature Sensor	K-type thermocouple
7	Vacuum Gauge	Digital vacuum gauge, ±101.0kPa, Jian Deng (Taiwan)
8	Vacuum/Nitrogen Valves	High vacuum gate valve
9	Alarm	Audio-visual alarm
10	Heating Tubes	Best
11	Control Mode	PLC automatic program control, 7-inch color screen HMI

6. Six-Fold Safety Protection

1. Explosion-proof door, never ruptures; equipped with overpressure self-release to protect operator safety.

2. Dual-layer over-temperature protection in working chamber (to protect products); power is cut off automatically when over-temperature is detected.

3. Over-current and short circuit protection for control system.

4. Over-current and short circuit protection for heating tubes and motors.

5. When chamber is overcharged, the system will automatically shut off nitrogen & dry gas inlets, saving gas and reducing losses.

6. Independent alarm system: audio-visual warning is issued when baking time is reached, alerting operators.

7. Installation Conditions

A. Oven must be installed ≥1500mm away from front wall, and ≥300mm away from left, right, and rear walls. The user must provide an independent power switch and be responsible for external power connection.

B. Installation Site Conditions (provided by customer):

1. Power Supply: Three-phase five-wire, frequency: 50 ±1Hz

2. Vacuum Requirement: -0.1MPa, vacuum pipe DN20 hose barb

3. Nitrogen: Pressure 0.1–0.2MPa, nitrogen pipe ∅12 air pipe

4. Compressed Air: 0.4–0.5MPa, ∅8 air pipe

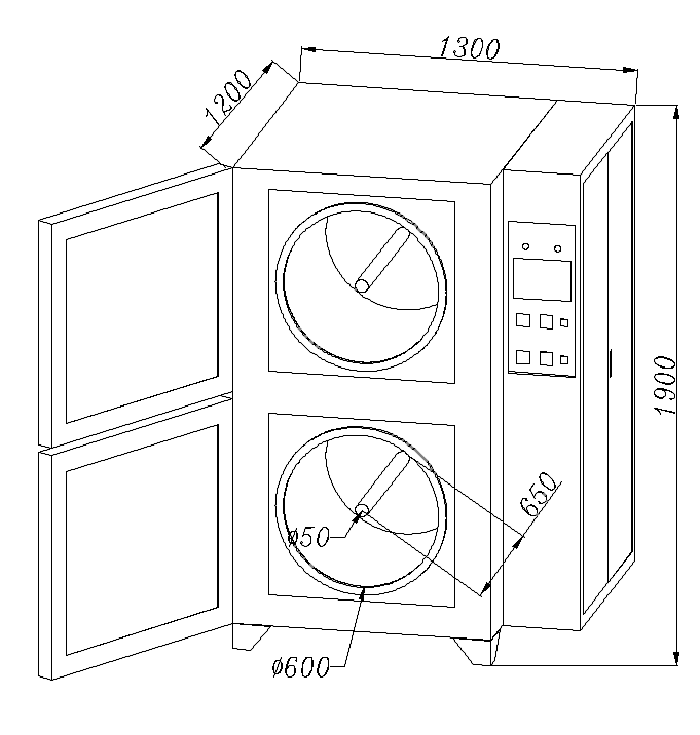

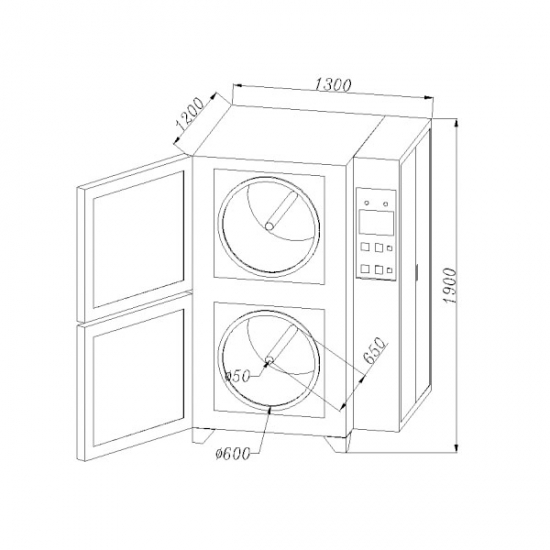

Detailed Images
