Single-Zone 1200°C Vertical Tube Furnace

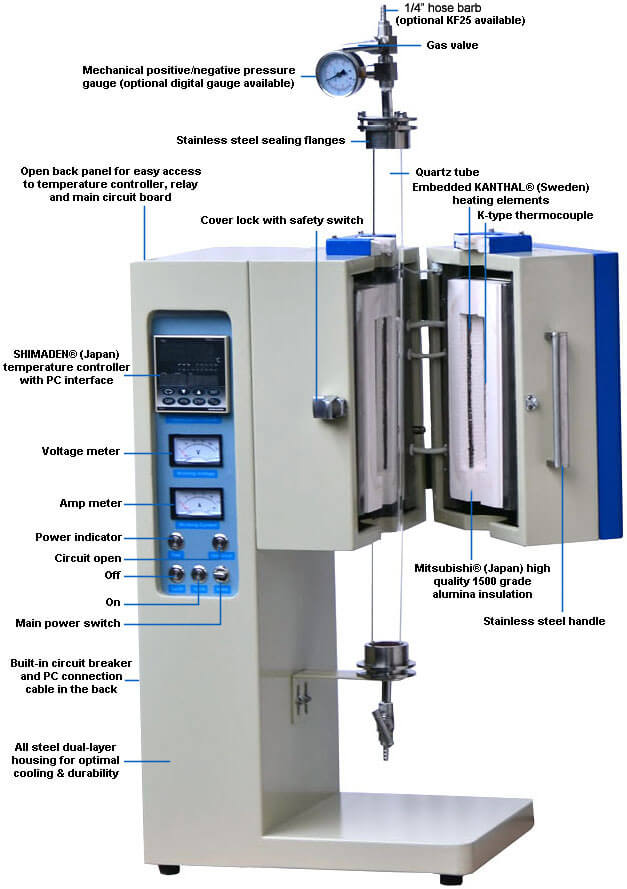

LITH-Verticalfurnace split tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi(Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant.

Features

1. Compact, portable and lightweight design.

2. Split furnace chamber for fast and easy tube access.

3. Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

4. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

5. Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

6. Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

7. Built-in computer interface.

8. Long life type K thermocouple.

Safety

1. Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2. Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

General specifications

Electrical requirements	110-240VAC, 50/60 Hz, single phase
Tube material	Quartz
Maximum/constant working temperature	1200°C / 1100°C (1000°C constant temperature under vacuum)
Rated vacuum pressure	0.001 Pa / 0.0075 millitorr / 0.0000 mbar
Rated positive pressure	0.02 MPa / 150 torr / 3 psi
Heating element type	Kanthal (Sweden) resistance coil wire (except for 50mm OD model)
Thermo couple type	K
Refractory lining	Mitsubishi (Japan) high quality 1500 grade fiber alumina
Temperature controller	Shimaden fp93 (Japan) with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments)
Maximum heating & cooling rate	< 30°C / min
Heating vs constant zone length	15.5" (8" for 50mm OD model) / 8" (4" for 50mm OD model)
Temperature controller precision	+/- 1°C
Vacuum sealing flange kit	Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
CE compliance	Yes

Size comparison

Tube size (ODxlength)	50mm x 700mm	60mm x 1m	80mm x 1m	100mm x 1m
Maximum output	1.5 kW (110V)	2.5 kW	3.5 kW	3.5 kW
Unit dimensions (WxDxH)	16x15x30"	21x18x43"	21x18x43"	22x20x45"
Shipping dimensions (LxWxH)	45x20x35"	50x25x40"	50x25x40"	52x25x40"
Shipping weight (Lb)	250	400	430	470

Standard Package

Part description	Quantity	Part image
vertical split tube furnace	1 pc
Quartz tube	2 pcs
Stainless steel vacuum sealing flanges w/ pressure meter	1 set
Alumina ceramic thermal block	1 pair
Thermal gloves	1 pair
Spare fuse	1 pc
USB/RS485 computer interface kit	1 set
