Single-Zone 1700°C Max. Tube Furnace With Alumina Tube And Sealing Flanges

Single-Zone 1700°C Max. Tube Furnace With Alumina Tube And Sealing Flanges

  • ItemNo :

    LITH-1700Cfurnace
  • MOQ :

    1
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

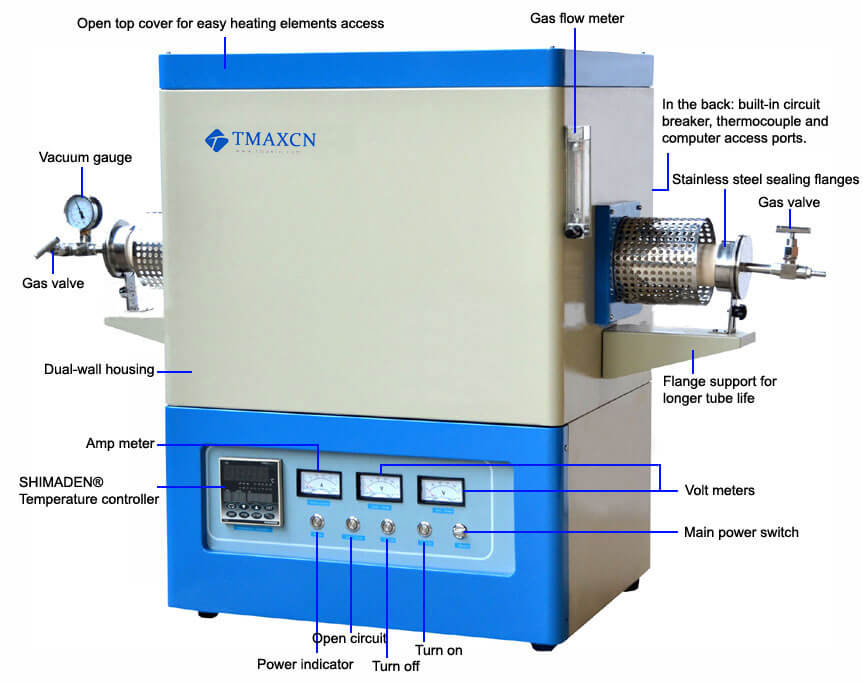

Single-Zone 1700°C Tube Furnace With Alumina Tube And Sealing Flanges


LITH-1700Cfurnace tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by
Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.All our furnaces are CE compliant.



Features

1       Compact, portable and lightweight design.

2        Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

3        Dual flanges support provides better sealing and longer tube life.

4        Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

5        Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

6        Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

7        Built-in computer interface.

8        Long life type B thermocouple.

Safety

1        Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2        Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.



General specifications

 Electrical requirements

 110-240VAC, 50/60 Hz, single phase

 Tube material

 High purity (99%) Al2O3 alumina

 Min working temperature

 300°C (572°F) Recommend at least 800°C for longer heating element life

 Max/constant working temperatures

 1700°C (3092°F) / 1600°C (2912°F)

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Refractory lining

 Mitsubishi (Japan) high quality 1800 grade fiber alumina

 Heating element / thermocouple type

 Molybdenum Silicide (MoSi2) / B-type

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (i.e. 4 x 10 segments or 2 x 20 segments).

 Max heating & cooling rate

 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)

 Heating vs constant zone length

 12" / 6"

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one
 vacuum gauge, two valves and four thermal ceramic blocks.

 CE compliance

 Yes


Size comparison

 Tube size

 60mmOD x 1m L

 100mmOD x 1m L

 120mmOD x 1m L

 Installed heating element

 8

 8

 8

 Maximum output

 5 kW

 6 kW

 7 kW

 Furnace dimensions (LxWxH)

 25 x 19 x 27"

 25 x 19 x 27"

 25 x 19 x 27"

 Shipping dimensions (LxWxH)

 47 x 35 x 39"

 47 x 35 x 39"

 47 x 35 x 39"

 Shipping weight (Lb)

 500

 550

 580



Standard Package

Part description


Quantity


Part image


tube furnace

 1 pc



 Stainless steel vacuum sealing flange set w/ pressure meter

 1 set



 Alumina tube 1000mm length

1 pc



 Flow meter

 1 pc



 Spare heating element

2 pcs



 Stainless steel hook

 1 pc



 Alumina ceramic thermal block

 2 pairs



 Thermal gloves

 1 pair

 Spare fuse

2 pcs




Tube Furnace








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
