Multistation Dip Coating Machine For Metal process With Multi-Temperature for Thin Film Research
Product Overview

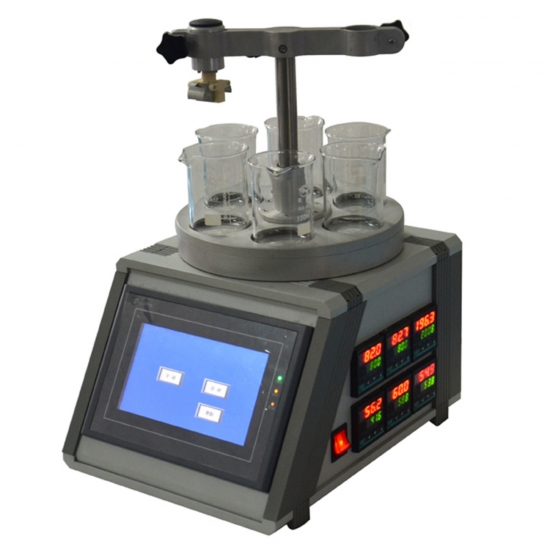

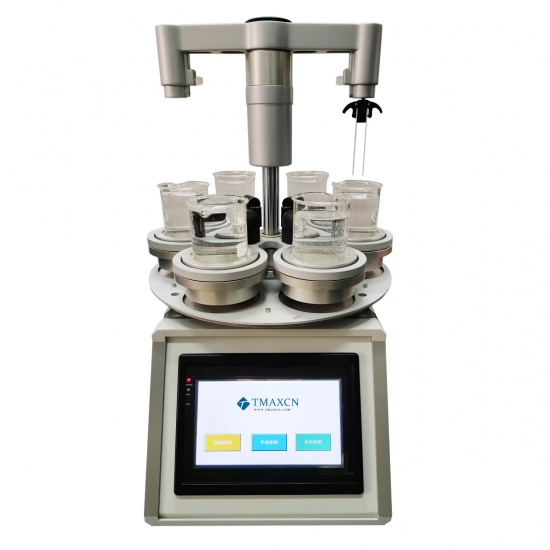

The TMAX-KJ06H six-station dip coater processes one sample at a time through programmable counterclockwise rotation. Samples are immersed in material-loaded beakers for preset durations before being lifted for drying, with both immersion and drying times being fully adjustable.
System Features
· Six independent workstations
· Counterclockwise sample rotation
· Programmable parameters (speed, time, temperature)
· Six individually controlled heating zones
· CE certified
· Space-saving compact design
· User-friendly operation suitable for beginners
· Easy maintenance and cleaning
The equipment must operate under the following conditions:
· Altitude: Below 1,000 m
· Temperature: 25°C ±15°C
· Humidity: 55%RH ±10%RH
|
Requirement |
Specification |
|
Water |
Not required |
|
Power |
AC 220V, 50Hz (with proper grounding) |
|
Gas |
Not required |
|
Workbench |
Dimensions: 500mm × 800mm × 700mm, bearing capacity ≥50kg |
|
Ventilation |
Not required |
|
Parameter |
Specification |
|
Power Supply |
220V, 1200W |
|
Stirring Speed |
1–5 rpm/s (configurable per station) |
|
Lifting Speed (Automatic) |
1–400 mm/min |
|
Lifting Speed (Manual) |
1–150 mm/min |
|
Lifting Cycles |
1–45 times |
|
Immersion & Drying Time Setting |
1–999s |
|
Stroke Setting |
1–80mm |
|
Material Beaker Capacity |
150ml |
|
Sample Dimensions |
75mm × 25mm × 2mm |
|
Effective Immersion Length |
60mm |
|
Heating Temperature |
RT–80°C (individually adjustable per station) |
· Dimensions: 260mm × 340mm × 420mm
· Weight: 15kg

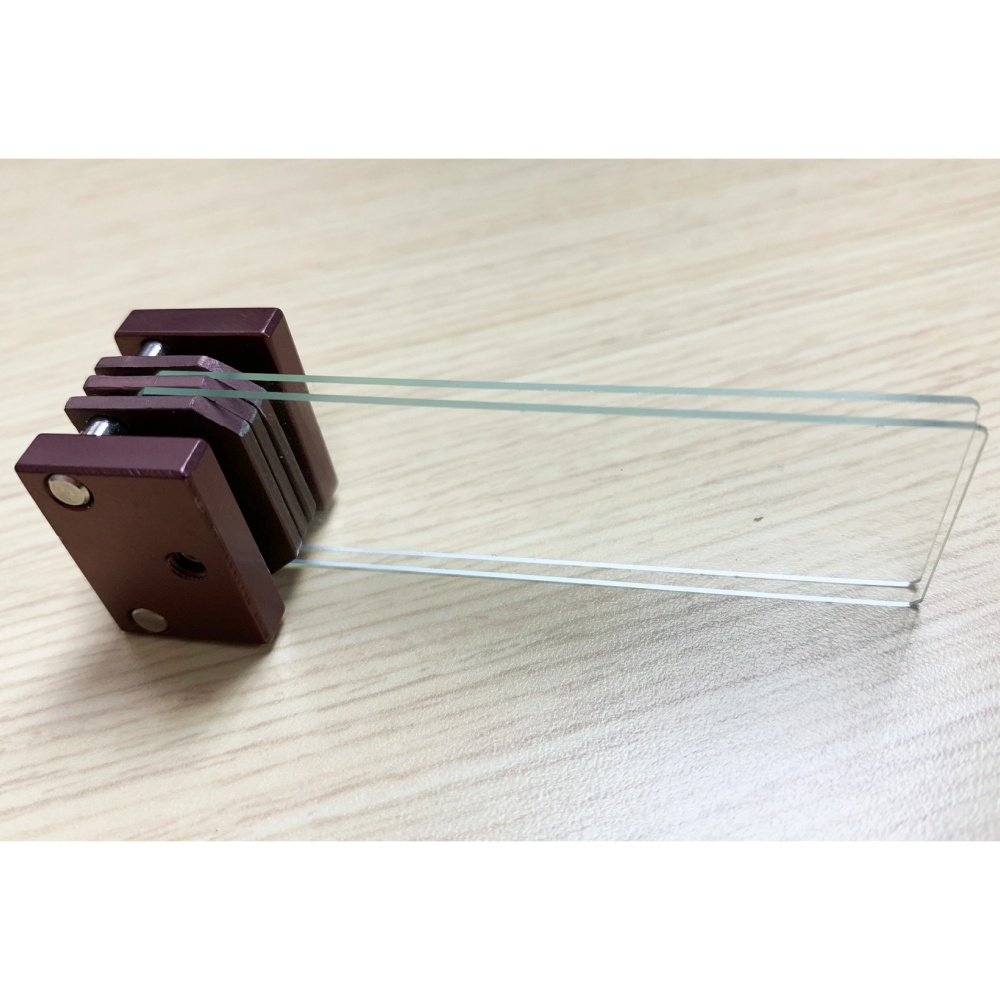

1. Single-sample holder ×1
2. Material beakers ×6
· Double-sample holder
· Other custom holders
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
