Module Double Side Resistance Welding Machine

ItemNo :
LITH-PEW12-D-01
MOQ :
1
Place of Origin:
China
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

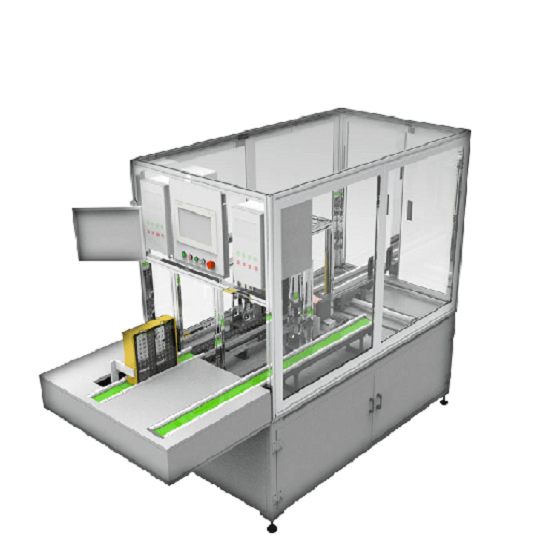

Module Double Side Resistance Welding Machine

Products Description

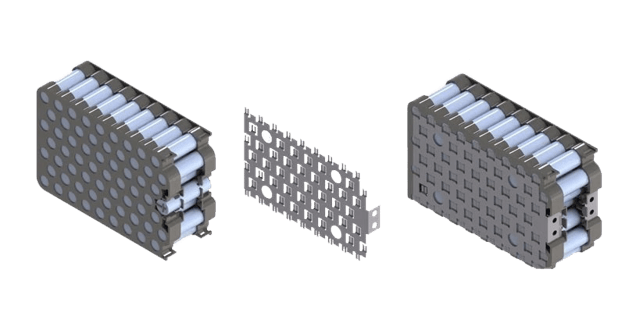

The resistance welding equipment for 18650, 21700, 26650 and other cylindrical cell modules and aluminum nickel composite sheet resistance welding, double-sided positive and negative electrodes at the same time spot welding, 1.2 seconds can complete a welding, can form positive and negative 8 solder joints, high efficiency, good quality, through the servo module high-speed movement, loading and unloading switching, can be connected with the conveyor line to the front and back.

Performance Characteristics

1. It can realize convex spot welding, pointer welding and eccentric electrode welding;

2. With high precision, it can realize the simultaneous welding of positive and negative electrodes of the cell;

3. The average beat is 1.2s/pcs and the work efficiency is high;

4. It can realize 4-point welding at the same time, and can travel 8 positive and negative nuggets at one time;

5. Real time monitoring of welding to ensure welding quality.

Technical Parameter

Model Number

LITH-PEW12-D-01

Beat

1.2s/pcs

Voltage Source

220V 50HZ

Batteries

18650/21700/22650 ect.

Power

1.5KW

Table Height

850mm

Pressure

6kgf/cm²

Dimensions

260011002000(mm)

Module Resistance Welding Machine

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Module Resistance Welding Machine Module Resistance Equipment Resistance Welding Machine for Cylindrical Cell Module

Previous: Cylindrical Battery Membrane Machine - Large Battery
Next : Cylindrical Battery Sorting Machine - 8 Grades

Model Number	LITH-PEW12-D-01	Beat	1.2s/pcs
Voltage Source	220V 50HZ	Batteries	18650/21700/22650 ect.
Power	1.5KW	Table Height	850mm
Pressure	6kgf/cm²	Dimensions	260011002000(mm)
