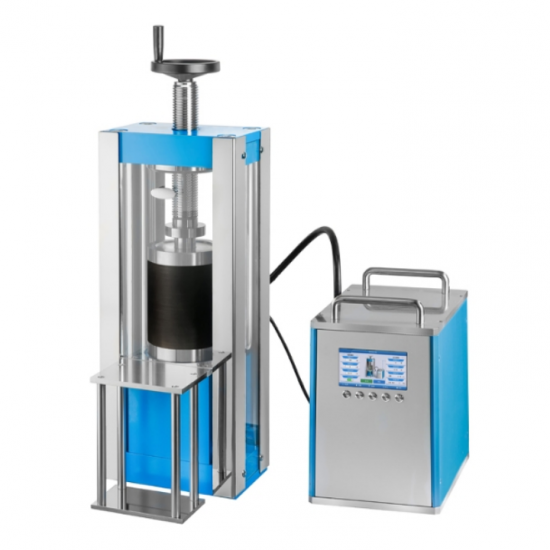

Large Tonnage Split Type Automatic High Temperature Hot Isostatic Tablet Press
Cavity mold diagram
Cavity mold operation diagram
Operation interface (Standard mode)
Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.
Pressurization button: Press according to the parameters set on the interface.
Stop button: Press the stop button during the pressurization process to stop the pressurization.
Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.
Timing switch: The timing function can be turned on and off.
Operation interface (Advanced mode)
Start button: It can be pressurized according to a multi-stage pressurization program.
Stop button: During the pressurization process, you can stop the pressurization process.
Setting button: Click the Settings button to enter the Settings menu.
Operation interface (Advanced mode)
List/Curve: The current display state can be switched between list and curve.
Setting interface
Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.
Program Settings:Multi-stage pressure procedures and pressure holding times can be set.
Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.
Data management: Previously saved data records can be invoked and modified..
System Settings: Administrators can set various parameters, enter the password "666"
Setting interface
Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.
Invoke button: Invoke the set parameters to the automatic operation interface for pressure.
Save button: Save the set parameters to the database for later invocation.
Back button: Returns to the Settings screen
Operation procedure
Technical parameter
|
Instrument type |
PCD-100R |
|
Pressure range |
0-100T |
|
Piston diameter |
Φ200mm(d) |
|
Pressurization process |
Programmed pressure - programmed pressure retention - timed pressure relief |
|
Holding time |
1 s to ∞ s |
|
Pressure conversion |
The program automatically converts the pressure of the sample |
|
Liquid crystal display |
7 inch LCD screen |
|
Heating temperature |
Room temperature -200.0℃ |
|
Isostatic pressure |
300MPa |
|
Isostatic pressure chamber |
Φ 60 x150 (MXN) |
|
Cylinder stroke |
50mm(T) |
|
Equipment power supply |
3000W(220V/110 can be customized) |
|
Equipment weight |
680Kg |
|
Equipment size |
980x900x1300(LXWXH) |
|
Powder tablet press size diagram |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
