ItemNo :
LITH-DG200WMOQ :
1Compliance:
CE CertifiedWarranty:
2 yearsDelivery Time:
5 days
Application

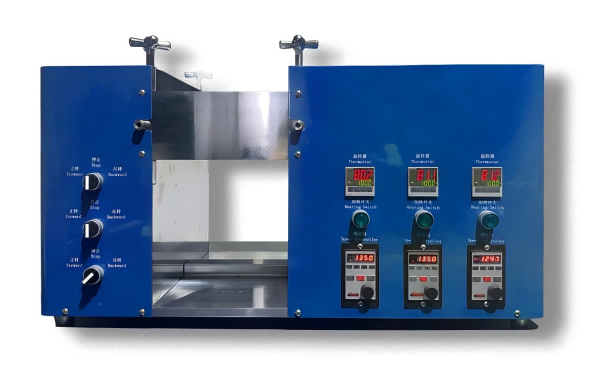

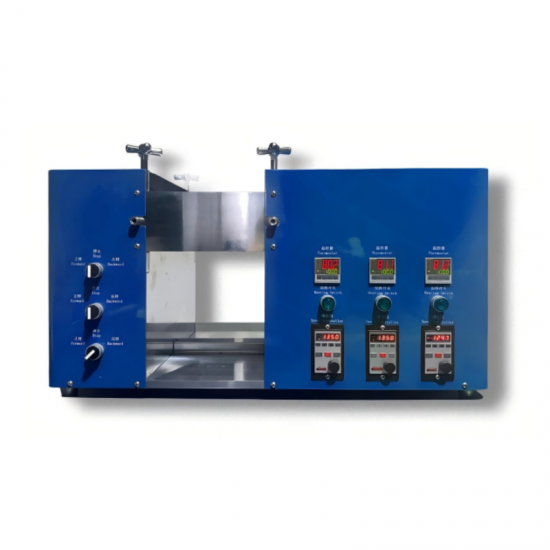

The three-roll electric heated horizontal rolling machine is designed for precision rolling of pastes, graphite films/sheets, PTFE, battery electrodes, shielding materials (copper foil, aluminum foil, nickel mesh), and other non-ferrous metal materials. It is particularly suitable for laboratory-scale processing of battery materials, as well as small-scale rolling of precious metals such as gold and silver, and non-ferrous metals like copper and aluminum under controlled heating conditions. The machine allows adjustable rolling thickness and is easy to operate, making it ideal for thinning and increasing the density of lithium battery electrodes for clean energy applications.
Key Features
· High-hardness rollers, with hard chrome plating, achieving HRC62 hardness and rust prevention.
· High rolling precision, with roller cylindricity ≤ ±2μm.

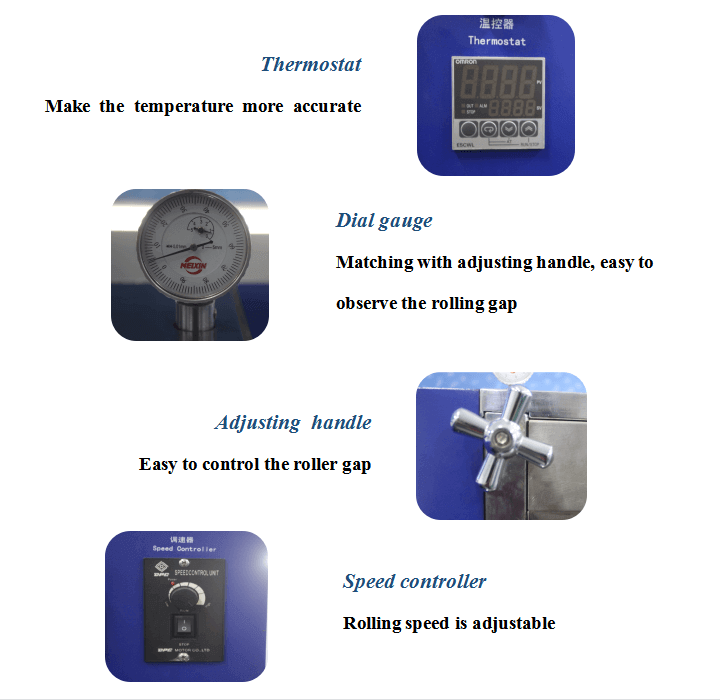

· Inclined wedge gap adjustment system, ensuring self-locking stability and high adjustment accuracy.
· Horizontal design, facilitating easy material feeding and rolling.
·Three independently controlled motors, making it suitable for dry-process battery material preparation.
· Gear-driven system, enabling precise calendering.
· Adjustable rolling thickness and speed, with a sleek and modern design.
· Electric rolling system, supporting automated operation with forward and reverse rolling.
· Compact size, ensuring ease of use and operational flexibility.
Technical Specifications
|
Parameter |
Specification |
|
Roller Diameter |
Φ96mm |
|
Roller Surface Hardness |
HRC62 or above |
|
Roller Surface Finish |
0.4 or above |
|
Rolling Thickness |
0-2mm |
|
Pressing Width |
0-200mm |
|
Roller Placement |
Horizontal |
|
Rolling Temperature |
Up to 200°C |
|
Feeding Speed |
0-10mm/s |
|
Power Supply |
AC220V / 50Hz |
|
Power Consumption |
720W |
|
Machine Dimensions |
L830mm × W500mm × H480mm |
|
Machine Weight |
150kg |
Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer
Related Machine
|
|
|
|
|
|
|
Electrode Slitting |
Welding Power: 80-6500W optional |
Lab cylindrical cell grooving machine |
Manual Sealing or Pneumatic Sealing Machine |
8 Channel Battery Tester
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
