FuelCellsEtc's ELAT® LT1400 is a carbon cloth Gas Diffusion Layer (GDL) with a carbon microporous layer. ELAT has been engineered to have state-of-the-art performance over a wide range of operating conditions. Thickness is 454 um.
• Fuel Cells
• Electrolysis
• Flow Through Batteries
• Water Clean-up Electrochemistry
| Gas Diffusion Layer Properties | |
| Material Type | Woven Carbon Fiber |
| Thickness | 0.454 mm (454 microns) |
| Basic Weight (g/m²) | 170 |
| Bulk Density | 0.377 g/cc |
| Air Permeability (s) | 0.104 L/(m²*sec*Pa) |
| Porosity (%) | 80% |
| Electrical Resistivity (through plane) | 0.17 @ 400 lb load using a 100 cm² sample |
| Carbon Content (%) | 99.5% in woven, variable in coating for hydrophobicity |
| Microporous Layer |
Yes, on one side |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.

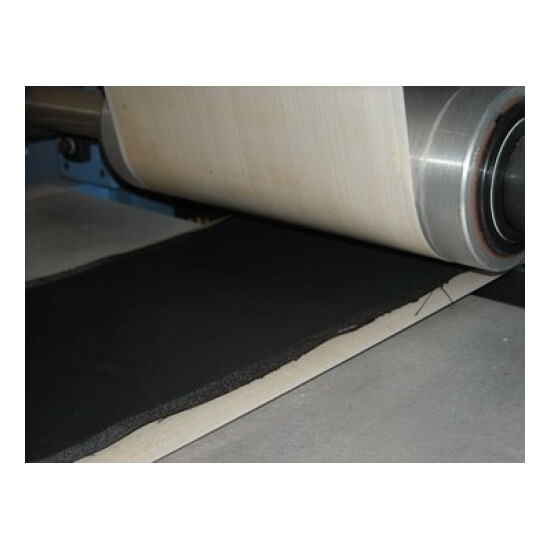

CarbonFoam is a carbon cloth gas diffusion layer (GDL) coated with a microporous layer. Such a gas diffusion layer is engineered to have state-of-the-art performance over a wide range of operating conditions and it can serve as a catalyst support for organic electrochemistry, metal-air battery, fuel cells batteries, electrolyzers and more.
