Louis@lithmachine.comAvCarb Carbon Paper GDS1120 For Fuel Cell Applications
AvCarb Material Solution’s series of AvCarb Gas Diffusion Systems combine BMP's proprietary carbon fiber paper, a PTFE treatment, and micro-porous layer coating, each designed for the rigorous demands of specific fuel cell applications such as PEMFC, DMFC, and PAFC. AvCarb Gas Diffusion Systems are based upon carbon fiber paper. AvCarb carbon fabrics and AvCarb Molded Graphite Laminates treated with PTFE and micro-porous layers for fuel cell applications are also available.
AvCarb P50 is the base substrate used in GDS1120.

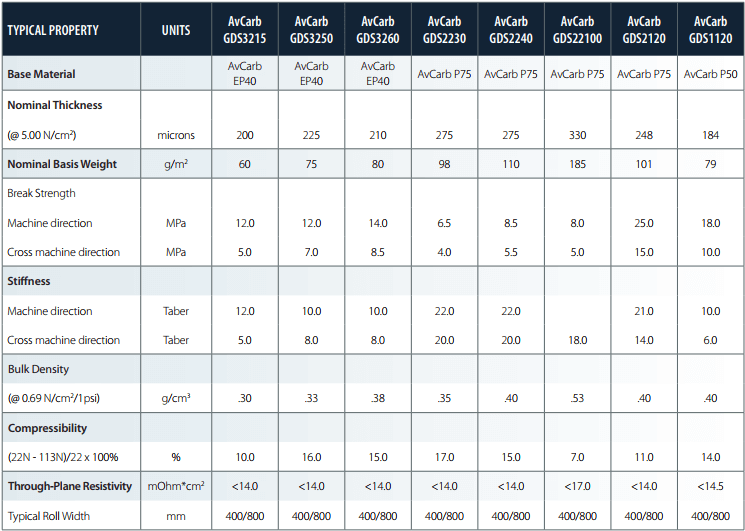

| Material Type | Carbon Fiber Paper |
| Base Material | AvCarb P50 |
| Nominal Thickness (@ 5.00 N/cm²) | .184 mm (184 microns) |
| Nominal Base Weight | 79 g/m² |
| Break Strength machine direction | 18 MPa |
| Break Strength cross machine direction | 10 MPa |
| Stiffness machine direction | 10.0 Taber |
| Stiffness cross machine direction | 6.0 Taber |
| Bulk Density (@ 0.68 N/cm² / 1psi) | 0.40 g/cm3 |
| Compressibility ((22N - 113N)/22 x 100%) | 14.0% |
| Through-Plane Resistivity | <14.5 mOhm*cm² |
| PTFE Treatment | Yes |
| Microporous Layer (MPL) | Yes, on one side |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
CarbonFoam is a carbon cloth gas diffusion layer (GDL) coated with a microporous layer. Such a gas diffusion layer is engineered to have state-of-the-art performance over a wide range of operating conditions and it can serve as a catalyst support for organic electrochemistry, metal-air battery, fuel cells batteries, electrolyzers and more.
