Double Workstation Battery Electrode Stacker for Prismatic Cell Manufacturing
1. Equipment Overview
1.1 Function Description

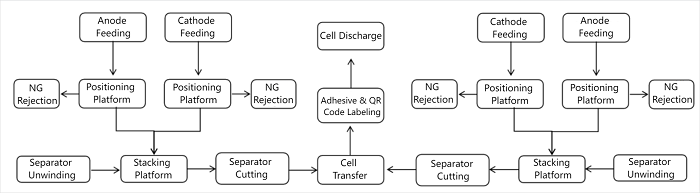

1.2 Process Flow Diagram

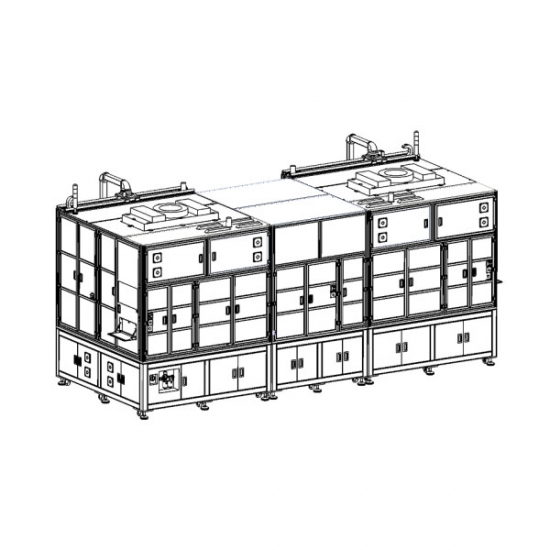

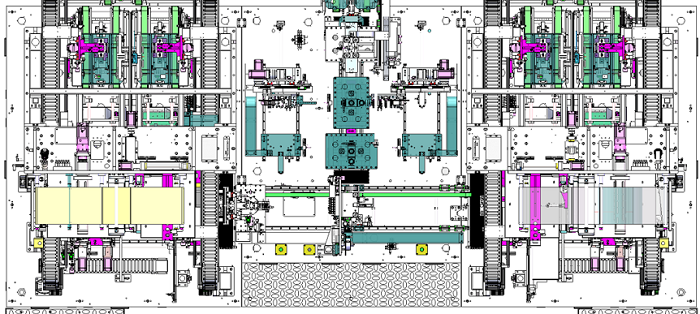

1.3 System Layout
Note: The dimensions in the diagram are for reference only. Please refer to the table below for detailed specifications.
Length (mm)
Width (mm)
Height (mm)
Remarks
4800
2400
2500
Reference size

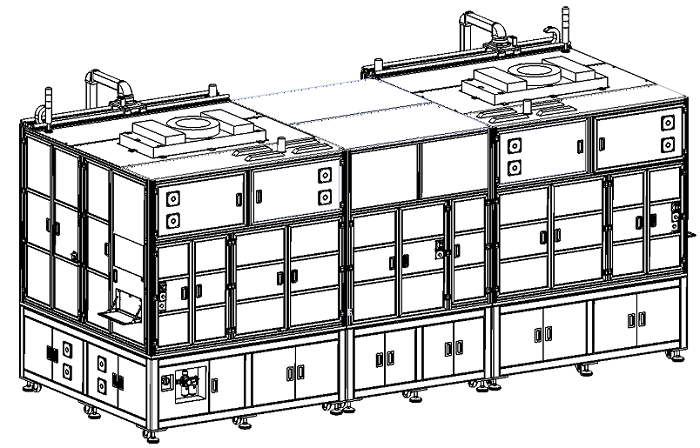

1.4 Equipment Appearance
2. Product Specifications
2.1 Incoming Material Specifications
Material
Form
Length (mm)
Width (mm)
Thickness (μm)
Inner Dia. (mm)
Max Outer Dia. (mm)
Cathode
Sheet
60–110
110–180
100–200
—
—
Anode
Sheet
60–110
110–180
80–180
—
—
Cathode Tab
—
10–35
10–50
7–12
—
—
Anode Tab
—
10–35
10–50
6–10
—
—
Separator
Roll
—
60–110
10–30
φ76.2
φ350
Tape
Roll
—
10–30
15–50
φ76.2
φ150
Remarks:
2.2 Product Dimensions
Item
Spec
Cell
Thickness H (mm)
10–30
Width W (mm)
110–180
Length L (mm)
60–110
Tab Length L1 (mm)
≤35
Tab Width (mm)
≤40
Tab Direction
Same Side

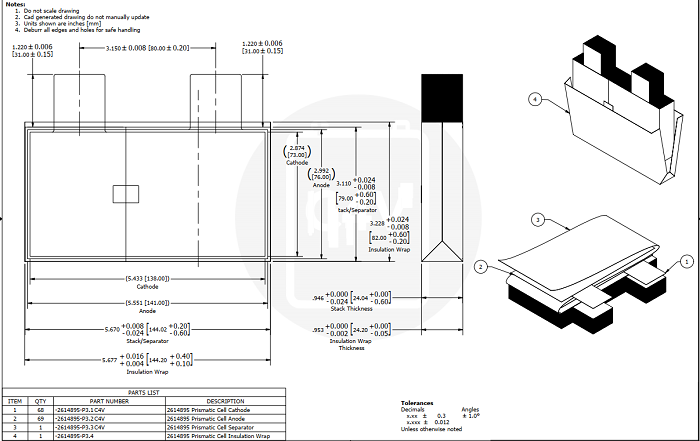

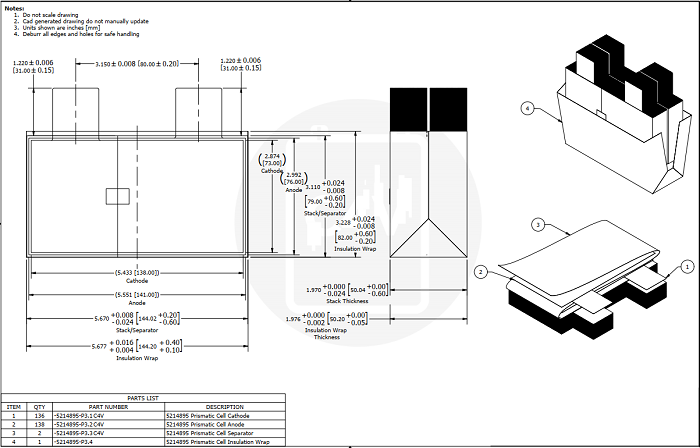

2.3 Benchmark Cells
Benchmark 1: 30AH cell (20PPM) - 3.9V30AH, 68 cathodes, 69 anodes
Benchmark 2: 60AH cell (10PPM) - 3.9V60AH, 136 cathodes, 138 anodes
3. Equipment Technical Capabilities
Item
Parameter
Production Efficiency
Whole machine: ≥0.4PPM (Benchmark 1)
Single station stacking speed ≤1.8s/pcs
Auxiliary time: ≤25s
Yield
≥99% (machine-caused defects only)
Utilization Rate
≥98% (machine-related downtime only)
Power Supply
380VAC±8%, 3-phase 5-wire, 50Hz
Power
40KW
Compressed Air
0.5–0.7Mpa
Equipment Weight
Approx. 5000kg; Floor load ≥600Kg/m²
Cathode-Anode Center Alignment
≤±0.3mm
Separator-Anode Center Alignment
Adjacent ≤±0.3mm, Overall ≤±0.5mm
Stacked Cell Alignment Accuracy
≤±0.5mm
Alignment CPK
≥1.33
4. Configuration List
No.
Module Name
Qty
Description
Configuration
1
Feeding Unit
2
1. Magazine positioning accuracy: ±1mm;
2. Positive/negative trays with foolproofing;
3. Anti-double-sheet and dust removal;
4. Connected to logistics line for auto-feeding and empty tray return.
Standard
2
CCD Alignment Platform
4
Positioning accuracy: ±0.1mm;
Positioning method: CCD alignment.
Standard
3
Electrode Transfer Robot
4
X-axis positioning accuracy: ±0.02mm.
Standard
4
Separator Unwinding
2
Deviation correction stroke: ±15mm;
Correction accuracy: ±0.1mm;
Max roll dia.: ≤Φ350mm.
Standard
5
Stacking Table
2
Stack thickness: 10–30mm;
Stacking method: Z-fold.
Standard
6
Separator Cutting Unit
2
Cutting method: hot cut;
Cutter lifespan: ≥100,000 times;
Precision: ±0.3/300mm.
Standard
7
Stacked Cell Clamp
1
Translation accuracy: ±0.05mm.
Standard
8
QR Code Tape Unit
1
Tape width: 10–30mm;
Tape roll dia.: ≤150mm;Adhesive position accuracy: ±1mm;
Cutter lifespan: ≥200,000 times.
Optional
9
Side Tape Clamp Unit
1
Translation accuracy: ±0.1mm.
Optional
10
Side Tape Unit
2
Tape width: 10–30mm;
Tape roll dia.: ≤150mm;
Position accuracy: ±0.5mm;
Cutter lifespan: ≥200,000 times;
Taping method: Finger-C;
Tape length: 20–80mm.
Optional
11
Cell Unloading Robot
1
Accuracy of placing cell into tray: ±0.5mm.
Standard
12
Dust Removal System
1
Demagnetization strength: ≥8000Gs;
Cleanroom level: ≥Class 100,000.
Standard
13
Operation System
1
Controlled via touchscreen.
Standard
14
Machine Frame Enclosure
1
Welded square tubing frame with paint finish (color per color chart).
Standard
15
Data Management System
1
Reserved for MES interface.
Optional
5. Configuration Component Descriptions
5.1 Electrode Sheet Feeding
5.1.1 Function:
5.1.2 Configuration & Parameters:
1. Foolproof tray design: Positive/negative tray base plates have unique cutouts, with sensors to prevent incorrect loading. The machine will alarm if misloaded.
2. Custom adjustable tray bottom plates fit varying electrode sizes. Tray edge includes brush and air-blow systems to prevent double sheets.
3. One tray pickup position per stacking station for both cathode and anode; tray capacity ≥1000 pcs.
4. Positive and negative tray zones are isolated to avoid cross-contamination by dust.

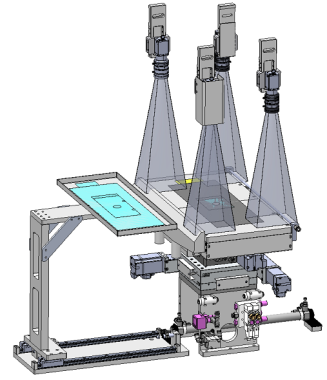

5.2 CCD Alignment Platform
5.2.1 Function:
5.2.2 Configuration & Parameters:
1. CCD vision system with backlight underneath the platform.
2. Vacuum suction plates are used during alignment to prevent edge damage or powder drop.
3. 3-axis correction (X, Y, R) via XYZ modules; accuracy ±0.1mm; stroke: X ±10mm, Y ±10mm, R ±5°.
4. Positive pressure blow and negative pressure suction on both sides maintain surface cleanliness.
5. Ultrasonic dual-sheet detection to identify absence or excess of electrodes. Alarm is triggered for double sheets and operation resumes after removal.
6. NG electrode sheets are auto-rejected. Repeated failures trigger alarm; count threshold is adjustable.
7. All inspection data is stored in the IPC and can be uploaded to MES.

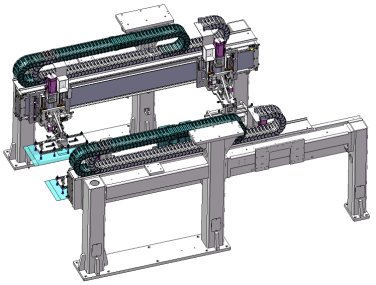

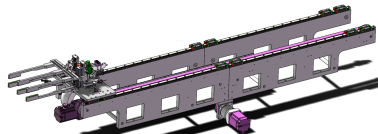

5.3 Electrode Transfer Robot
5.3.1 Function:
5.3.2 Configuration & Parameters:
1. Cathode/anode robots driven by linear modules for high-speed, precise transfer; positioning accuracy ±0.02mm.
2. Z-axis motion by cylinder for inner/outer suction arms, enabling rapid, synchronized movement.
3. Pressure switches monitor vacuum suction; abnormal vacuum triggers alarm and stops the machine.
4. Outer suction arms equipped with high-frequency shake to prevent multi-sheet pick-up.
5. Inner suction arms use silicone nozzles and anti-static foam for secure and non-damaging pick-up.
5.4 Separator Unwinding
5.4.1 Function:
5.4.2 Configuration and Parameters:
1. Utilizes a 3-inch single-axis air-expanding shaft unwinding system with a splicing platform and diameter calculation function; the splicing platform includes scale markings.
2. Tension mechanism uses a cylinder with a swing arm; tension range: 0–2000gf. The buffering roller is controlled by a cylinder and precision regulator to ensure quick response during separator switching and prevent roll-off.
3. Carbon fiber rollers, polished to Ra0.8+, prevent separator wrinkling.
4. Edge correction uses a high-sensitivity fiber optic sensor from Japan, detecting all types of separators regardless of transparency. A servo motor with precision screw executes correction with ±0.1mm precision, correction stroke: ±15mm.
5. Separator loading is aligned with the inner reference edge, mechanical positioning makes roll change convenient; max roll diameter: ≤Φ350mm.
6. Includes diameter calculation; auto alarm and stop when material is low.
7. Static eliminator installed near the stacking table prevents dust attraction and contamination.

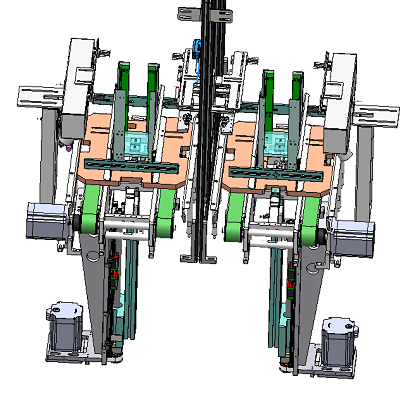

5.5 Stacking Table Assembly
5.5.1 Function:
5.5.2 Configuration and Parameters:
1. Servo motor + precision ball screw enable lifting with ±0.01mm precision; stacking height 10–30mm, stack count shown in real time on the HMI.
2. Pressing blades move forward/backward via cylinder; made of SUS440C high-hardness material (HRC > 50°) with arc transitions and mirror polish. Pressure adjustable by precision regulator; no sheet damage, powder drop, or separator wrinkling. Long-term use without deformation.
3. Horizontal movement by servo motor + precision ball screw, offering high responsiveness, speed, and accuracy; positioning precision: ±0.02mm.
4. Uses 4 sets of pressing blades to alternately hold sheets in place; ensures no misalignment or damage during Z-fold stacking.
5.6 Separator Cutting Mechanism
5.6.1 Function:
5.6.2 Configuration and Parameters:
1. Powered by cylinder; fast-heating thermal element, suitable for both normal and ceramic-coated separators. Equipped with a safety guard. Cut edges are free of cracks, curling, burrs, frays.
2. Cutter lifespan: ≥100,000 cycles.
3. Cuts flush with cell edge or extends 1–2mm beyond table edge.
4. Cutting straightness: ±0.3/300mm.

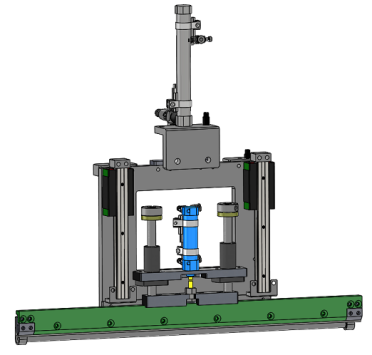

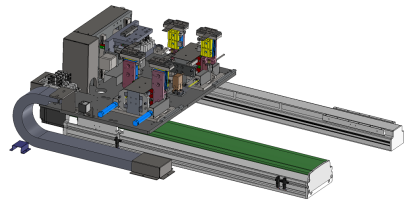

5.7 Stacking Discharge Clamp
5.7.1 Function:
5.7.2 Configuration and Parameters:
1. Uses thin-type parallel air gripper with adjustable design to fit varying cell thickness/width; easy format changeover.
2. Pressure regulated by precision pressure valve; non-metallic surfaces to prevent scratches.
3. Gripper includes positive air blow to prevent bottom separator sagging and wrinkling.
4. Horizontal movement via servo + timing belt, fast response, accurate positioning: ±0.05mm.

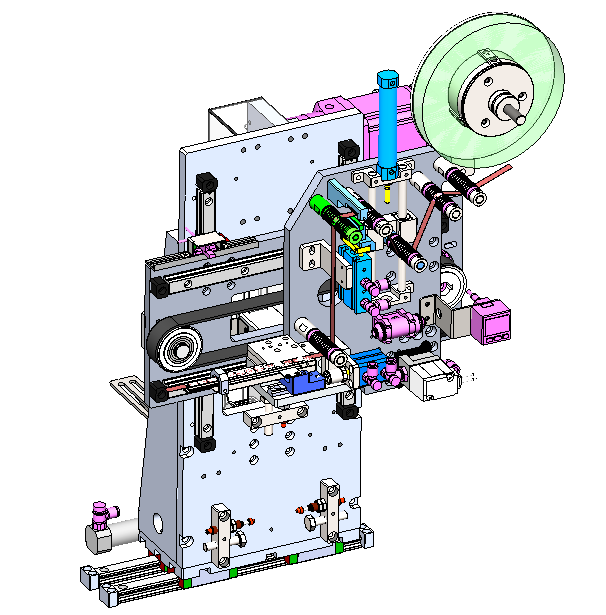

5.8 QR Code Labeling Mechanism
5.8.1 Function:
5.8.2 Configuration and Parameters:
1. Pulling by servo + timing belt, cutting via cylinder. Taping length/position precision: ±0.5mm. Tape width: 10–30mm.
2. Cutter made of SKH-9 high-speed steel, HRC > 50°, lifespan ≥200,000 cycles.
3. Pre-scan QR code before taping; defective codes are automatically discarded.
4. Uses quick-release chuck for easy roll replacement; inner diameter: 3 inch, max diameter: ≤Φ150mm. Alarm when tape runs out.

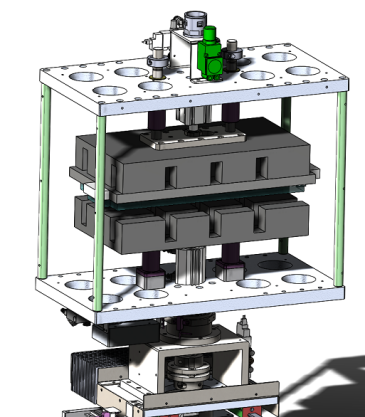

5.9 Adhesive Clamp Mechanism
5.9.1 Function:
5.9.2 Configuration and Parameters:
1. Clamps the cell tightly to ensure clean and secure adhesive application.
2. Clamp pressure regulated by precision pressure valve.
3. Clamp contact surface is non-metallic to avoid cell damage.
4. Clamp rotation driven by servo + precision reducer, includes mechanical pin positioning for accurate tape placement.
5. Horizontal movement via servo + timing belt, fast and accurate; positioning precision: ±0.05mm.

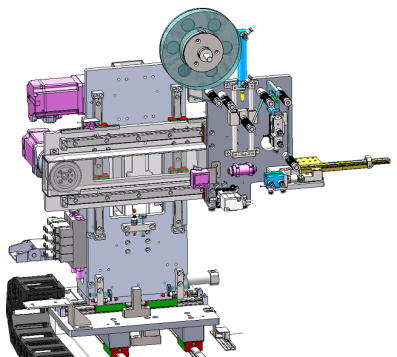

5.10 Side Tape Application Unit
5.10.1 Function:
This unit uses C-type taping, applying tape from bottom to top on the cell clamped in the adhesive fixture. It performs automatic tape pulling, cutting, and application around the four sides. The taped cell remains neat, firm, and undamaged on electrodes, tabs, or separator.
5.10.2 Configuration and Parameters:
1. After the cell is clamped by the tape fixture, it is moved to the taping unit. C-type taping is performed from bottom to top with automatic tape feeding, pulling, and cutting. The roller and tape feeding mechanisms are treated for anti-stick. The taped cell is neat, tight, and damage-free.
2. Z-axis and X-axis are driven by servo motor and synchronous belt, tape length and position accuracy ±0.5mm. Pulling length is adjustable from 20–60mm, tape width 10–30mm.
3. After taping, a cylinder pushes the tape cutter to cut the tape. Four-sided taping is supported; tape position and count can be set via touch screen and saved for future use.
4. Cutter is made of high-speed mold steel SKH-9, HRC50°+, sharp and consistent cutting, lifetime ≥200,000 times.
5. Quick-release chuck design for easy tape replacement; inner diameter 3 inches, max roll diameter ≤150mm, low tape alarm.

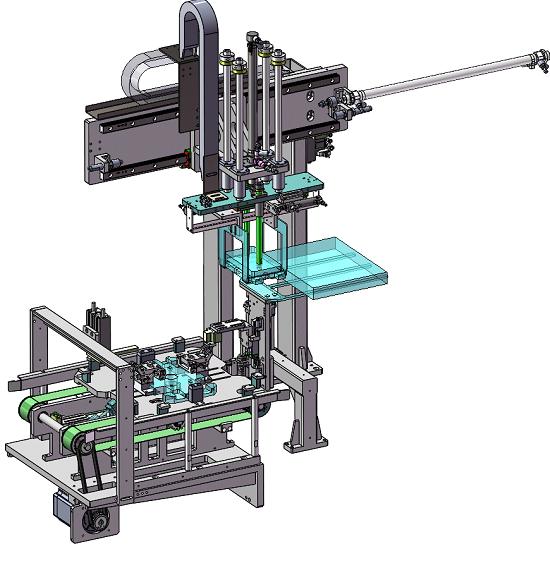

5.11 Cell Unloading Manipulator
5.11.1 Function:
The manipulator unloads the heat-pressed cells, transfers them to the tray without scratching the separator or damaging the cells.
5.11.2 Configuration and Parameters:
1. Clamp jaws driven by cylinders for fast response and precise positioning.
2. Jaws clamp the cell securely; pressure is adjustable via precision regulator to avoid cell surface damage.
3. After gripping the cell, it is placed into the tray, which then automatically opens. The tray is transferred via conveyor line.

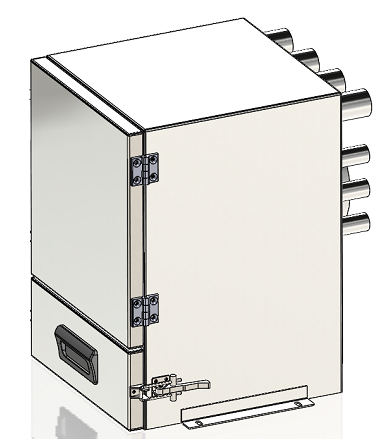

5.12 Dust Removal System
5.12.1 Function:
Configured with dust removal fan, connected to each station through pipelines. Negative pressure suction collects dust into the dust box. The equipment top is equipped with FFU clean air system to ensure positive pressure and cleanliness ≥100,000 class.
5.12.2 Configuration and Parameters:
1. Full-process dust control during die-cutting. Equipped with ionizing air dust removal on both sides of electrode sheets, and circular strong magnets with magnetic field >8000Gs.
2. Suction method: centrifugal fan connected to dust box; airflow ≥15m/s.
3. FFU filter units on the top deliver clean air into machine. With vacuum extractor, air circulates effectively.
4. Internal cleanliness ≥100,000 class.
5.13 Machine Frame and Enclosure
5.13.1 Function:
The frame is welded with square tubing and coated with paint. The enclosure combines aluminum profiles and acrylic panels for functional area separation and protection.
5.13.2 Configuration and Parameters:
1. Welded square tube frame with painted surface. Color as per client’s swatch.
2. Shielded with sheet metal/aluminum alloy + acrylic panels.
3. Sensor-equipped maintenance doors with interlocks prevent accidents.
4. Sealed structure with safety switch and emergency stop button.
5.14 Operation System (Data Management System)
5.14.1 Function:
5.14.2 Configuration and Parameters:
1. PLC-based system; touch screen and button operation.
2. User-friendly touch screen, adjustable parameters, interlock protection.
3. Data upload to MES; supports download of process parameters from MES. Manufacturer provides data interface as required.
4. Comprehensive fault alarm system; fault locations and component malfunctions displayed on the touch screen. Full I/O display.
5. Smooth operations with full alarm and anti-misoperation functions. Faults are shown clearly for quick troubleshooting.
6. Parameter settings are access-controlled. Password required for critical settings. At least two product parameter sets can be saved and recalled.
7. Four-level access control (admin, equipment, process, operator); auto logout after 3 mins of inactivity.
6. Equipment Energy Requirements
Item
Specification
Dimensions
L4800 x W2400 x H2500 (subject to actual model)
Weight / Load
Approx. 5000Kg; >600Kg/m²
Color
As per customer-supplied color sample
Power Supply
AC380V 3-phase; Voltage fluctuation ±8%
Power
45KW
Compressed Air
0.5–0.7Mpa (5–7kgf/cm²), consumption 45m³/h
Vacuum
Built-in vacuum system
Ambient Temp.
5–40℃
Humidity
5–55％RH
Air / Dust
No salty, toxic or corrosive gases; free of conductive dust
Magnetic Field & Vibration
No magnetic interference; free of impact or perceptible vibration
7. Key Components and Consumables Configuration Table
7.1 Equipment Components Overview
No.
Name
Brand or Equivalent
Remarks
1
PLC Controller
Siemens
2
Servo Motor
Siemens
3
Stepper Motor
Oriental, Shinano, Leadshine
4
Pneumatic Components
SMC, Airtac, CKD, CHELIC
5
Magnetic Switch
SMC, Airtac, CKD
6
Solenoid Valve
SMC, Airtac
7
Ball Screw
THK, MISUMI, TBI, HIWIN
8
Linear Guide
HIWIN, CSK, MISUMI
9
Industrial Computer
Adlink, Advantech
10
CCD Vision System
Supersonic, Hikvision, OPT
11
Bearing
NSK, SKF, MISUMI
12
Dust Collector
Puhua, Huele or equivalent
13
Sensor
Panasonic
14
Fiber Optic Sensor
Panasonic
15
Reducer
Xinliyin, Zhongda
16
EPC Controller
Boxing, Timac
17
Touchscreen
Weintek, Fuji, Proface, Kunlun Tongtai
18
Relay
Omron, Siemens, Schneider
19
Power Supply
Siemens, Omron, Schneider, Meanwell
20
Circuit Breaker
Schneider, Siemens, ABB or equivalent
21
Photoelectric Switch
Omron, SICK, Keyence or equivalent
22
Vacuum Pump
Leybold, Aodopao, Zhongde
23
Tension Controller
MESSSYS, Boxing, Timac, Kaiduo
24
Contactor
Schneider, Siemens, ABB or equivalent
25
Electronic Scale
AND, Mettler, Hongweicheng
26
Timing Pulley / Belt
IHD, MISUMI or equivalent
27
Barcode Scanner
Keyence, Honeywell
7.2 Consumables Overview
No.
Name
Model / Spec
Manufacturer
Remarks
1
Dust Filter Cartridge
/
LITH
For fan
2
Separator Cutter
Customized
LITH
3
Side Tape Cutter
Customized
LITH
4
Inner Suction Cup
PAG-15
Market / Domestic
5
Outer Suction Cup
X7H-1070BC
Market / Domestic
7.3 Spare Parts Included (per unit)
No.
Name
Model / Spec
Qty
Manufacturer
Remarks
1
Photoelectric Switch
FC-SPX303Z
2
Jiazun / Domestic
2
Magnetic Switch
DMSG-20
2
Airtac / Taiwan
3
Suction Rod
X7H-1070BC
10
Market / Domestic
4
Suction Cup
PAG-15
10
Market / Domestic
5
Solenoid Valve
SY5120-5LZD-01
2
SMC / Japan
6
Side Tape Cutter
/
1
Customized
7
Separator Cutter
/
1
Customized
8
Hex Wrench Set
1.5-10MM (9 pcs)
1
EIGHT / Japan
9
Open-End Wrench Set
8 pcs
1
SATA / USA
10
Strong Magnet Screwdriver (Flat)
DG-03
1
ENGINEER / Japan
11
Strong Magnet Screwdriver (Philips)
DG-04
1
ENGINEER / Japan
12
Needle Nose Pliers
RML-150 / 6 inch 150mm
1
RUBICON / Japan
13
Diagonal Pliers
RD-150 / 6 inch 150mm
1
RUBICON / Japan
14
Flat-nose Pliers
8 inch
1
RUBICON / Japan
15
Toolbox
Metal, 2-layer 300x200x200
1
Market / Domestic
This dual-station stacking machine is mainly used for the "Z"-fold stacking process of prismatic battery cells. It stacks cathode sheets, anode sheets, and separators into a battery cell through the Z-fold stacking process, by side tape application, QR code labeling, and cell unloading into the next process. The equipment consists of the following components: material box feeding mechanism, cathode/anode alignment mechanism, electrode sheet transfer robot, separator unwinding unit, stacking table unit, separator hot-cut mechanism, cell transfer unit, adhesive tape application unit, QR code labeling unit, and cell unloading mechanism. It is used for fully automated production of pouch and prismatic cells.
(1) Electrode length refers to the direction of the tab, excluding the tab length.
(2) Electrode sheets should be free of significant powder drop and wavy edges; die-cutting error < 0.3mm.
(3) No obvious warping or adhesion between electrode sheets.
(4) Separator serpentine deviation: 1mm/1000mm.
The electrode trays are delivered to the machine via logistics line. Upon detection, the robotic arm starts automatically picking sheets from the tray.
The electrode picked from the tray is placed onto the alignment platform. CCD inspection and XYZ motion system performs secondary alignment to ensure stacking accuracy.
Driven by linear modules, the inner and outer suction arms move the electrode from tray → alignment platform → stacking table, coordinating with separator unwinding and stacking to complete Z-fold stacking.
The full roll separator is unwound continuously with tension control, buffering, and edge correction. Coordinated with the electrode sheet transfer robot and the reciprocating motion of the stacking table, Z-fold stacking is completed.
The electrode transfer robot places sheets into the stacking table. Pressing blades alternate to compress the sheets while the table switches between cathode and anode positions, completing Z-fold stacking.
Uses thermal cutting; a heating element rapidly heats to cut the separator after stacking.
Transfers finished cells from the stacking table to the separator cutting, tail winding, and taping station.
Automatically pulls, cuts, scans, and applies QR-coded tape to the cell surface. Automatically rejects defective QR codes.
Clamps the cell with upper and lower plates, by side adhesive application.
Control operation of each unit via touch screen interface.
Production Assembly Plant
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
Subscribe to us
ONLINE
Louis@lithmachine.com
+0086 15959378975
