Automatic Rotary Welding Head Single Side Spot Welding Machine for Battery Pack for Solar Light Battery

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Automatic Rotary Welding Head Single Side Spot Welding Machine for Battery Pack for Solar Light Battery Automatic Rotary Welding Head Single Side Spot Welding Machine for Battery Pack for Solar Light Battery

Automatic Rotary Welding Head Single Side Spot Welding Machine for Battery Pack for Solar Light Battery

  • ItemNo :

    LITH-ZW-20S
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

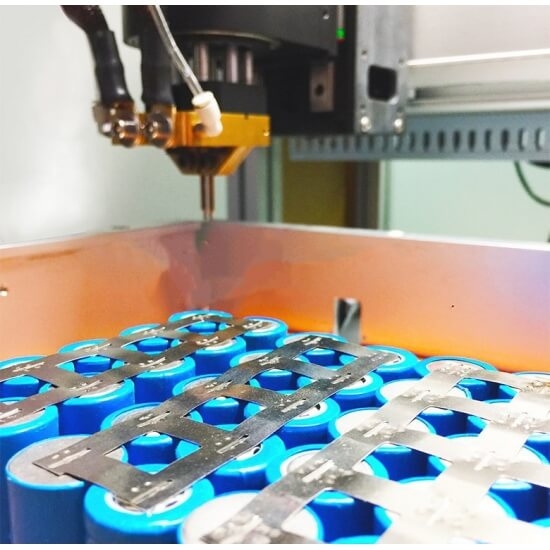

Automatic Rotary Welding Head Single Side Spot Welding Machine for Battery Pack for Solar Light Battery



APPLICATION

Photovoltaic, power batteries, lithium nickel hydride batteries and other batteries are connected with nickel alloy sheet, aluminum-nickel composite strip, wire and guide, household appliances parts and guide connection, hardware accessories, copper-silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.


FEATURE

1. Induce load voltage, control voltage by feedback, and realize high quality welding.

2. Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.

3. Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal.

(Welding time controlled in microseconds, continuous output mode)

4. Easy to change from low current to high current, suitable for precision welding.

5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.

6. The welding current rises with the time of electrification to ensure the welding effect.


ADVANTAGE

1. High stablity

2. Strong generalty

3. Production control

4. Long maintenance

5. Efficient and precise

6. Welding pulse width is adjustable, welding machine is firm and spatter is small, welding spot is not colored.

7. 10 Inch Touch screen, more convenient operation, more clear display

8. Three file programming modes, manual input, array and CAD schema import, simple and fast response to various complex program editing

9. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of spot welding needle on the welding quality.

10. It can store 99 groups of files, which are easy to call and do not need complicated wiring and shunting process.

11. One-button calibration function for whole deviation of solder joint, which can be used to calibrate point deviation caused by needle replacement or other reasons.

12. Spot welding efficiency is higher, welding speed per spot is less than 0.35S (according to different speed of the selected welding machine), single side spot welding machine can reach 2800 cores per hour.

13. The core parts are imported from Japan and Taiwan. The accuracy, stability and service life of the machine are more than twice that of other parts made in China.

14. Welding automatic alarm and stop function, after clearing the fault can continue spot welding

15. Machine with power cut or breakpoint continue function, can manually adjust any position for spot welding

16. Welding machine can be optional, according to different requirements of customers, different welding machines can be selected to effectively meet customer needs.



SPECIFICATION

Power Supply

AC 220V/380V±10% 50Hz±2Hz

Current

DC

Welding Mode

Inverter DC

Power Form

Automatic

Welding Objects

Sheet metal

Butt Welding Thickness

1mm +1mm

Flat Welding Thickness:

0.03-0.5mm

High Power Output

5000W

Energy Storage Capacitor

10000uf

Output Large Short Circuit Current

8000A

Prewelding Voltage

80.0V-330V adjustable, accuracy 0.5V

Welding Time

1.0ms-20.0ms adjustable, accuracy 0.1ms

Y-axis Travel

500mm

X-axis Travel

500mm

Spot Welding Speed

0.35S/point; 2800 pcs/hour

Speed of Motor Drive

1000mm/S

Number of Loaded Cores

Direction : 26

Directions : 26

Number of Storable File Groups

99 group

Operating System

Embedded System + Man-Machine Screen

Transmission Mode

Taiwan TBI Precision Screw and Guide

Stepping servo motor

Power

2000W

Weight

200kg

Size

900mmLx900mmWx1650mmH







 CNC Spot Welding Machine

                   Spot Welder









PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
