ItemNo :
LITH-PCH-GMOQ :
1Warranty:
2yearsDelivery Time:
5 days
Parameter
|
Model |
LITH-PCH-G |
|
Compressed sample shape |
|
|
Heating temperature |
Room temperature -500℃ |
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
Φ10, Φ13, Φ15, Φ20, Φ30, Φ40mm(M) |
|
Cavity depth |
45mm(N) |
|
Dimensions |
Φ78*138mm, Φ90*138mm(L*H) |
|
Power supply |
220V/300W |
|
Mold weight |
2.7kg |
|
Dimension diagram |
|

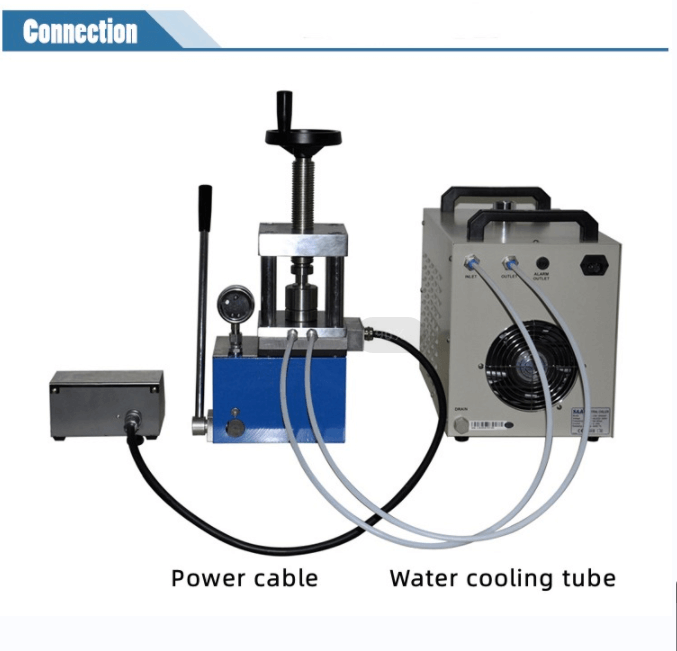

Diagram of pipeline connection

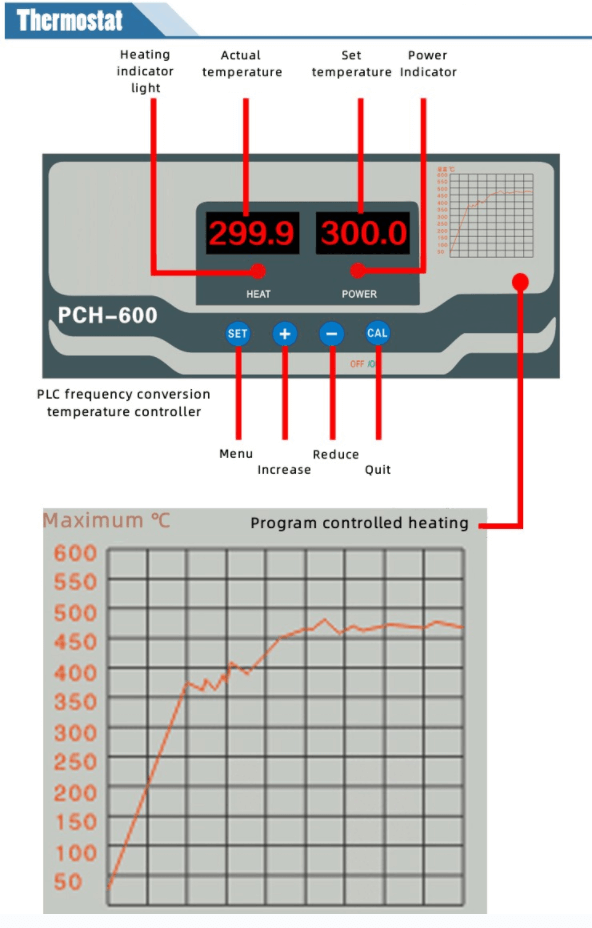

Temperature Controller

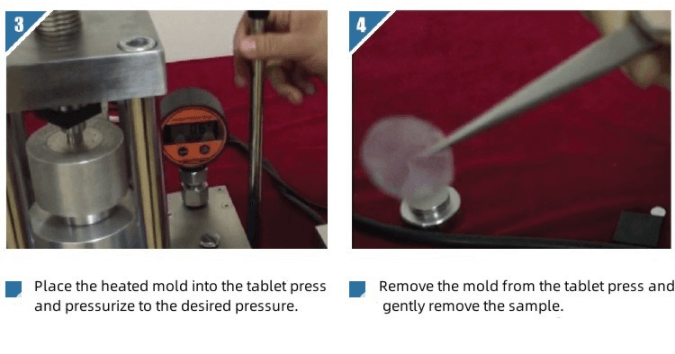

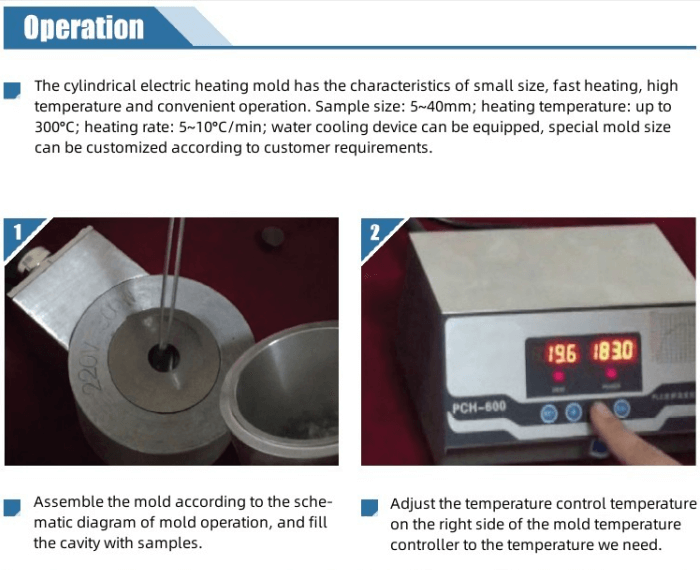

Mold sample preparation operation steps
Mold use and maintenance
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
