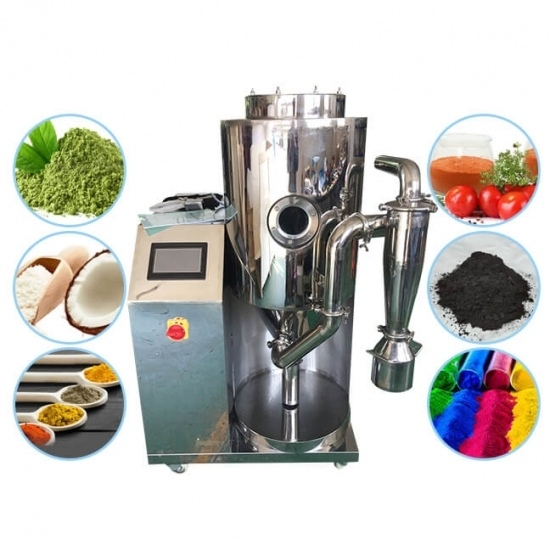

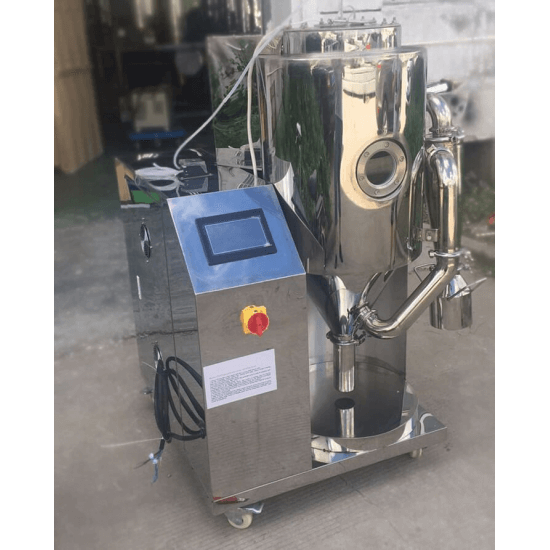

Louis@lithmachine.comPowder Spray Dryer Machine
Isolation equipment adopt high speed centrifuge spray drying technology, which is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Parameter
|
Max capacity
|
1500-3000ml/h
|
|
Temperature range of Inlet air
|
30℃-300℃
|
|
Temperature range of outlet air
|
30℃ -140℃
|
|
Precision of temperature
|
± 1℃
|
|
Dryer time
|
1.0-1.5 S
|
|
Speed of squirmy pump
|
30-3000ml/h
|
|
Consume of dryer air
|
0-330m3 /h, max pressure: 686Pa
|
|
Consume of spray air
|
0-4.2m3 /h, spray pressure: 2-5bar
|
|
Spray system
|
2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
|
|
Spray direction
|
downwards co-current
|
|
Power
|
4.5KW 108V-240V
|
|
Dimensions
|
800*780*1450 ( mm ) L*W*H
|

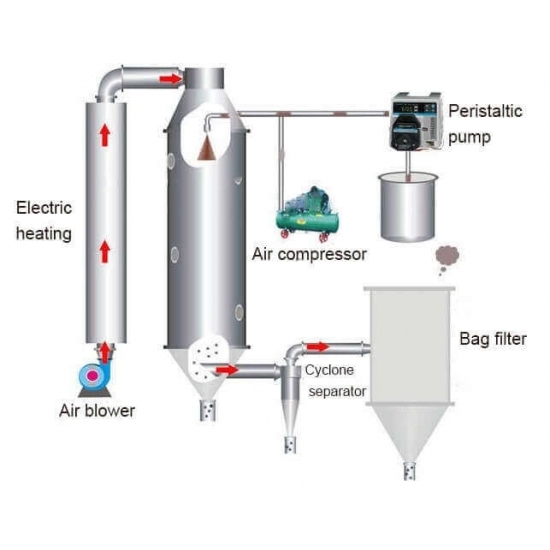

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
