ItemNo :
LITH-HY-C2000W-6060MOQ :
1Compliance:
Warranty:
2yearsDelivery Time:

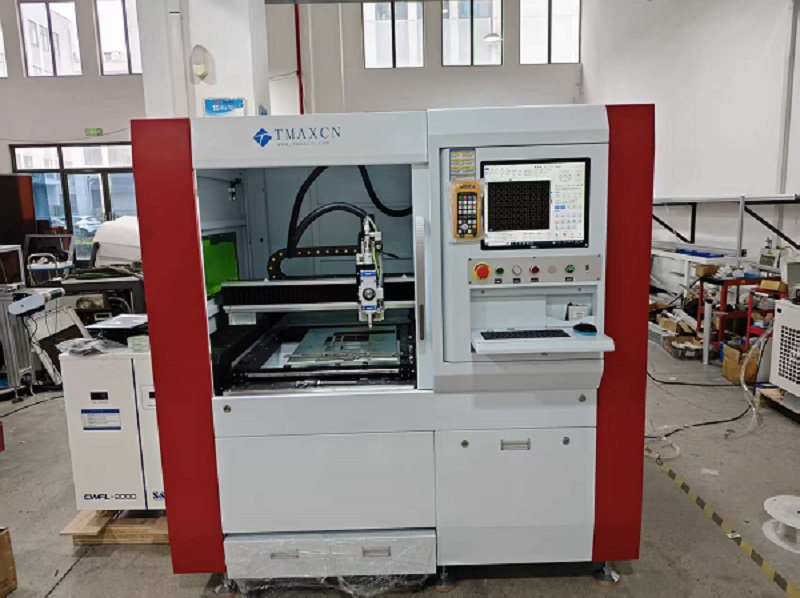

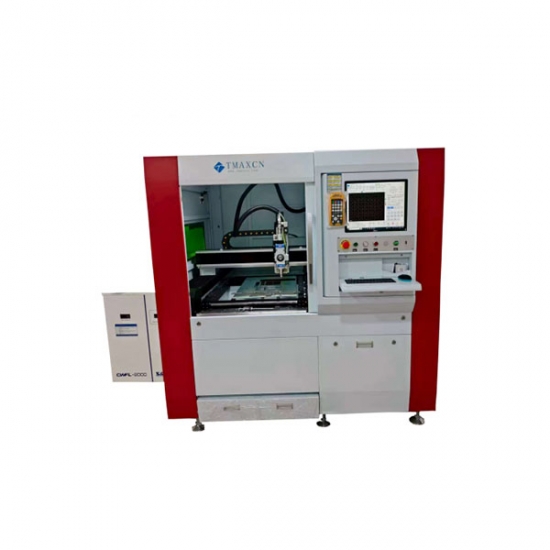

5 days2000W High-Speed Thin Plate Laser Cutting Machine
Fiber optic cutting machine configuration：
|
Configuration and Model |
LITH-HY-C2000W-6060 |
Notes |
|
Laser system |
2000W continuous laser |
Ruike |
|
cutting head |
Capacitive induction special cutting head |
Wan Shunxing |
|
Numerical Control System |
Specialized cutting software system |
LITH |
|
Auto-focus |
Capacitive induction automatic height adjuster |
LITH |
|
refrigeration system |
2000w standard dual temperature and dual control water tank |
LITH customization |
|
Z-axis module |
Screw module 50mm |
LITH |
|
servo motor |
Hechuan servo |
Domestic |
|
Grating reader |
Resolution of 0.5 μ m |
LITH |
|
Driver |
CDHD-4D52AEC2LITH |
|
|
computer |
IPCLITH |
|
|
Smoke collection system |
Top mounted air inlet, independent suction port for the receiving box/matching purification system |
LITH |
|
Marble base |
1250*1800*120mmLITH |
|
|
Cabinet |
Sheet metal integrated cabinet (side sliding door) |
LITH |
Technical Parameter：
|
Model |
LITH-HY- C2000W-6060 |
|
Maximum laser power |
2000W |
|
cutting range |
600*600mm（effective） |
|
positioning accuracy |
±0.05mm |
|
repeatability |
±0.005mm |
|
Speed of rail movement |
≤40m/min |
|
Minimum line width |
≤0.03mm |
|
Processing dimensional accuracy |
±0.05mm |
|
Host size |
1250*1800mm |
|
Cutting pressure requirements |
≤1.6MPa |
|
Cooling method |
water-cooling |
|
working voltage |
220V |
|
Whole machine weight |
1.8T |
|
Power consumption |
7KW |
|
Cutting thickness |
≤5mm（stainless steel） |
Equipment introduction
1: This machine is mainly designed for high-speed laser processing of thin plates, with stable operation, mature technology, and high cutting efficiency
2: The device host has good rigidity and high strength. The base is made of Jinan green marble, and the crossbeam is made of extruded aluminum profiles, which have good acceleration performance and effectively prevent structural deformation,
3: Control part: An open motion control platform that integrates motion control, PLC, and HMI, which can be effectively applied to various laser processing. The EtherCAT bus based front-end control system greatly improves the flexibility and scalability of the equipment
Equipment working environment requirements:
Working environment temperature -10~45 ℃, relative humidity<90%, no condensation, surrounding environment: ventilated, no significant vibration, power supply voltage 380 ± 5%
The overall power of the machine is 5KW
Warranty and after-sales service: One year warranty for the entire machine and two years warranty for the laser; The response time for maintenance services is within 24 hours.
Equipment operating environment temperature: recommended 0 ℃ -40 ℃ ; Laser must not condense; Keep the cooling water clean; Reliable grounding.
Accessories：
|
Name |
Quantity |
Notes |
|
instructions |
1 copy |
gift |
|
Protective lenses |
5 pieces |
gift |
|
spray nozzle |
5 pieces |
gift |
|
Allen key |
1 set |
gift |
|
Specialized mirror Wiping paper |
1 book |
gift |
INSTALLATION REQUIREMENTS：
1. On site distribution cabinet: 220V, 50Hz, three-phase four wire, capacity not less than 40 KVA, with short-circuit protection, etc.
2. The device should be equipped with a dedicated grounding, with a grounding resistance not exceeding 4 Ω.
3. Provide necessary lifting equipment and personnel.
4. Provide materials such as steel plates required for on-site equipment debugging. .
5. Provide temporary access cards for debugging personnel.
6. The auxiliary conditions required for the normal operation of laser cutting equipment:
6.1 Cutting auxiliary gases (N2, O2);
6.2 Water free and oil-free compressed air or nitrogen supply system.
7. Equipment space and foundation requirements: The foundation is made of concrete with a minimum thickness of 200 mm; there are no seismic sources or shock-absorbing grooves around the foundation.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
