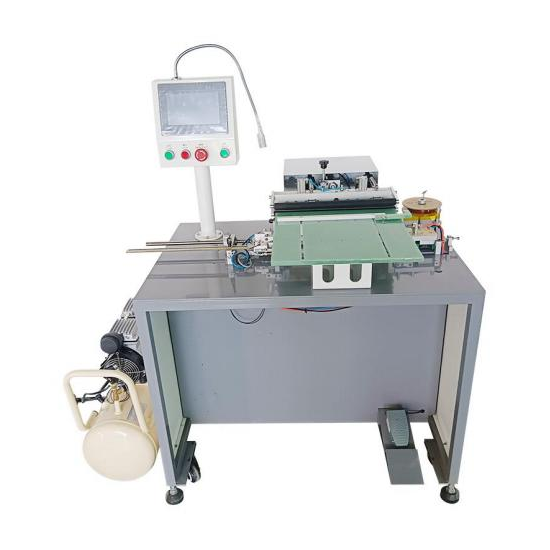

Side Tape Pasting Machine for Polymer Battery
Ⅰ、Product Overview
1 、 The equipment is simple and easy to learn, easy to operate, and has an extremely low failure rate.
2 、 This machine solves the problem of adhesive tape wrapping on both sides and bottom of polymer built-in batteries, with high consistency of adhesive wrapping, improving efficiency, and saving labor costs.
3 、 Adhesive tape for both sides and bottom of polymer built-in batteries (including mobile phone batteries, mobile power supplies, power batteries, etc.).
Ⅱ、Product features
1. The equipment is connected to a vacuum pump, with high vacuum degree and stable adhesive application;
2. The adhesive length, adhesive width, and applicable cell thickness range are wide, with strong versatility;
3. The production capacity can reach around 1200 times/H, with high production efficiency
4. The device has two adhesive modes, L-type and C-type, to meet different adhesive requirements.
Ⅲ、Specification
|
Specification |
|||
|
Power supply |
220V 50Hz |
Pressure |
0.4-0.8MPa |
|
Suitable for |
Polymer cells |
Cell thickness |
3-8mm |
|
Tape width |
6-16mm |
Tape length |
30-400mm |
|
Productivity |
About 1200 times/H |
Outer size |
1150*800* 1300mm （L*W*H） |
|
Weight |
60Kg |
|
|
