Louis@lithmachine.comLab Speed Adjustable Manual Rockwell Hardness Tester with 0.5HR Hardness Resolution
Product features:

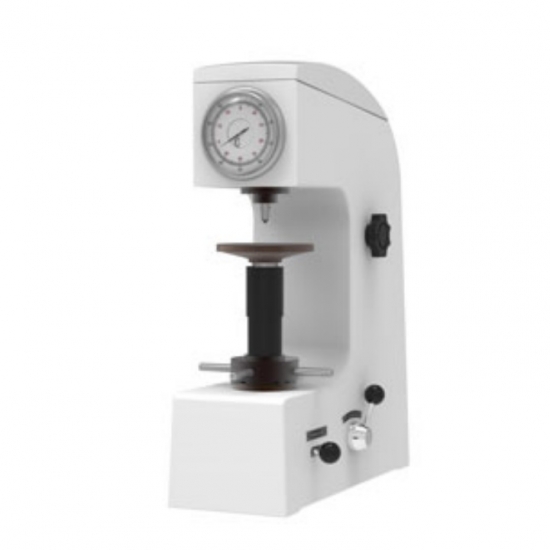

The HR-150A manual Rockwell hardness tester is a universal Rockwell hardness tester. Mechanical manual test, no power supply, wide range of application, easy to operate, with good economy and practicability.
1. Mechanical manual test, no power supply, wide range of application, easy operation, with good economy and practicality;
2. The fuselage is cast with high quality cast iron once, with the automobile paint treatment process, the appearance is rounded and beautiful;
3. The dial directly reads the hardness value, and other Rockwell scales can be selected, such as HRD, HRF and other hardness scales;
4. Frictionless spindle, high test force accuracy;
5. Precision hydraulic buffer cast in one body, no buffer leakage, stable loading and unloading, no impact, adjustable speed;
6. Accuracy in line with GB/T230.2, ISO6508-2 and ASTM E18 standards.
Scope of application:
1. Determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;
2. Rockwell hardness measurement of heat treatment materials such as cemented carbide, carburized steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, tempered steel, annealed steel, bearings and other materials.
Technical parameters:
|
Model number |
HR-150A |
|
Measuring range |
20-95HRA， 10-100HRBW， 20-70HRC； |
|
Test force |
588.4、980.7、1471N（60、100、150kgf) |
|
The maximum allowable height of the specimen |
170mm |
|
Distance from indenter center to machine wall |
135mm |
|
Hardness resolution |
0.5HR |
|
Overall dimension |
466*238*630mm |
|
Weight |
65kg |
Attachment configuration:
|
Large flat working table |
1pc |
Small flat working table |
1pc |
|
V-shape working table |
1pc |
Diamond cone indenter |
1pc |
|
φ1.588 steel ball indenter |
1pc |
Standard Rockwell hardness block |
5pcs |
The above is the standard configuration, the actual product shall prevail in kind!
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
