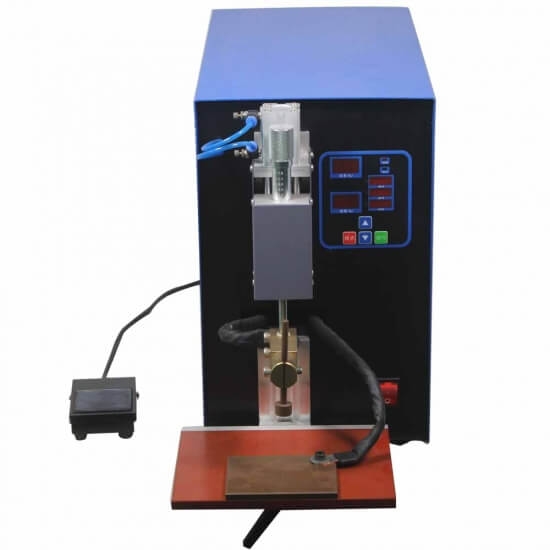

Cylindrical Battery Manual Single Welding Needle DC Spot Welding Machine for EV Battery
FEATURE
1 . LITH-W728 DC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.
2 . This DC double needle spot welding machine is specifically designed for professional Li-ion Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.
SPECIFICATIONS
|
Model |
DC spot welding machine TMAX-W728 |
|
Power Supply |
110V-240V with transformer, Single Phase 50/60Hz |
|
Max output power |
10KVA |
|
Warranty |
One year limited with lifetime support |
|
Advantages |
1 Double pulse welding - pre welding and welding 2 Microcomputer control precision, Guarantee the evenness of each welding effect 3 Automatic count |
|
Pre-welding current |
0-99A |
|
Welding time |
0-30S |
|
Welding current |
0-99A |
|
Welding stroke |
25mm, the welding height can be adjusted |
|
Operating |
Foot switch and pneumatic model can be chosen |
|
Control |
The microcomputer chip control, LCD liquid crystal display, simple and precision |
|
Welding thickness |
0.03-0.5 mm Ni weld on Ni or metals |
|
Weight |
50kg |
|
Dimension(L*W*H) |
Foot switch model with desk : 800*580*1100mm Pneumatic model : 400*370*220mm |
Spot Welding Machinie
Type
Product Name
Features
Link
Manual
Pneumatic Spot Welding Machine
Welding Thickness:0.03 -0.25mm
Air Pressure Range:0.1 - 0.7 Mpa
AC Plus Pneumatic Spot Welding Machine
Welding Thickness:0.03~0.2mm
5000A/8000A Pneumatic Inverter DC Spot Welding Machine
Maximum thickness of parallel welding:0.03mm~0.5mm
Maximum Output Short Circuit Current:5000A or 8000A
DC Output Spot Welding Machine
Maximum thickness of parallel
welding:0.03mm~0.5mm
https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html
Automatic
Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)
Welding travel:400x500mm
Welding Speed:0.35s/point; 2800pcs / hour
Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)
The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour
Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)
Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h
https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
