Lab Battary Vacuum Electrode Coater Machine With Vacuum Chuck

Lab Battary Vacuum Electrode Coater Machine With Vacuum Chuck

  • Product Details

Lab Battary Vacuum Electrode Coater Machine With Vacuum Chuck

Specification:

ITEM

Data

Model

 LITH-AFA-II

Working Voltage

110-220V ±10%  50Hz

Feed speed

0 ~ 100mm/s, the speed can be adjusted

Max.Stroke Length

10 - 800mm adjustable  It can be customized

Vacuum plate

With vacuum aluminum plate

Scraper range

0.01~3.5mm adjustable

Vacuum Pump

Yes

Product Dimensions

L500mm×W310mm×H200mm

Platform Dimensions

L365mm×W200mm×H30mm

Net Weight

50 kg (135 lbs)

Warranty

 Two years warranty and lifetime maintenance

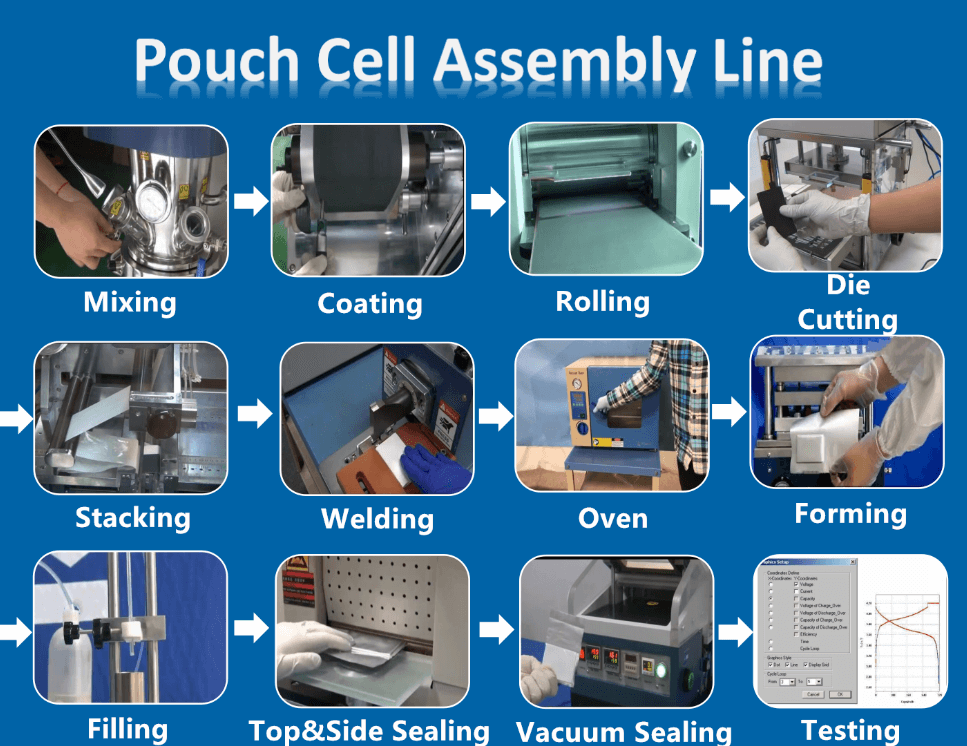

Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer



For the pouch cell assembly, we also recommend you the following items:












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to production season and order quantity.
