Product Description

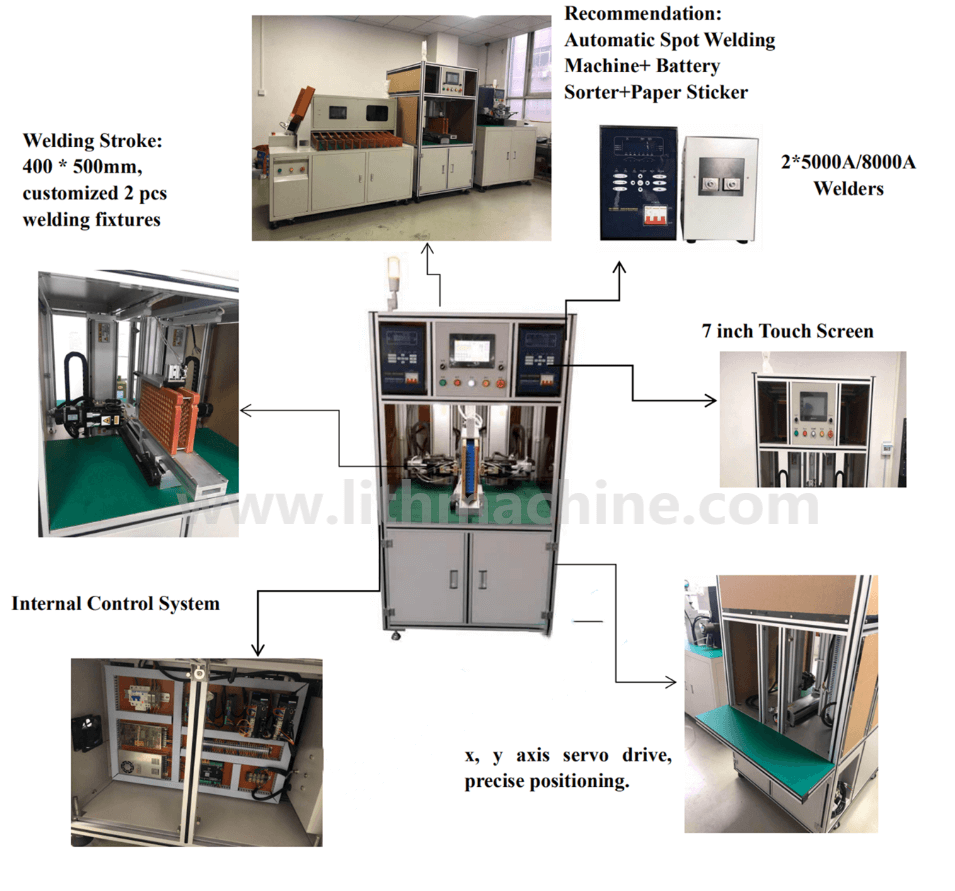

LITH-DH-20000 Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of Double Sided Battery Spot Welder have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise. This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N.
Product Specifications
Product Name
Double-sided automatic spot welder
Model No.
LITH-DH-20000
Y-axis travel
500mm (customizable)
Z-axis travel
400mm (dual) (customizable)
Max spot welding speed
0.5s/ spot (1 hour:about 3,600 pcs 18650 cells)
Motor driving speed
1000mm/S
Max load electric cores
X direction: 26; Y direction: 18
Capable file group storage
100 groups
Operating system
Embedded system human-machine interface
Transmission mode
Taiwan precision screw with guide rail
Size
L1020*W910*H1775mm
Power
4000W
Weight
355kg
Max bearing weight of Y-axis
50KG
Input power supply
Single-phase AC 380V/50Hz
Air Source
0.4-0.6 Mpa
