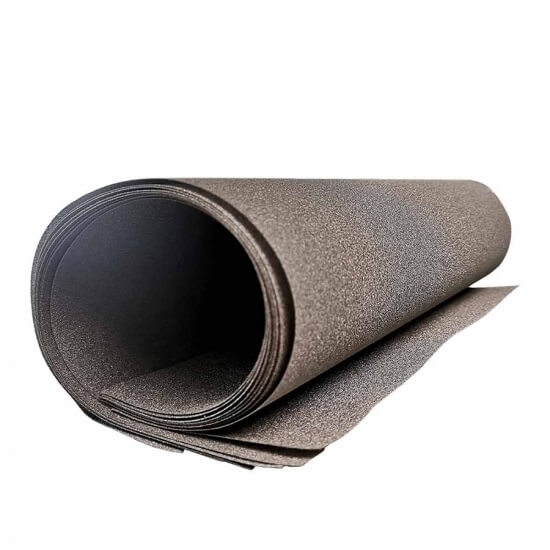

80um-20mm Thickness Nickel Foam For Lithium Battery Cathode Materials

Introduction

Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.

Usefulness: (Various shapes can be produced)

1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.

2. Filtration materials of air / oil / smoke etc.

3. Porous electrode in Galvano-Chemistry Engineering.

4. Elimination of heat.

5. Amortization materials.

6. Noise-Absorbing and Vibration-Absorbing materials.

7. Electromagnetic shielding materials.

8. Catalyst carrier.

9. Precious metal recovery.

Specifications

Type

Open cell

Purity

> 99%

Form

Sheet or Roll, depending on size & thickness

Cell Size (PPI)

10-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Thermal Conductivity (Theoretical)

>3W/M.K

Mechanical Strength (Theoretical)

≥2~7MPa

Tensile Strength (Theoretical)

8~50MPa

Temperature Resistance (Theoretical)

≥500℃


0.1mm*200mm*300mm

0.2mm*200mm*300mm

0.3mm*200mm*300mm

0.5mm to 1.7mm*200mm*300mm

2mm*200mm*300mm

3 to 4mm*200mm*300mm

5mm*200mm*300mm

6mm*200mm*300mm

8mm*200mm*300mm

10mm*200mm*300mm

10 to 20mm*200mm*300mm

The size can be customized

Application field
Exhaust gas purifier carrier materials, battery electrode materials, all kinds of catalyst carrier, especially for high temperature resistance and acid and alkali corrosion filtering material, the surface of the infrared burner materials, all kinds of industrial and civil heating material drying equipment, etc

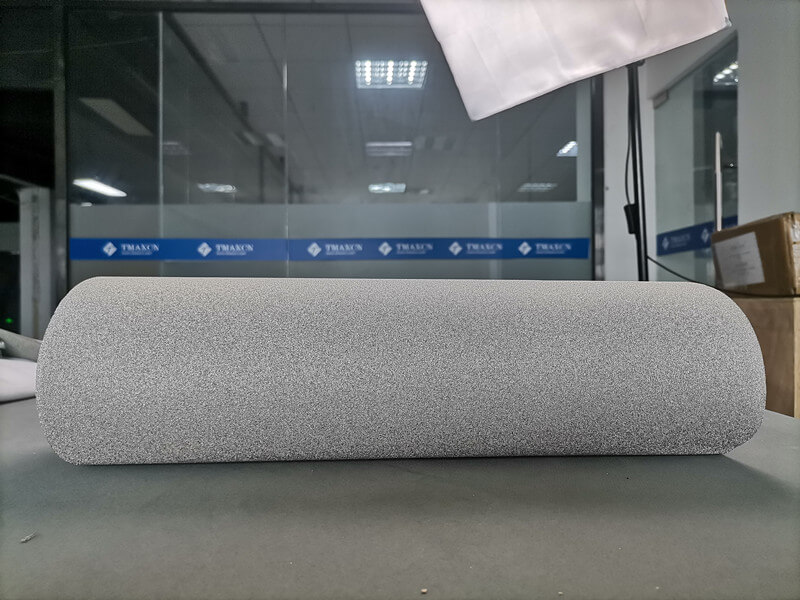

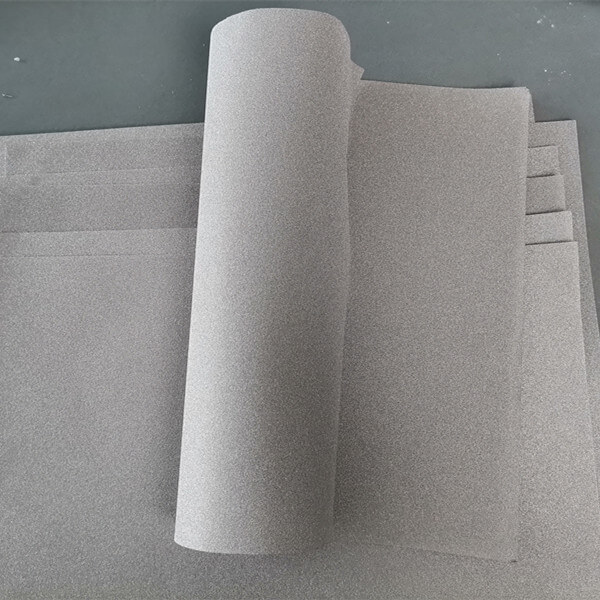

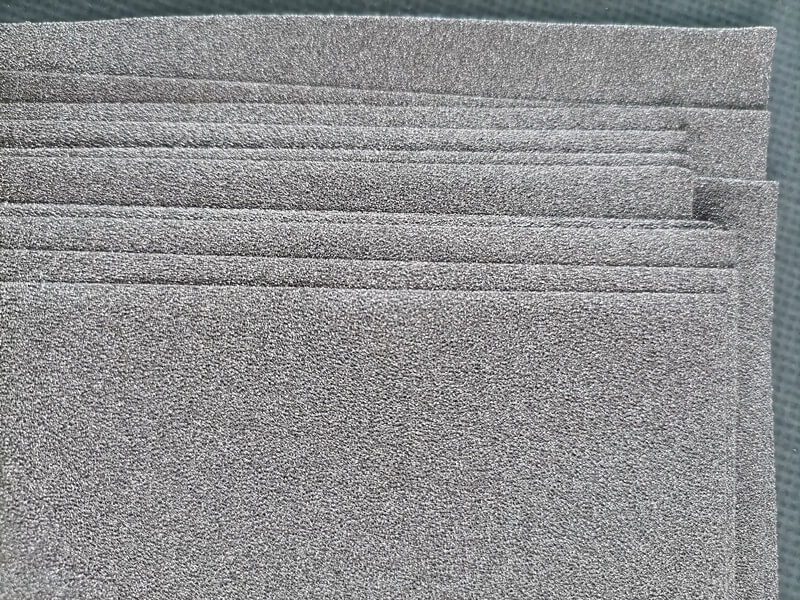

Nickel foam


Nickel foam



Nickel foam








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
