8000A High Efficiency Precision Energy Storage Spot Welding Machine

ItemNo :
LITH-DH-20018
MOQ :
1
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

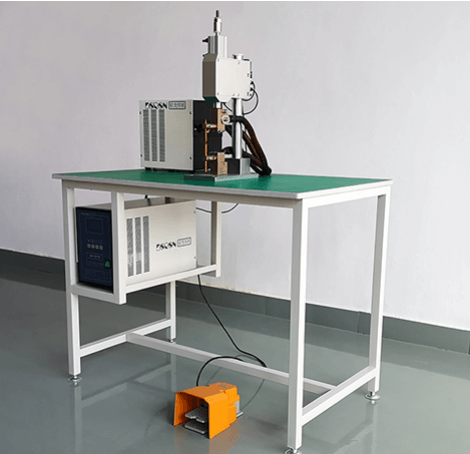

8000A High Efficiency Precision Energy Storage Spot Welding Machine

Product overview:

Energy saving and high efficiency: low instantaneous power, high power factor, small impact on the power grid, energy saving, stable output voltage, good consistency; solid welding, no discoloration of welding points, saving grinding process, high efficiency, widely used for clock particles and welding, battery connector, hardware, etc

Characteristic:

1. The control performance of microcomputer CPU with DC inverter technology is particularly stable, and the setting is simple and convenient.

2. The pressure knob is made according to the international standard customer. The pressure of two welding pins is even, which will not cause faulty welding, and the welding accuracy is higher.

3. The short welding time with the traditional AC pulse capacitor welding machine has no effect on the internal characteristics of the cell, the change of the internal resistance of the battery, the voltage and capacity.

4. After welding, the battery surface is cleaner, with small burr, very small welding spark, and no blackening of welding spot.

5. The blue LCD screen graphically displays the current working status, with clear interface, beautiful appearance and more humanization.

6. The power supply has strong adaptability, will not cause interference to the power grid, and the welding is firm.

Specification:

Name	Precision Energy Storage Spot Welder
Input power	AC380±10%, 50/60HZ
Power consumption	360W
Outline size	1000L600W1310H (mm)
Overall weight of equipment	120KG
Maximum output power of transformer	35KVA
Maximum short circuit output current	8000A
Rated capacity	500J
Welding voltage adjustment	50-350VDC
Welding time	1.0mS-20.0mS adjustable, accuracy: 0.1mS
Number of welding pulses	2
Welding needle configuration	1.8mm/3mm/6mm
Adjustable distance between welding needles	0-20mm
Welding speed	0.5-0.8S/single welding
Welding thickness	0.08-0.3mm nickel plated strip(Planar) 0.2-0.5mm nickel plated strip (Bump)
Parameters can be stored	10 groups

Spot Welding Machinie
Type	Product Name	Features	Picture	Link
Manual	Pneumatic Spot Welding Machine	Welding Thickness:0.03 -0.25mm Air Pressure Range:0.1 - 0.7 Mpa		https://www.lithmachine.com/desk-top-capacitive-discharge-spot-welder-for-battery-tab-and-cylindrical-battery-welding_p366.html
	AC Plus Pneumatic Spot Welding Machine	Welding Thickness:0.03~0.2mm		https://www.lithmachine.com/ac-plus-pneumatic-spot-welding-machine-welder-for-cylindrical-battery-welding_p362.html
	5000A/8000A Pneumatic Inverter DC Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm Maximum Output Short Circuit Current:5000A or 8000A		https://www.lithmachine.com/inverter-resistance-welder-18650-power-battery-spot-welder-battery-spot-welding-machine_p442.html
	DC Output Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm		https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html
Automatic	Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)	Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.lithmachine.com/automatic-single-side-battery-spot-welding-machine-welder-for-18650-cylindrical-battery-pack_p363.html
	Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)	The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.lithmachine.com/inverter-dc-single-side-automatic-spot-welding-machine-for-cylindrical-battery-pack-assembly_p402.html
	Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)	Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h		https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html

Related Machine

Lithium Battery Sorting

Sticking Barley Paper

Spot Welding PVC Heat Shrink Wrapping
Semi-finished Cell Testing

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
