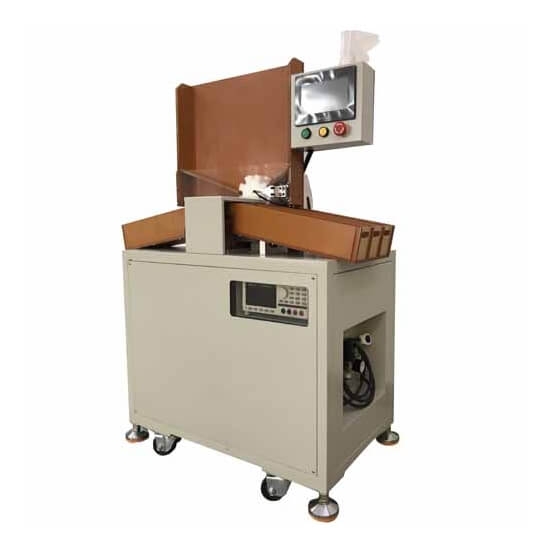

Louis@lithmachine.com5 to 22 Channels Cylindrical Battery Sorter/Selector Sorting Machine for 18650 32650 26650 21700 Cylindrical Cell
Introduction
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
We can provide 5-22 channel battery sorter, the internal resistance tester can choose HIOKI3561 or HK3561.
Working Principle of Equipment
The device measures the voltage resistance of the battery through a voltage internal resistance tester.
The voltage internal resistance parameters of four gears are set by man-machine interface. The voltage internal resistance of the core is tested by PLC and judged by the parameters. The battery grade is obtained. The sorting cylinder is controlled by PLC to send the battery to the corresponding receiving gears.
Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting
2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells
3. Sort by cell's voltage and impedance up to 5 groups
4. Automatic sorting control
5. Fast sorting speed (80PPM)
6. Easy to refill cells during the process
7. Wheels design, easy to move the machine to any operating place
Specifications
|
Voltage Supply |
220V±10%/50Hz±10% |
|
Power |
<800W |
|
Display Screen |
Large size LCD screen/Touch screen |
|
Battery Types |
Cylindrical Cell (18650,18500,32650,26650,14500,21700 etc.) |
|
Receiving Channel |
5 channels |
|
Test Parameter |
AC internal resistance, DC voltage |
|
Internal ResistanceTest |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
|
Voltage Test |
Test range: 0-8V Accuracy:±0.5% rdg Resolution: 0.01mV |
|
Sorting Speed |
80PPM |
|
Weight |
<200KG |
|
Dimension |
1120mm(L)*880mm(W)*1250mm(H) |
|
Tester |
HK3561 |
|
Productivity |
3000pcs/h |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
