18650 26650 32650 Cylindrical Battery Automatic 9 Channels Sorter Sorting Machine for Processing Battery Pack

ItemNo :
LITH-FN-9
MOQ :
1
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

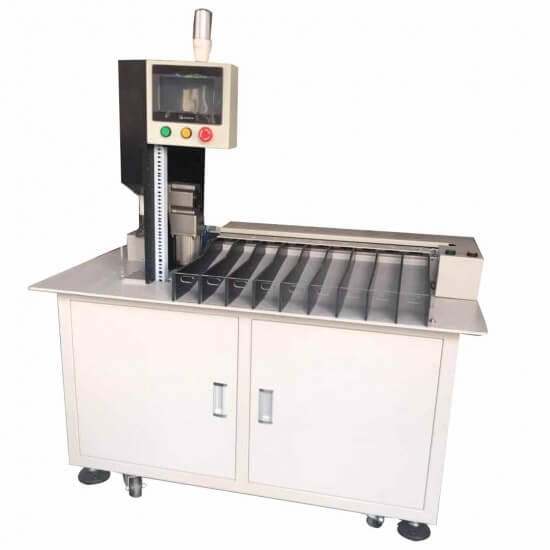

18650 26650 32650 Cylindrical Battery Automatic 9 Channels Sorter Sorting Machine for Processing Battery Pack

Features
1. Compact and reasonable equipment structure, beautiful appearance, small volume.
2. Simple equipment operation, workers can easily learning.
3. The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.

5. The device is equipped with universal movable casters, the device can easily move when it is displaced.

Specifications

Model	LITH-FN-9
Power supply	AC220V ± 10% 50Hz
Voltage	800W
Sorting parameters	Open Circuit Voltage and AC Internal Resistance
Compressed Air Pressure	0.5 ~ 1.0Mpa
Sorting Speed	≥80PPM
Productivity	5000pcs/h
Dimension	1260x650x1350mm
Adaptation Battery	Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel	9 channels
Internal Resistance Tester	HIOKI3561 or HK3561
	HIOKI3561: Open circuit voltage accuracy:± 0.01% rdg; Internal impedance accuracy:± 0.1% rdg; HK3560: Open circuit voltage accuracy: ±0.1% RDG Internal impedance accuracy:±0.5% RDG
Total weight	120kg
Control component	7.5 inch touch screen, 3-axis PLC programmer
Motion device	Closed-loop stepper motor is used for shifting, accurate positioning and synchronous belt conveying the core to prevent the surface of the core from being damaged.
Feeding	Using hopper feeding mode, 500 PCS can be put in one time.
Data storage	Test data can be stored on a U disk
Scan code function	Can be customized
Automatic Online Interface	It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.
Other	Customizable scanner and database data docking
	Optional Distribution Core Dynamic Tester, reflecting the quality and load-carrying performance of the core
	Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)
	Automatic collection of production quantity to show current production efficiency

Equipment Configuration List

Tester	HIOKI3561 or HK3561
Computer	Industrial Computer
PLC	FX3U-80MT/ES-A and SC-09
Servo	Panasonic A5 Series
Sensors	Panasonic and Omron, Japan
Guideway	ShangYin, Taiwan
Bearing	Japan NSK
Cylinder	Adec
Indoor temperature	- 30 ℃ ~ 70 ℃
Factory	No pollution and no strong electromagnetic interference

Cylindrical Battery Sorting Machine
Product Name	Picture	Link
5 channel battery sorter		https://www.lithmachine.com/18650-32650-26650-21700-cylindrical-cell-5-channels-cylindrical-battery-sorter-sorting-machine_p360.html
6 channel battery sorter		https://www.lithmachine.com/18650-26650-32650-cylindrical-cell-6-channel-battery-sorting-machine-for-battery-pack-assembly_p469.html
9 channel battery sorter		https://www.lithmachine.com/automatic-9-channels-18650-26650-32650-cylindrical-battery-sorter-sorting-machine-for-processing-battery-pack_p470.html
10 channel battery sorter		https://www.lithmachine.com/18650-26650-32650-cylindrical-battery-10-channels-battery-sorter-sorting-machine-for-battery-pack-assembly_p359.html
11 channel battery sorter		https://www.lithmachine.com/18650-32650-26650-21700-cylindrical-cell-11-channels-cylindrical-battery-sorter-sorting-machine_p371.html
13 channel battery sorter		https://www.lithmachine.com/18650-26650-32650-cylindrical-battery-13-channel-sorter-selector-sorting-machine-for-battery-pack-assembly_p471.html
22 channel battery sorter		https://www.lithmachine.com/22-channel-18650-26650-21700-32650-cylindrical-battery-sorter-sorting-machine-for-battery-pack-assembly_p472.html

Cylindrical Battery Sorter

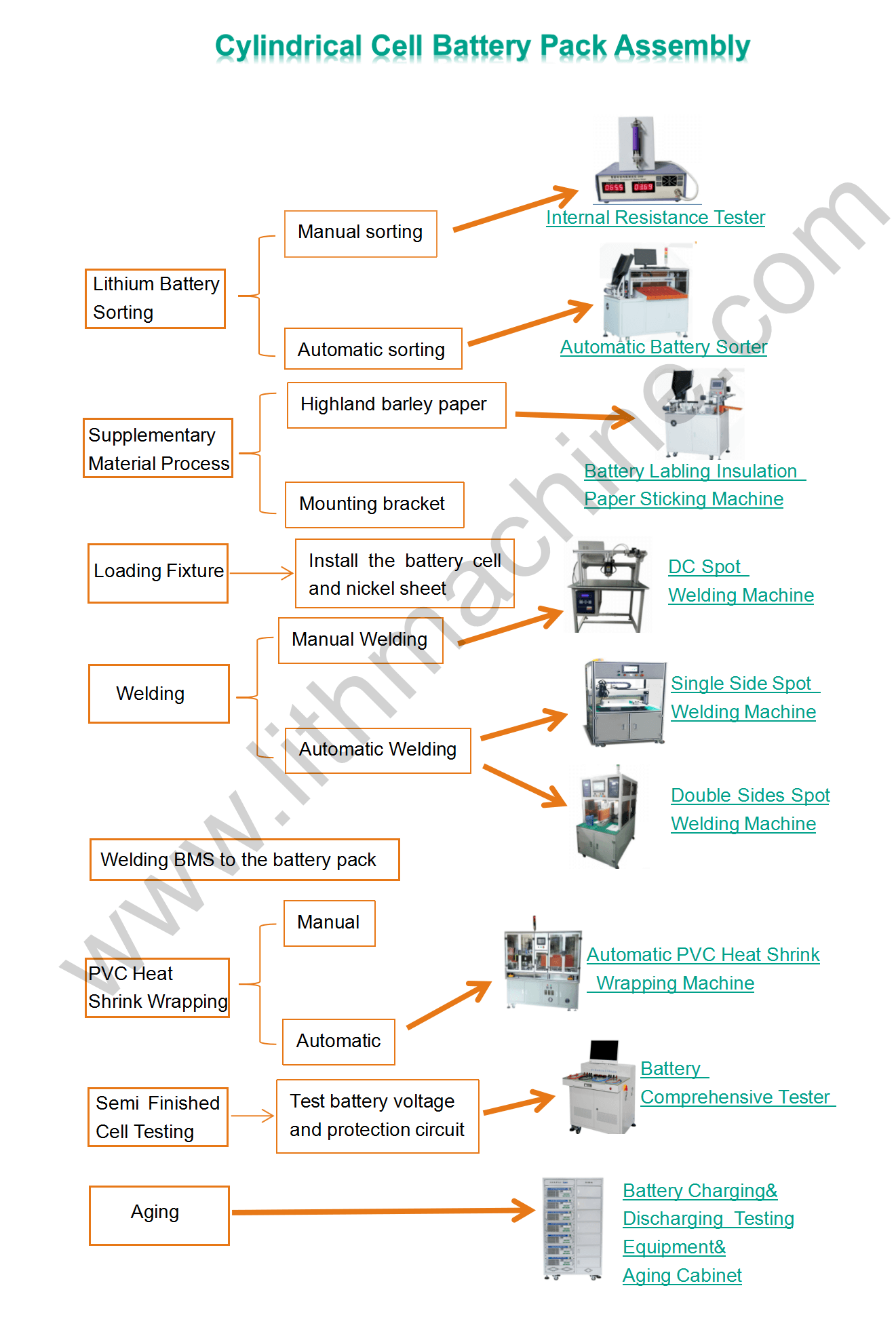

Related Machine

Lithium Battery Sorting

Sticking Barley Paper

Spot Welding

PVC Heat Shrink Wrapping

Semi-finished Cell Testing

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
