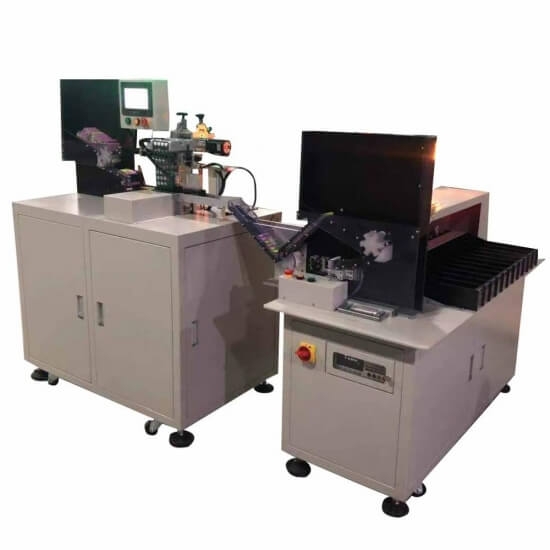

Automatic Paper Sticking Machine for 18650 Cylindrical Battery Barley Sticking

Automatic Paper Sticking Machine for 18650 Cylindrical Battery Barley Sticking

  • ItemNo :

    LITH-ST1
  • MOQ :

    1
  • :

    China
  • Color :

    optional
  • Port :

    Xiamen Port
  • Lead Date :

    15 days
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    15 days
  • Email :

    [email protected]
  • Product Details


Automatic Paper Sticking Machine for 18650 Cylindrical Battery Barley Sticking


INTRODUCTION:

This machine can use a big roll of  barley paper or PVC to automatically paste cylindrical cells.

1. Stickers pasted stableconsistent, and long lasting.

2. Automatic failure alarm.

3. Easy to program, adjust, and opertate for new hands.

4. High Efficiency, fully automatic, saving labor cost




SPECIFICATION:

Input Gas Source

0.4-0.8Mpa

Function Style:

Stepper drive with pneumatic

Input Voltage:

AC220V

Sticker Matrials:

Barley paper or PVC

Sticker Matrials Size:

Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM

Adaptable Battery Cell

18650 battery or other cylindrical batteries

Power:

Electric power or pneumatic

Control Instrument:

7.5 feet contact screen,PLC programming machine and step motor

Electrodes to the Body Distance:

100 mm (Scalable adjustable)

Producivity:

4000pcs/h; singal 4pcs

External Dimensions

1.3M*1M*1.3M



















PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
