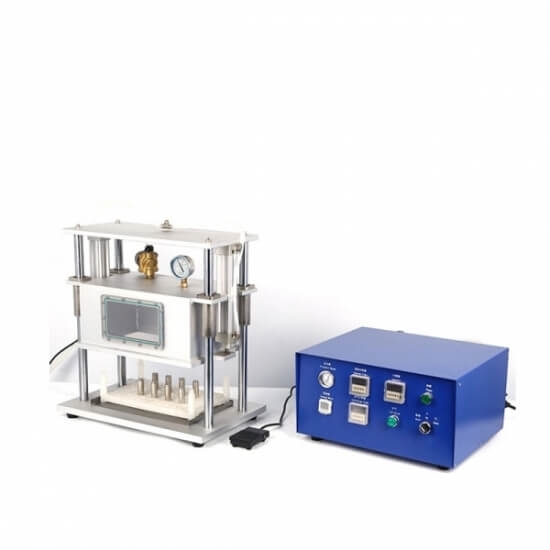

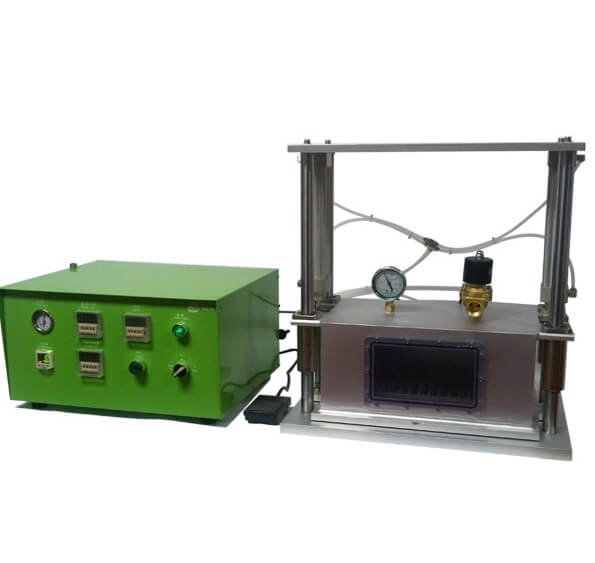

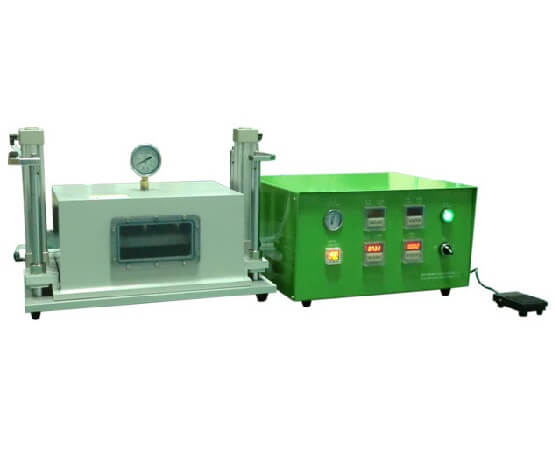

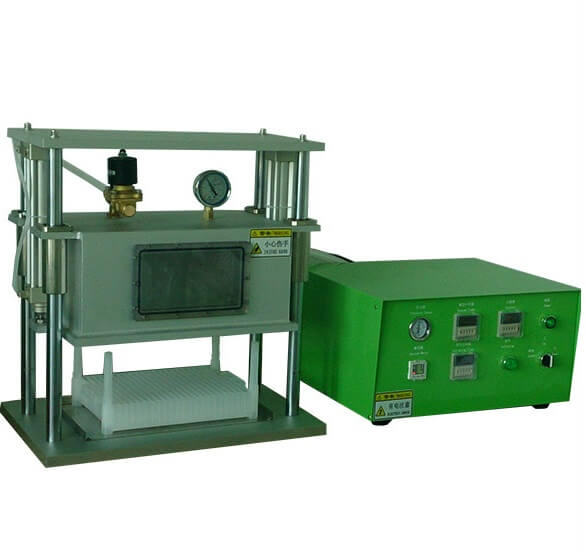

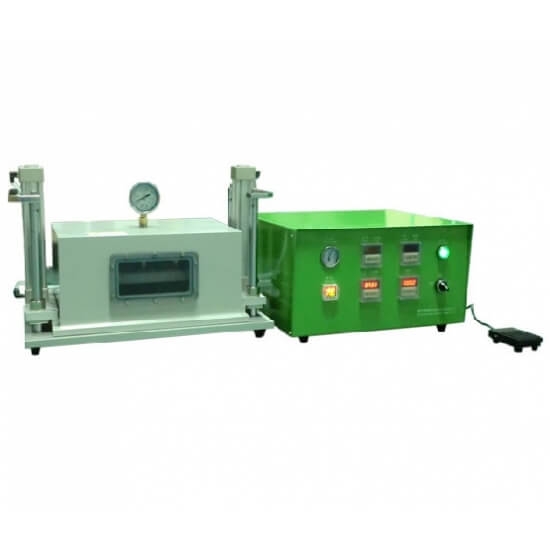

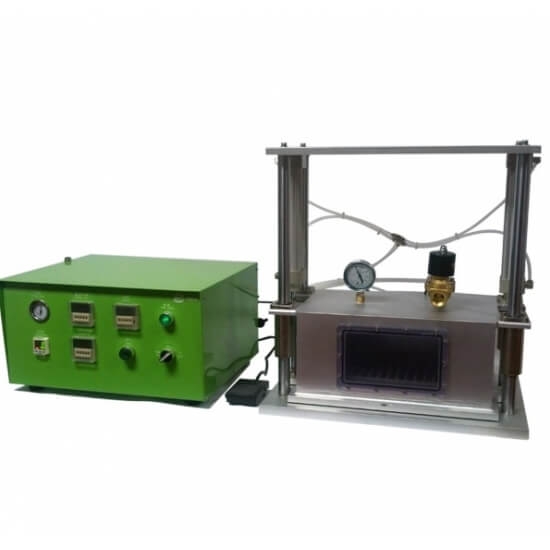

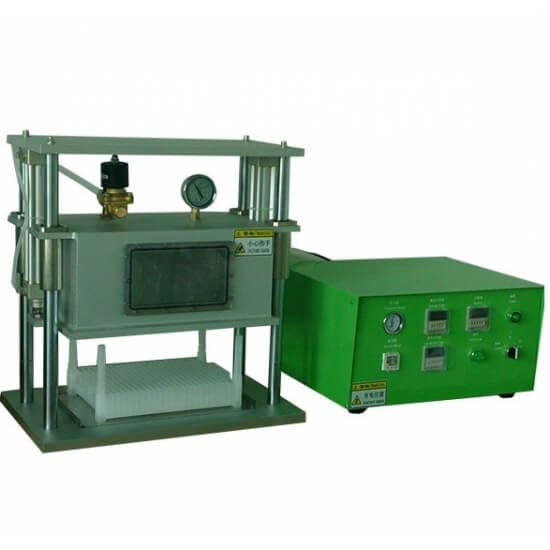

Li-Ion Battery Electrolyte Diffusion & Degassing Chamber

  • ItemNo :

    LITH-JZ200
  • MOQ :

    1
  • Compliance:

    CE Certified
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

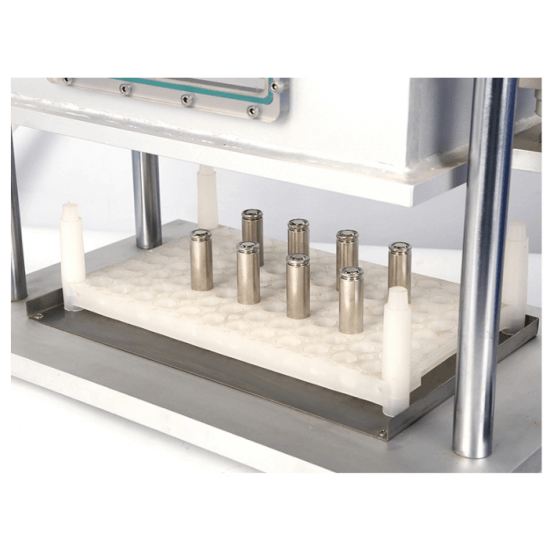

Li-Ion Battery Electrolyte Diffusion & Degassing Chamber


Features

TMAX-JZ200 electrolyte diffusion & degassing chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyteafter it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.



Specifications

Inner Chamber Size L325mm*W220mm*H170mm
Product Dimensions
  • Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H)
  • Control Unit: 460mm(L) x 220mm(W) x 340mm(H)
Power Supply 110-240 V, Single Phase 50/60Hz
Max. Power 100W
Compressed Air 0.5-0.8Mpa
Chamber Body 12mm thick Aluminum case with observation window
Gas Filling Rate <= 5 psi
Air Pressure Range 0 - 1 Mpa (0 - 99 psi) Adjustable
Vacuum Level
  • Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently
  • Vacuum mode (once or twice) can be selected
  • Easy program setting for specific vacuum condition
  • -0.9 - 0 kPa adjustable
Air Inflation Time 0 - 99.99 sec
Vacuum Condition Hold Time 0 - 99.99 sec
Operation Temperature -20 to 40 ℃
Warranty One Year limited warranty with lifetime support
Net Weight 50KG
Application Notes

1. KF25 Feedthrough is included to allow operation inside TMAX Glove box.
2. Such a Feedthrough ensures air-tightness of glove box.




Electrolyte Diffusion & Degassing Chamber

Electrolyte Diffusion & Degassing Equipment

Diffusion & Degassing Chamber

Battery Diffusion & Degassing Chamber

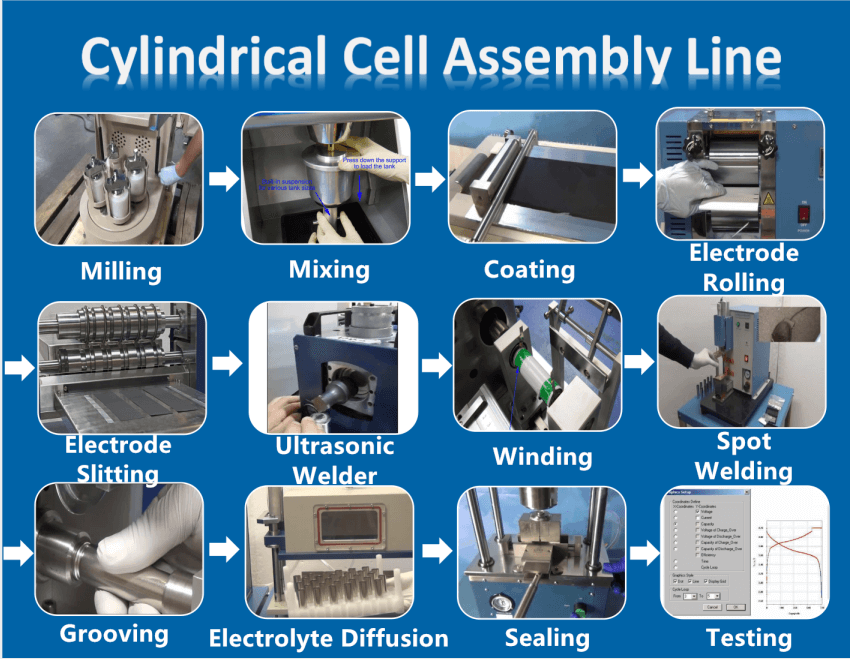

Process

Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer
