Lab 1100°C Atmosphere Muffle Furnace

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China

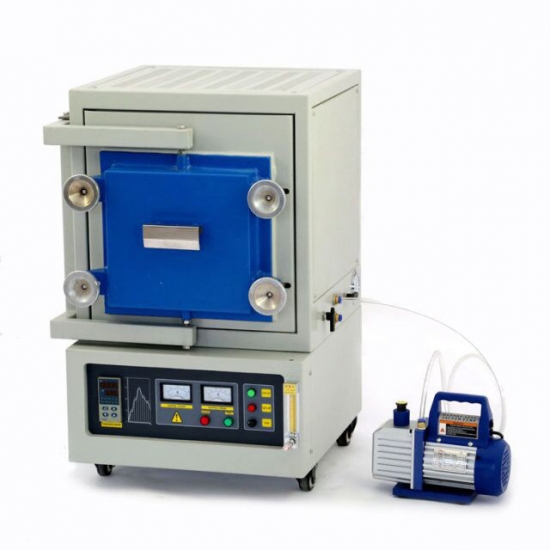

Lab 1100°C Atmosphere Muffle Furnace

Lab 1100°C Atmosphere Muffle Furnace

  • ItemNo :

    LITH-1100CAtmosphere
  • MOQ :

    1
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Lab 1100°C Atmosphere Muffle Furnace

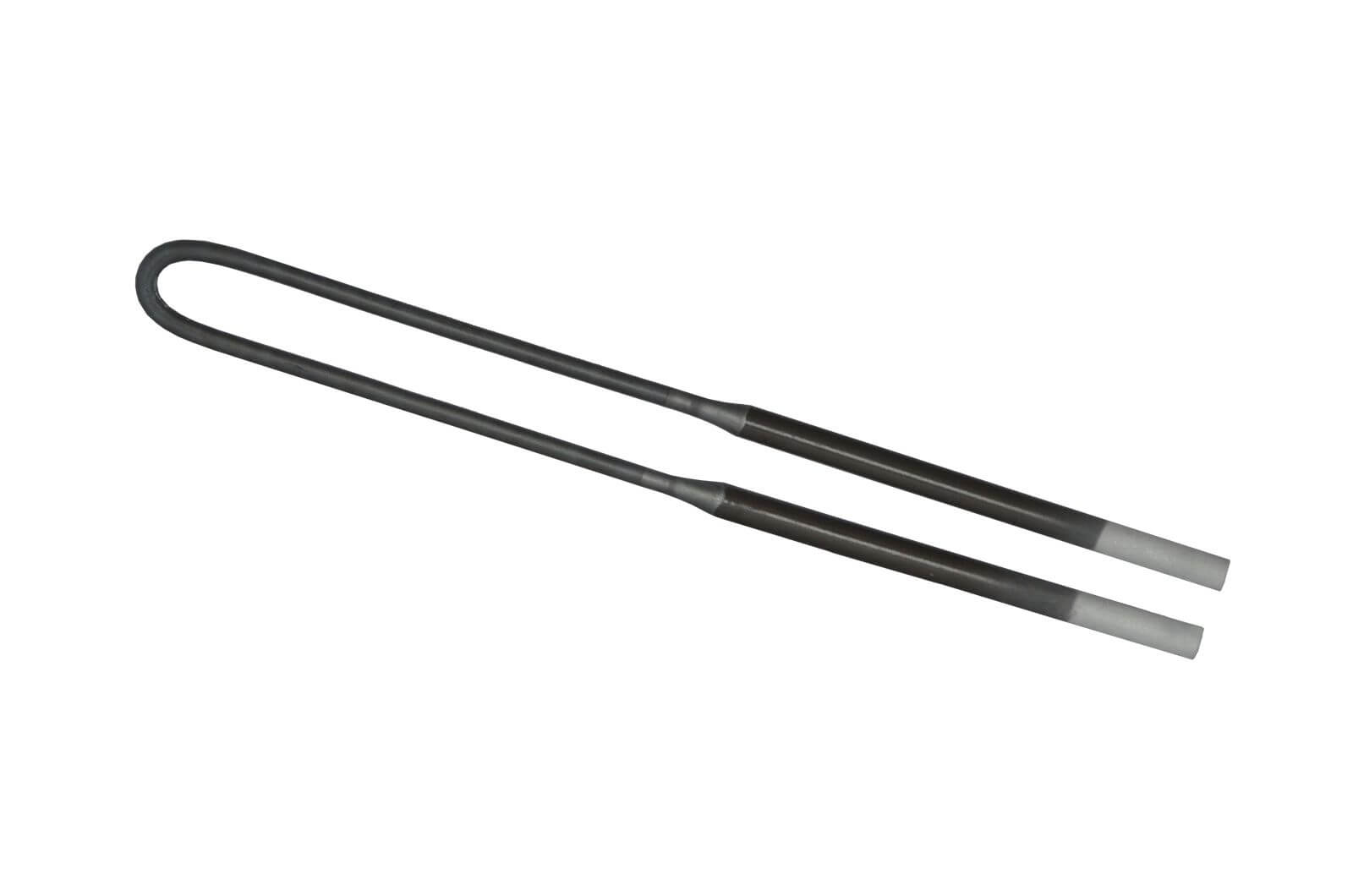

1. Heating element


(1) the hot end roughness D1 of the silicon molybdenum rod is 7mm, the average manufacturer adopts 6MM, the heating end is thick, the surface load of the rod is low, and the service life is long.

(2) it adopts hot bending technology, with uniform resistance and long service life

(3) the length of the cold end of the Lu is 210mm, 400X300X300 furnace is 260, the general manufacturer adopts 180mm, and the cold end has a low temperature.

(4) the surface oxidation of silicon molybdenum rod is compact and can better protect the silicon molybdenum rod.

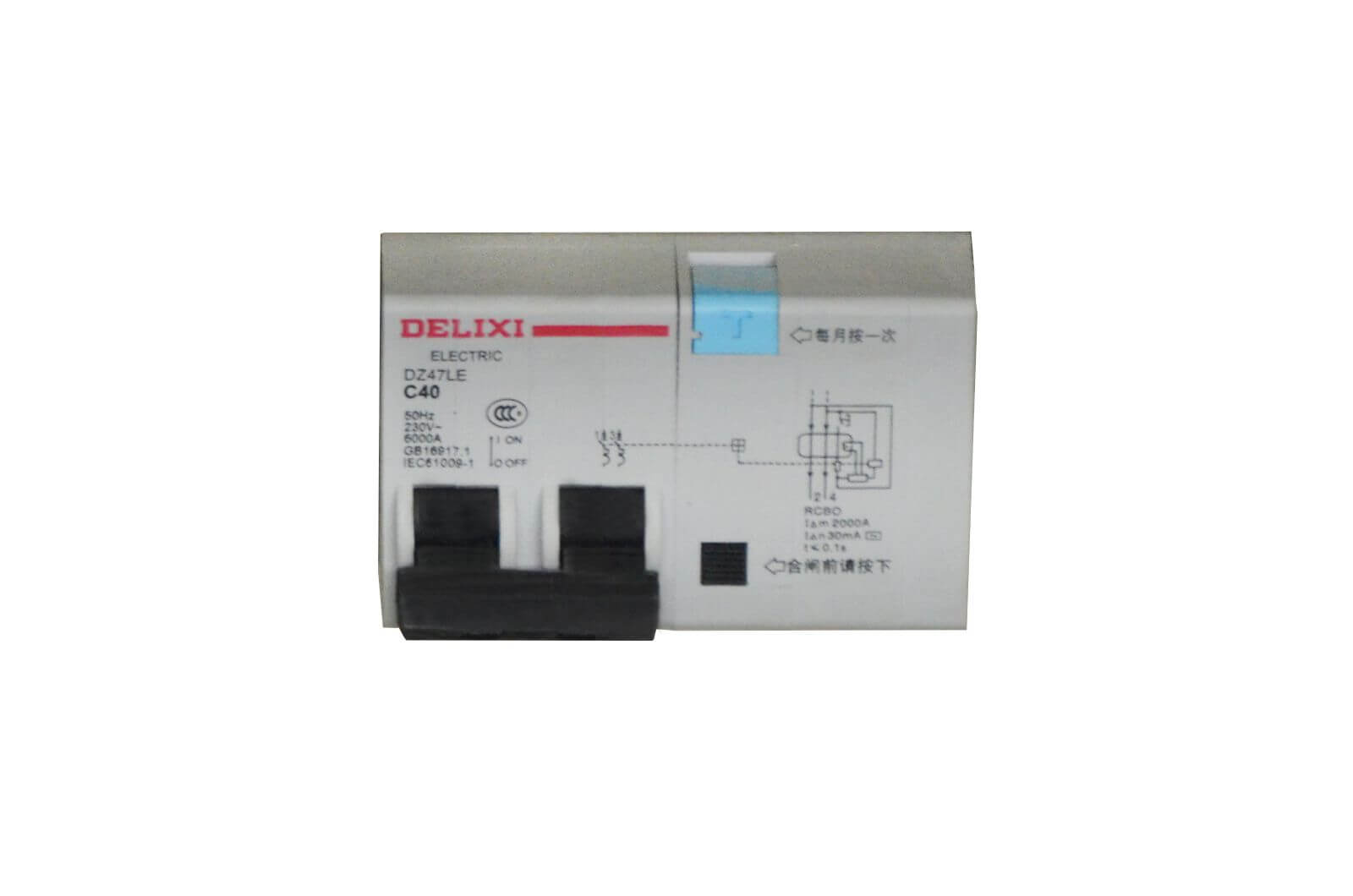

2. Install air switch and leakage protector:



When an electric current or leakage, an empty meeting automatically disconnects.

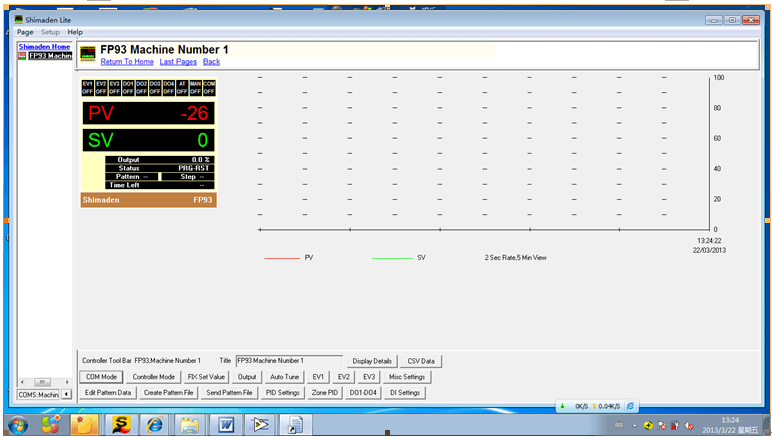

3. Can connect with computer

This furnace is equipped with communication interface and software, can be directly through the furnace computer control of each parameter, and can be observed from the computer PV on the stove and SV temperature value and instrument operation, the actual temperature of the furnace curve drawing computer real time, and can keep the temperature data of each time, can call up at any time

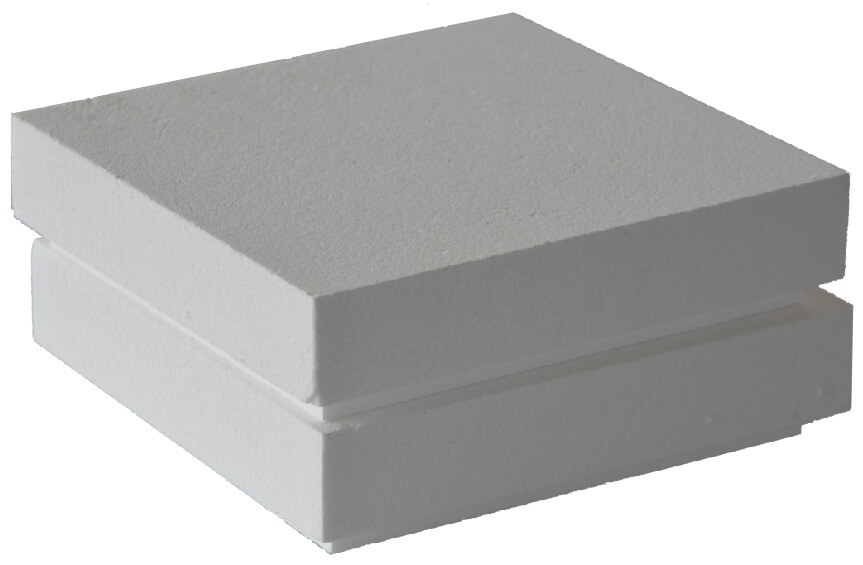

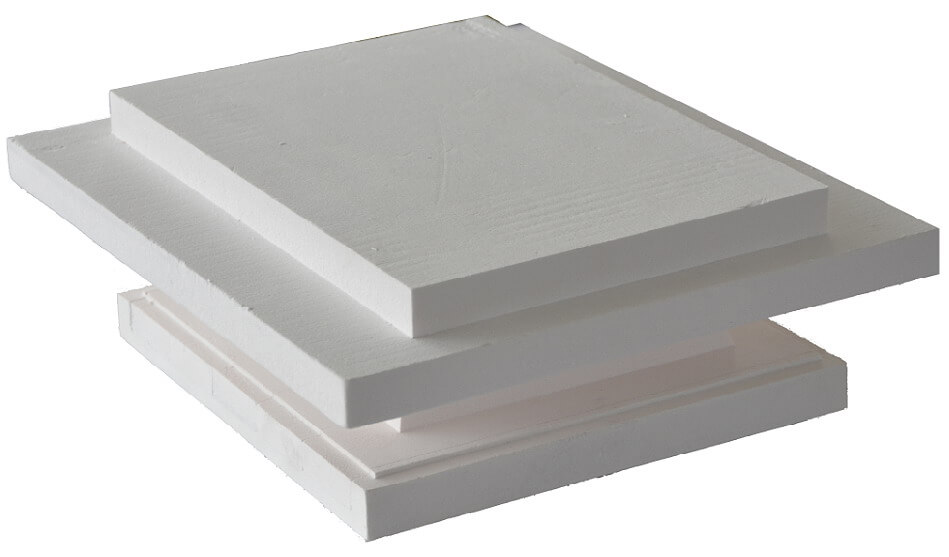

4.Chamber


      Imported                           VS                     Chinese

1. High quality high pure alumina polycrystalline fiber cured furnace with vacuum suction and filter molding.

2. Adopt Japanese technology to form.

3. The spacing and pitch of the resistance wire in the furnace are arranged according to the best thermal technology of Japan, and the temperature field is simulated by thermal software

4. Using 4 weeks heating, the temperature is more balanced The furnace can not remove powder, heat insulation, high reflectivity and temperature balance, which is strong against heat and shrinkage

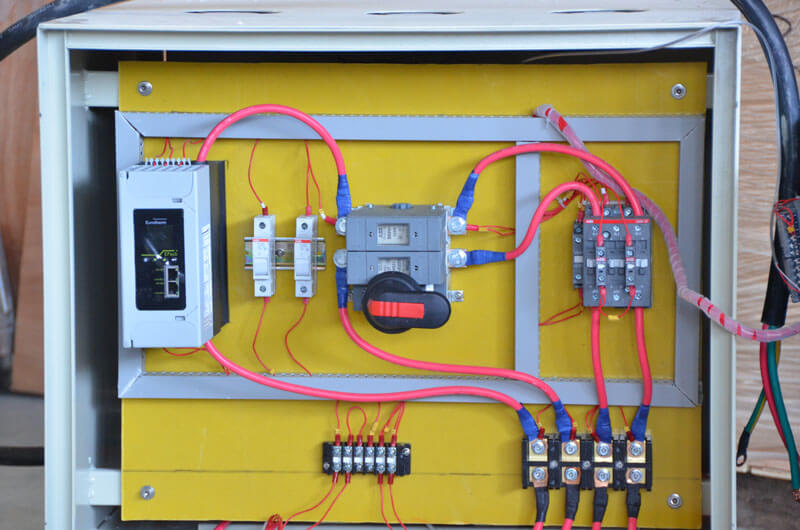

5. Optional UL certified electrical board (all imported electrical appliances approved by UL)



6. Trigger

  VS

Soft start limited flow trigger   Most of the manufacturers use the non - limited Xiamen botany trigger

1. Phase shift trigger (with soft start and current limiting function)

2. Current limiting function: no matter how the heating time is adjusted, the secondary current of our electric furnace after the transformer is limited to 170A, and the equipment is limited. Unlimited-flow triggers, if the heating rate is set wrong or too fast, The current is so large at low temperature that the device can trip or burn.

3. Soft start function: the current will gradually increase when starting up, and the impact on the heating element will be small, which will help to prolong the life of the heating element

4. Protection function: if the current exceeds the limiting current, the trigger will automatically cut off the trigger function to cut off the current protection furnace.

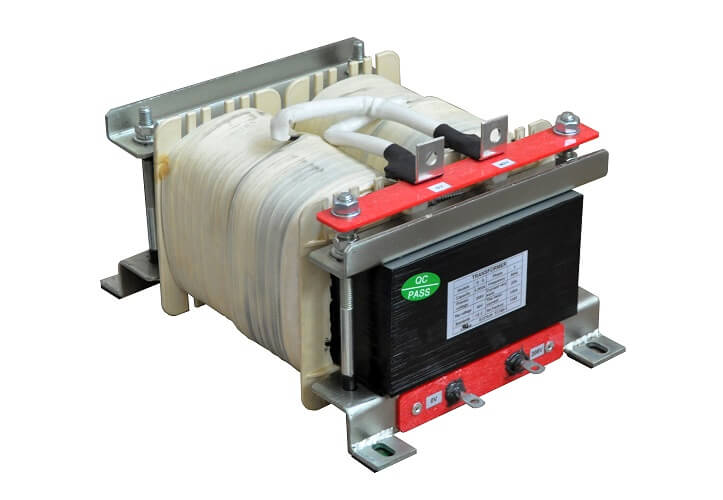

7. UL certified transformer


1. The transformer cable is pure copper

2. Small transformer

3. Low temperature of transformer

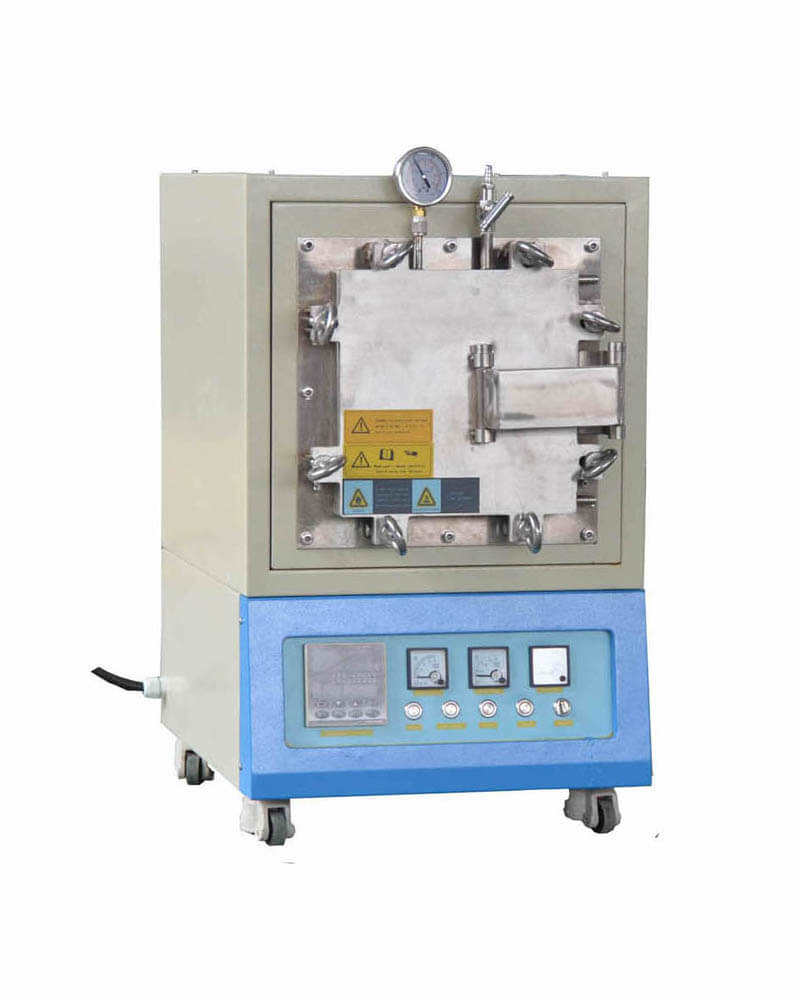

 The stainless steel tank of hydrogen atmosphere furnace is installed in the chamber of a stove or furnace a stainless steel tank, the tank oven door USES silicone O ring seal, in order to reduce O ring seal temperature in the furnace door is equipped with water cooling system, thermocouple, inlet valve, the valve installed on the tank, pressure gauge, etc; This furnace installation with hydrogen detector, burner, the combustion controller, alarm lights, torches, explosion-proof valve, etc., after gas after flow meter by chamber in and out, tail gas from the door of the oven after cooling water system. Can pass, argon, nitrogen, oxygen, hydrogen gases such as carbon monoxide, ammonia decomposition gas, &energy-saving equilibrium temperature field, the surface temperature is low, lifting speed, energy saving, clean furnace temperature is not easy to contaminated, universities, research institutes, industrial and mining enterprises do protect the sintering atmosphere, reducing atmosphere, skim the ideal product.


Specifications

Model

1100CAtmosphere-I

1100CAtmosphere-II

1100CAtmosphere-III

Power

4KW

9KW

16KW

         Furnace structure

1. The double shell structure is adopted and the fan is cooled.

2. Imported 310S stainless steel materials are imported.

3. Install the water cooling system at the door of the furnace and reduce the sealing temperature of the o-ring.

4. Installation of combustion system (including: igniter, combustion controller, burner).

5. Installation of explosion-proof valve (free setting valve opening pressure).

6. The installation of hydrogen detector can detect the leakage of hydrogen.

Chamber sizemm

300X200X200

380X280X280

480X380X380

Overall sizemm

480X590X 712

580X690X930

680X 790X950

Voltage

220V

380V

Phase

Single

 three

Heating element

Swedish Canthal A1 import resistance wire, the surface temperature up to 1420

Control system

The equipment is labeled with Japan's imported FP93 temperature control instrument .

Adopt the yu electric program control thermometer

1. 30 program control temperature intelligent PID adjustment.

2, over temperature protection is broken accidentally protection with a temperature or broken accidentally electric furnace heating circuit automatically cut OFF, and, when the temperature of the furnace more than 1200 degrees or thermocouple burn out, the main circuit of ac relay will automatically disconnect, main circuit disconnect, panel ON lights, OFF the light, the limited protection electric furnace).

3.With a 485 communication interface (the selection of the software for the selection of software)

4. It has the function of power failure protection, that is, when the power is off, the program will not start up from the beginning temperature, but the furnace will start to rise when the power is off.

5. The instrument has the function of temperature self-tuning



Imported instrument (optional)



FP93SHIMADEN, Japan                       EUROTHERM                                             Touchscreen

Chamber

1. High quality high pure alumina polycrystalline fiber cured furnace with vacuum suction and filter molding.

2. Adopt Japanese technology to form.

The spacing and pitch of the resistance wire in the furnace are arranged according to the best thermal technology of Japan, and the temperature field is simulated by the hot working software

4. Using 4 sides heating (left and right sides), the temperature field is more balanced



Control precision

+/- 10

Trigger

           Phase-shifted trigger

electric appliance

Zhejiang Zhengtai

silicon controlled

106/16E SEMIKRON, Germany

maximum temperature

1200

Rated temperature (working long hours)

1100

 heating rate

≤20 / Min adjustable

Recommended heating rate

≤10 / Min

·         Thermocouple Type

K

vacuum degree

In cold state, it can reach -0.1 MPa

·         position limit switch

The power will turn off automatically

Internal materiel

4mm nickel base alloy




Atmosphere Muffle Furnace







PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
