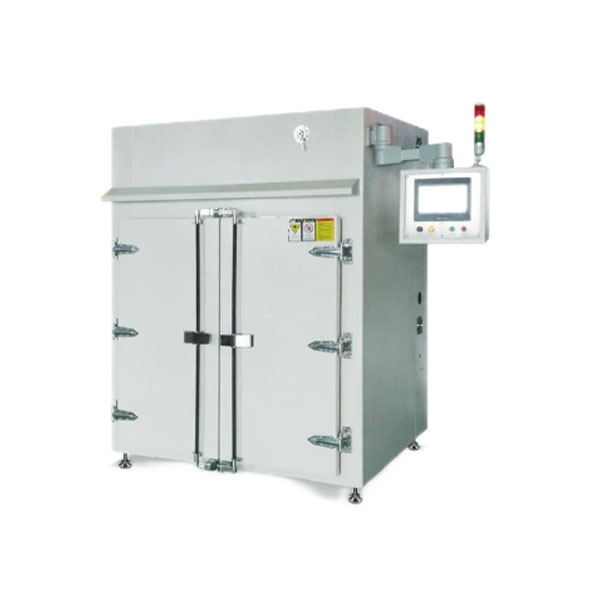

Louis@lithmachine.comIntegrated Vacuum Drying System for Battery Production
Application
The Automatic Vacuum Drying System is ideal for high-end supercapacitors and lithium-ion battery drying processes, maintaining a sealed vacuum environment from oven drying to glove-box electrolyte injection. This prevents electrode oxidation, minimizes moisture impact, enhances power density, lowers internal resistance, and significantly improves performance consistency and lifespan.
· Automated control system with programmable:
o Three-stage constant temperature
o Vacuum/hold-time settings
o Over-temperature alerts
o Vacuum refill and delay
o Safety pressure limits
o Flexible stage activation for tailored processing.
· Real-time display of temperature, vacuum/refill pressure, elapsed/remaining time, and other critical parameters via a touchscreen.
· Interior and shelving crafted from imported mirror-finish stainless steel for cleanliness and durability.
· Leak-proof stainless and corrugated hoses for vacuum-line connections.
· Electrically controlled valves ensure precise, responsive vacuum/gas flow control.
· Key components are high-grade imported parts, ensuring reliability and longevity.
· Powder-coated exterior delivers a long-lasting, aesthetically pleasing finish.
|
Parameter |
Specification |
|
Applicable Products |
High-end lithium-ion batteries, supercapacitors (customizable) |
|
Temperature Range |
Ambient to +180 °C |
|
Temperature Resolution |
0.1 °C |
|
Temperature Stability |
≤ ±2 °C |
|
Power Supply |
380 V / 50 Hz (3-phase, 5-wire) |
|
Power Consumption |
8 kW |
|
Weight |
Approx. 800 kg |
|
Dimensions (W × D × H) |
1,400 mm × 1,250 mm × 2,200 mm |
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
Packing & Delivery
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
