Prismatic Cell Electrode Tabs Welding Machine Automatic Welder

Prismatic Cell Electrode Tabs Welding Machine Automatic Welder

  • Product Details

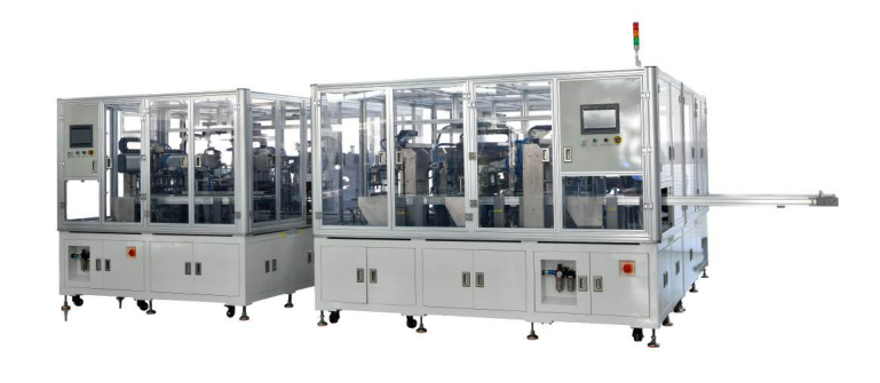

Prismatic Cell Electrode Tabs Welding Machine Automatic Welder


Workflow


Specification

Project

Parameters

Production efficiency

150 type 12ppm; 300 type 8ppm

Pole position accuracy

±0.3mm

Adhesive position accuracy

±0.5mm

Qualification rate

99%

Crop rate

>98%

Dimension

W6000x L4000x H2350mm

Weight/load

>750Kg/M2

Power supply

AC380V three-phase;voltage fluctuation±10%;power:30KW;frequency:50Hz

Compressed air

0.5~0.7Mpa ( 5~7kgf/cm2), dosage 200L/min


Model

TMAX-ZTHHJX-150

TMAX-ZTHHJX-300

Cell length

45~150mm

120~300mm

Cell width

35~100mm

80~200mm

Cell thickness

3~10mm

4~12mm



Production Assembly Plant




pouch cell final Sealing Machine


pouch cell production line








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
