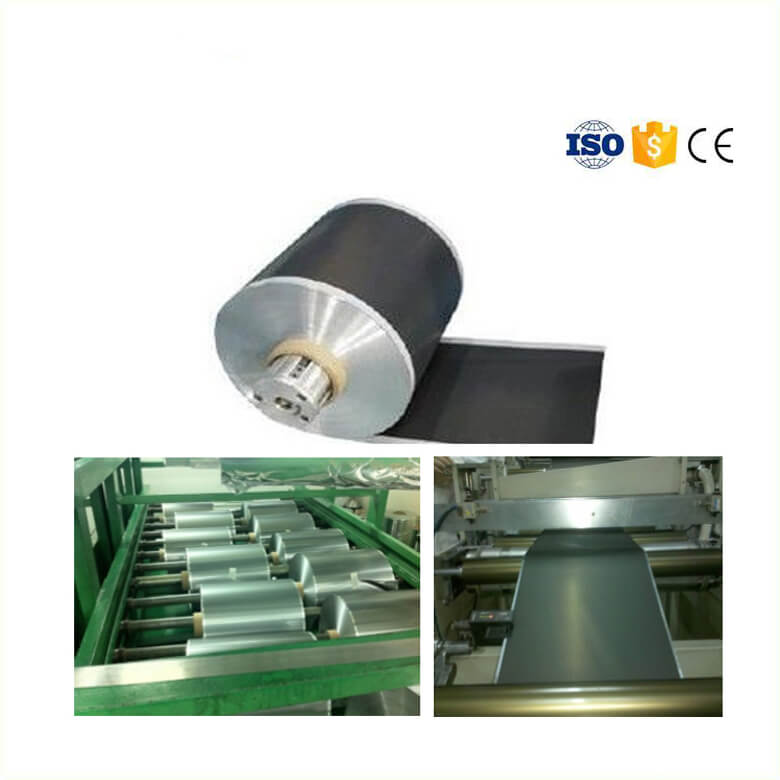

Lowest Price Conductive Carbon Coated Aluminum Foil for Lithium Ion Battery

ItemNo :
Lith-CAL-280
MOQ :
1
Delivery Time:
2 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

Specifications:
1.Double-sided coating thickness: A type agent system :4 ~ 6μm
B type organic solvent system: 2 ~ 3μm Conductive coating

2.Carbon-coated lithium aluminum foil

Test items	Measurements	Test Methods
Foil Substrate thickness (μm)	7-30	Micrometer
Exterior color	Black/ gray	Visual
Surface density one side (g / m2/ side)	0.5-2.0	Gravimetric method
Compacted single conductive coating thickness (m)	1	Rays

3.Battery coating layer

ESGD Type	Application
Lithium-Fe Batteries	Electrode primer coating
Lithium-Mn Batteries	Cathode coating
Electric Double Layer Capacitors	Electrode primer coating
Lithium-NMC Batteries	Cathode Coating
Button Batteries	Replacement of metal mesh

4.Conductive coating processing capacity:
• Has Japanese Fuji coating machine, slitting and rewinding machine automatic computer check;
• Coating speed average of 90-120 m / min;
• Stand-alone produces about 21,600 per 8 hours meter conductive coating aluminum foil,
For about 200Kpcs use of 18650;
• Roller Coating maximum width of up to one meter;

• Coating can be used continuously or intermittently.

5.Continuous conductive coating Main Specifications

Continuous conductive coating main specifications(mm)	457	360	356	346
The areal density of the corresponding single (g/m2/side)	0.5-2.0	0.5-2.0	0.5-2.0	0.5-2.0

Note: the width and the areal density can be customized

6.Conductive coating gap Main Specifications

Continuous conductive coating Main Specifications(mm)	457	360	356	346	346
The areal density of the corresponding single (g/m2/side)	0.5-2.0	0.5-2.0	0.5-2.0	0.5-2.0	0.5-2.0
Gap width	527	606	591	598	315
Blank width	12	5	36	175	15
