Li-Ion Battery Anode-Single Layer CMS Graphite Coated on Cu Foil for Electrode Material

ItemNo :
LITH-GCCF
MOQ :
1
Warranty:
1years
Delivery Time:
2 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

Li-Ion Battery Anode-Single Layer CMS Graphite Coated on Cu Foil for Electrode Material

Specifications

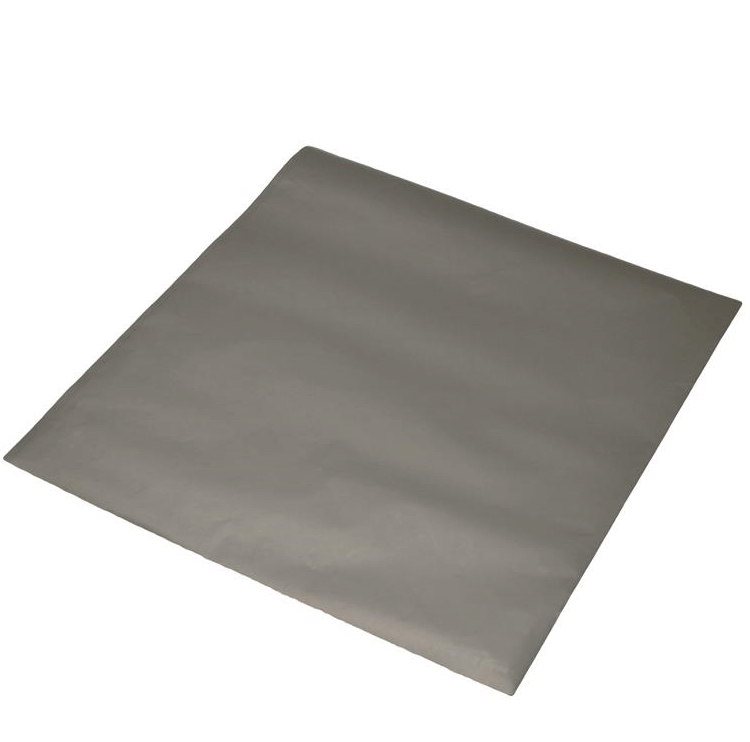

This electrode sheet is based on copper foil coated by carbon in single side and is used as anode electrode of Li-Ion battery

5 sheets/bag

Current collector (substrate): Copper foil, 9 micron
Anode material: Composite Graphite
Binder: SBR+CMC
Single side active material density: 80g/m²
Active Material Proportion in Powder: 94.5%
Length: 241mm
Width: 228mm
Thickness: 0.05mm (single side coated )
Specific Capacity: 330mAh/g
Single side coated
Qty: 5 Sheets/bag
Warning: Please dry in vacuum oven before using and store it inside glovebox after open package

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
