Li Battery Assembly Automation Line for Energy Storage/EV Car/Solar Light Batteries

Li Battery Assembly Automation Line for Energy Storage/EV Car/Solar Light Batteries

  • ItemNo :

    LITH-Auto-pack
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Li Battery Assembly Automation Line for Energy Storage/EV Car/Solar Light Batteries

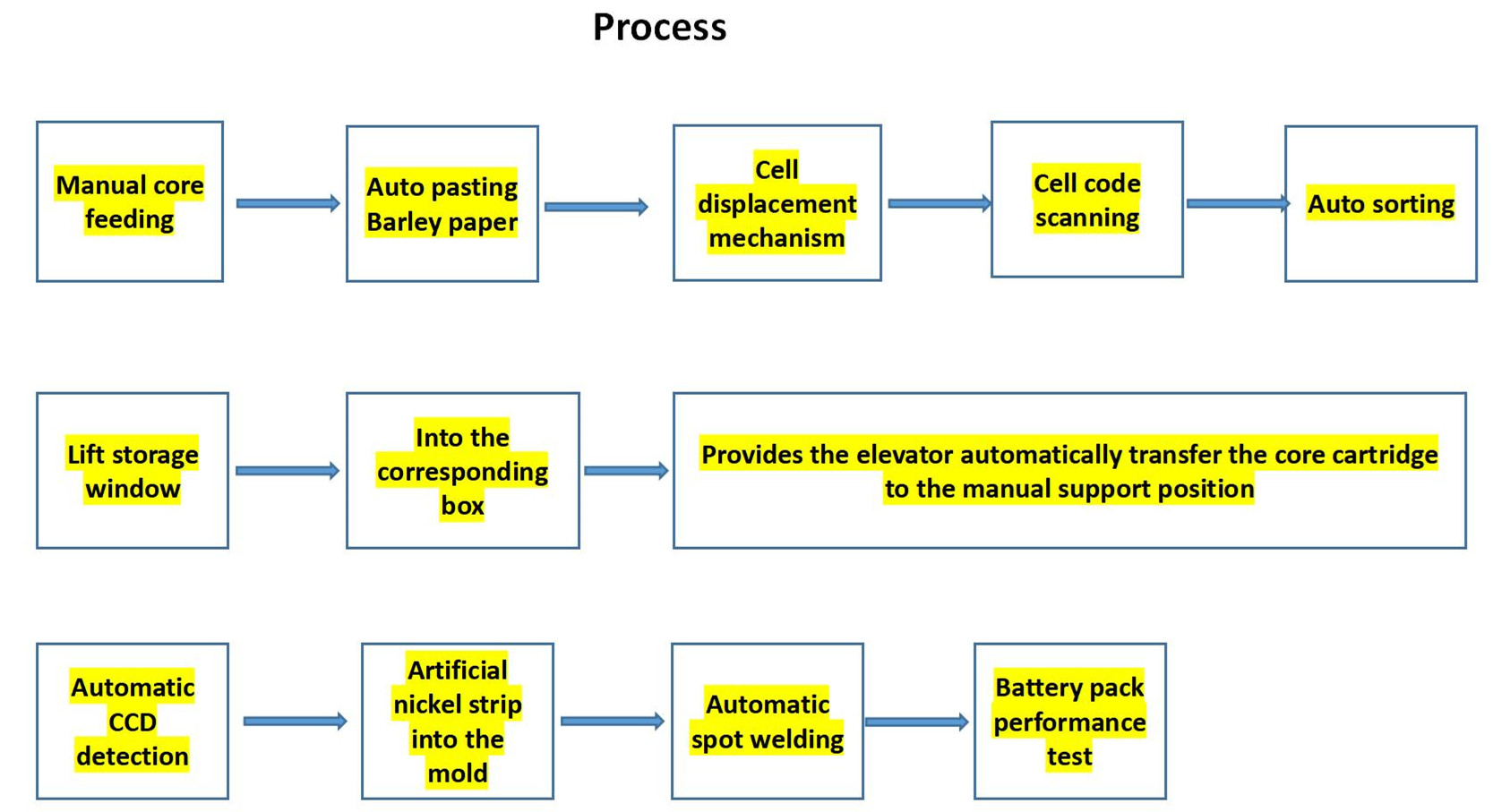

With the wide application of lithium batteries in the field of new energy, automation equipment has become one of the core competitiveness of the enterprise. Tmax has independently developed the lithium battery pack automatic assembly line system, which integrates lithium battery sticking machine, sorting machine, testing system, battery pack automatic assembly system, CCD visual recognition system, automatic spot welding system, and selects full-automatic feeding and automatic sorting structure to ensure the consistency of battery cells. It can automatically scan and obtain the bar code of the cell, classify the bar code of the pack, bind and record it, and fully trace the data information of product production and manufacturing in combination with the MES system.

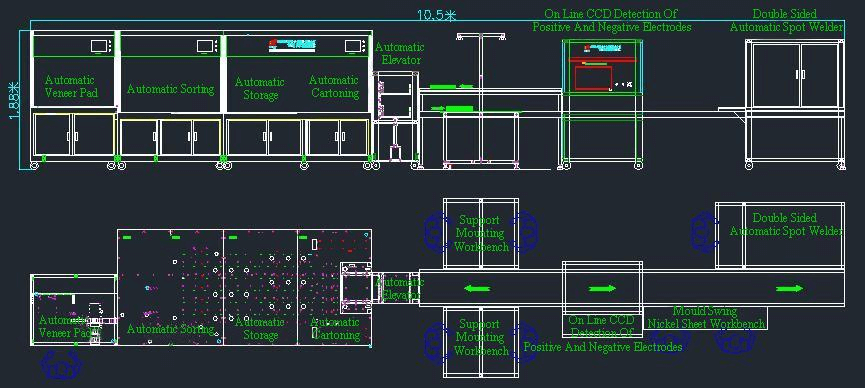

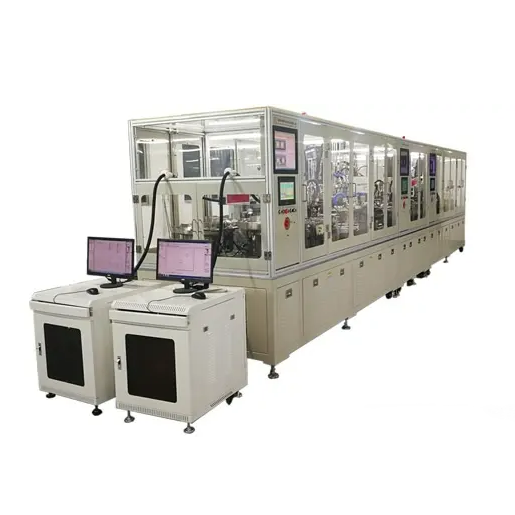

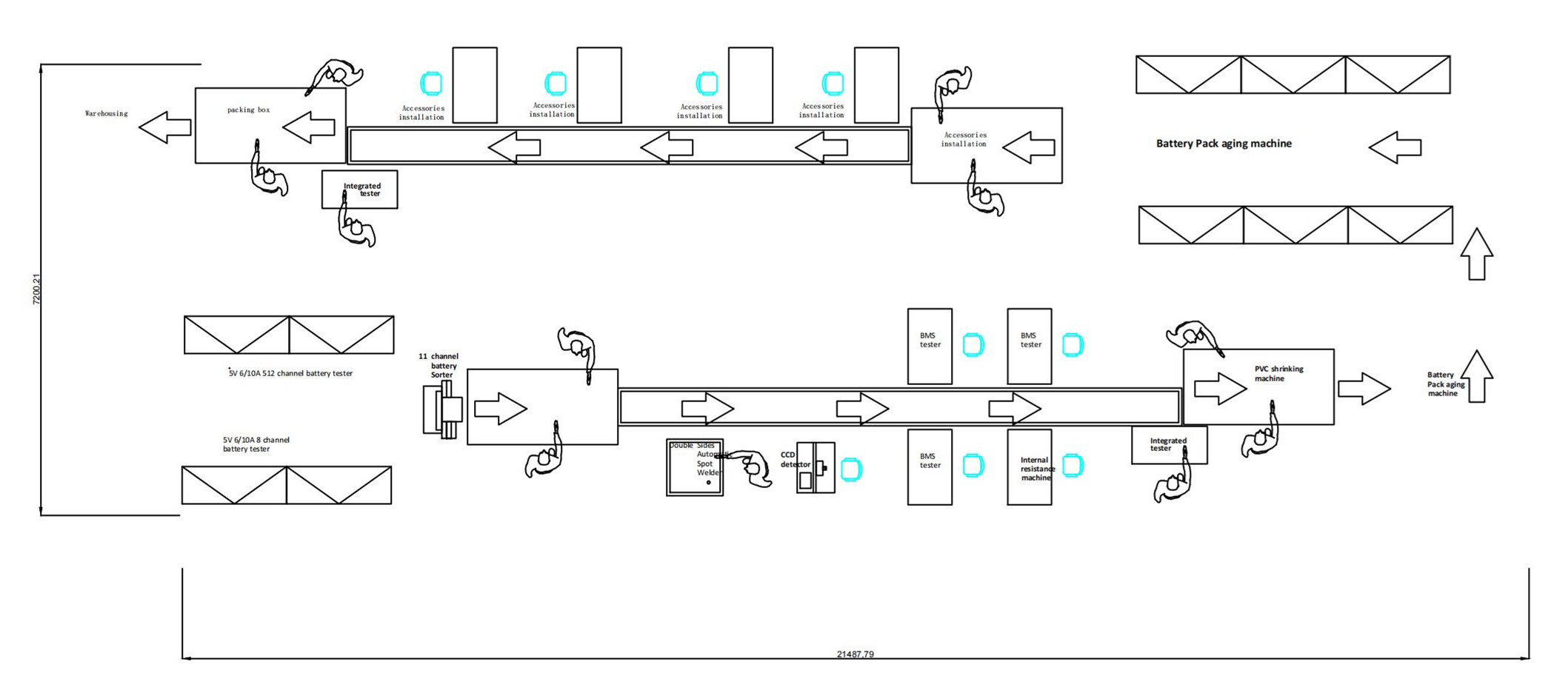

Production line physical drawing


Li Battery Assembly Automation Line

Major function
 Technical parameter

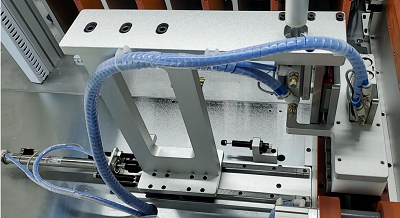

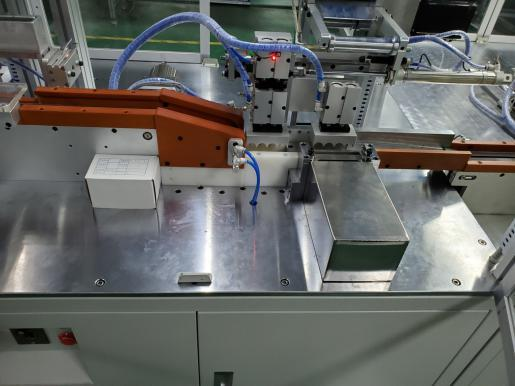

Insulation paper pasting





AC220V±10% 1.6KW 50HZ±10%

Gas Source: 0.4-0.8 Mpa, no water mist, no impurity

Use a 4-pin pad mechanism for increased efficiency

Use variable frequency motor and cam ram to prevent core

Damage

Japanese high-speed steel die with design life of 5 years

Automatic waste collection

With own fault alarm system (remove as prompt)

Automatic alarm of highland barley paper

Quantitative reminder of die cleaning

Cycylinder cylinderAirTAC/SMC/XINCHENG

Pneumatic control elementsAirTAC/SMC/ Tiangong / qilike

Sensduction device):LIKE

 Productive efficiency 4500-5000PCS/H

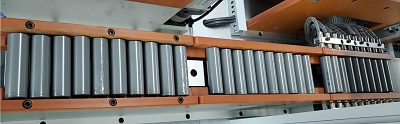

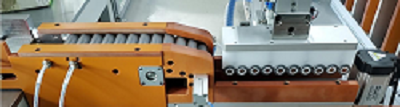

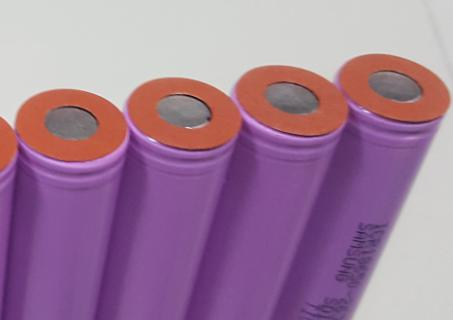

Automatic cell row spacing mechanism


Automatic access to the insulated paper of the core,
according to 21700 cell spacing, using servomotor automatic
arrangement, 10PCS per time, 18650 cells also according to
21700 cell spacing material, 18650 and 21700 cells universal

Automatic material removal mechanism


The arranged cells are automatically transferred to the core
shift mechanism 1

Core shift mechanism 1


 Move the core from the feed position to the sweep position
and transfer the core to the test position

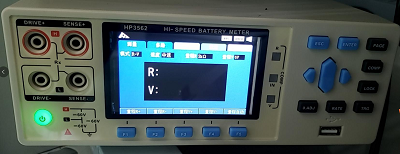

HK3562 voltage internal resistance tester


 (IR Tester)HK3562
(Test channel) 12 channel
(Voltage accuracy )0.000001V
(Internal resistance accuracy)0.01mΩ
(Testing pins type)KS-100A3000
(Test the needle life)80 0000 times
(Efficiency): 6000PCS/H

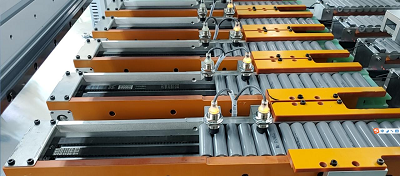

Automatic sorting assembly automatically


1.Power:AV220V±10%;1.6KW 50HZ±10%
2.Gas source: 0.4-0.8Mpa, no water fog, no impurities
3.Use a 3-column synchronous belt transmission
4.Transmission power: 25W deceleration motor
5.Sensor: Omron / vertical machine

6.Number of gears: 5 OK gears

7.The assembly line is divided into electric core feed level and
electric core discharge level
8.The core feeding level with automatic mounting mechanism,
automatically open when taking the core

Take up the core shift manipulator


 1. Power:AC220V±10% 1.6KW 50HZ±10%
2.Gas source: 0.4-0.8Mpa, no water fog, no impurities
3.Use the Taiwan upper silver guide rail, silk rod
4. Take the core manual power: 2-axis 400W servo motor
5. Take up the core module: 2-axis
6. Core capture: cylinder expansion permanent magnet, stable and
reliable
7. Control system: The XD Series PLC programmer
8. Sensor: Omron / vertical machine
9. Operation interface: TG-765-UT color display screen, easy to
operate

Lift-type core storage window


 1. Power:AV220V±10%;1.6KW 50HZ±10%
2. Use the Taiwan upper silver guide rail, silk rod
3. Lift power: the deceleration motor
4. Storage capacity: 18650, about 240PCS,21700, about 200PCS
5. Lift speed: 8MM/ seconds
6. Control system: The XD Series PLC programmer
7. Sensor: Omron / vertical machine
8. Operation interface: TG-765-UT color display screen, easy to operate

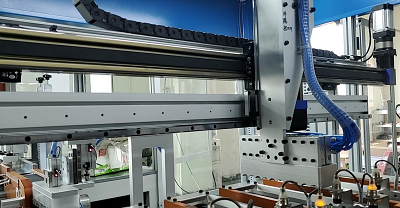

Core shift manipulator


 1. Power:AV220V±10% 2.4KW 50HZ±10%
2. Gas source: 0.4-0.8Mpa, no water fog, no impurities
3. Use the Taiwan upper silver guide rail, silk rod
4. Take the core manual power: 3-axis 400W servo motor
5. Core shift module: 2 axis X 1 axis Y 1 axis Z
6. Core capture: cylinder expansion permanent magnet, stable and
reliable
7. Control system: The XD Series PLC programmer
8. Three position core shift, select the material belt → core storage
window → into the box

Core storage assembly line before entering the box


 1. Power:AV220V±10% 1.6KW 50HZ±10%
2. Gas source: 0.4-0.8Mpa, no water fog, no impurities
3. Use a 3-column synchronous belt transmission
4. Transmission power: 25W deceleration motor
5. Sensor: Omron / vertical machine
6. Number of gears: 5 OK gears
7. The assembly line is divided into electric core feed level and electric
core discharge level
8. The core feeding level with automatic mounting mechanism,
automatically open when taking the core

Take the core into the box manipulator


 1. Use the Taiwan upper silver guide rail, silk rod
2. Take the core manual power: 3-axis 400W servo motor
3. Core shift module: 2 axis X 1 axis Y 1 axis Z
4. Core capture: cylinder expansion permanent magnet, stable and reliable
5. Control system: The XD Series PLC programmer
6. Two positions core shift, before entering the box core storage assembly
line → rubber box
7.In the touch screen to set the number, the manipulator automatically
grabs from the core storage assembly line before entering the box
according to the set number, and loads the core into the rubber box in
sequence
8. Number of rubber boxes: 18650 cells up to 180PCS,21700 cells up to
150PCS
9. Sensor: Omron / vertical machine
10.Operation interface: TG-765-UT color display screen, easy to operate

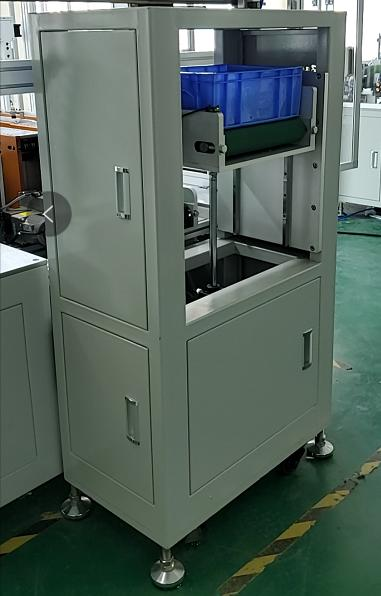

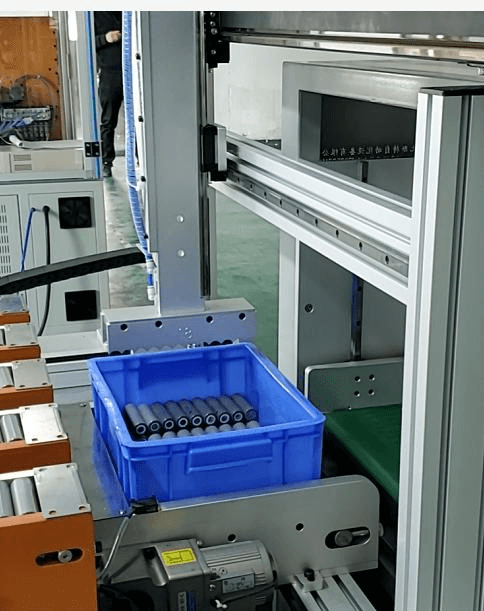

 Automatic Elevator


 1.Power:AV220V±10% 2.4KW 50HZ±10%
2. Gas source: 0.4-0.8Mpa, no water fog, no impurities
3. Taiwan upper silver guide rail
4. Lift power: pneumatic
5. Box entry and exit power: 25W deceleration motor
6. Box conveyor: delivered by PVC belt
7. Control system: The XD Series PLC programmer
8. Three position core shift, robotic hand box position elevator position → double-layer assembly line position
9. Sensor: Omron / vertical machine
10.Operation interface: TG-765-UT color display screen, easy to
operate

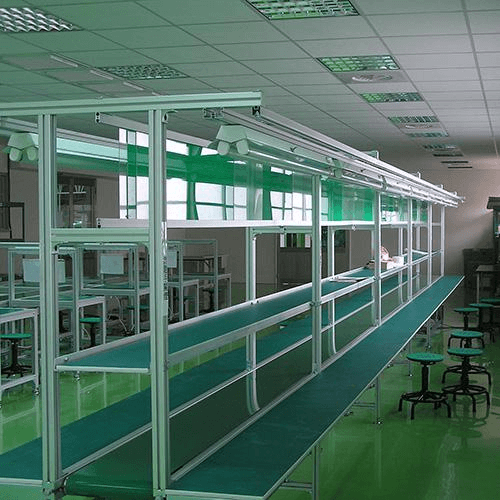

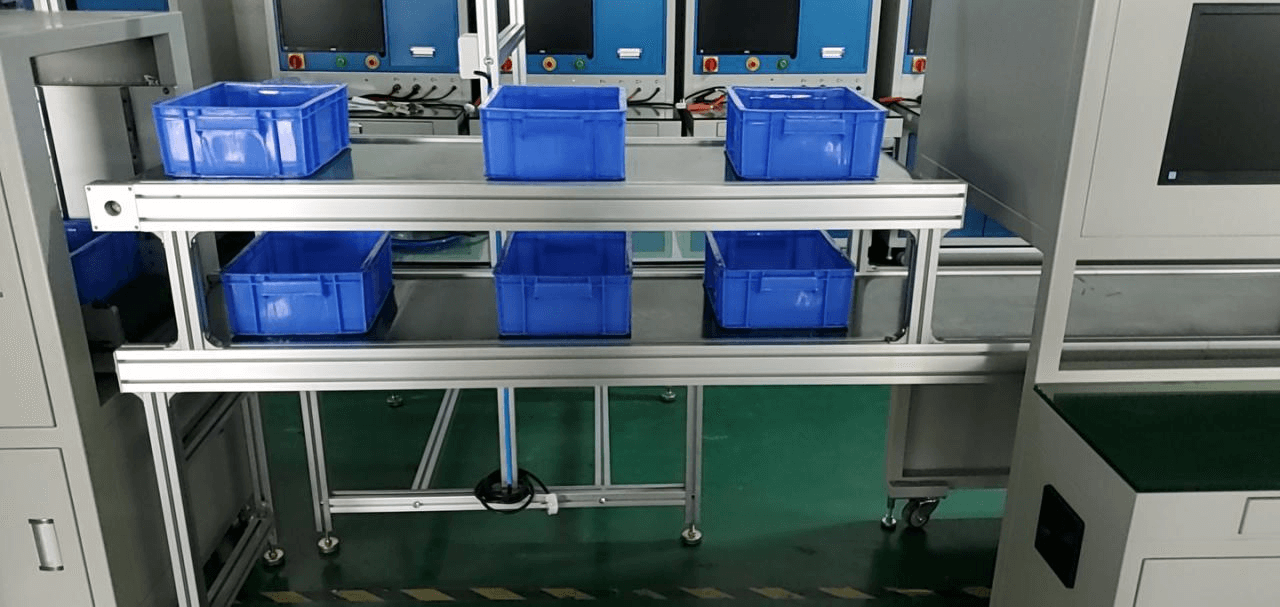

Double-layer assembly line



Upper-layer assembly line:
L1500MM Belt Width 400MM, transmission speed of 1-3 m / min
Transmission power: 25W deceleration motor, 2MM green PVC belt
Main function: automatically connect the empty rubber box into the
elevator

Lower-class assembly line:
L5000MM Belt Width 400MM, transmission speed of 1-5 m / min
Transmission power: 180W deceleration motor, 2MM green PVC belt
Main function: Transfer of items at the back end

 Automatic lifting table



Automatic lifting table

The core box enters the automatic lift through the belt roller and

rises to the upper outflow of the double assembly line


Double-layer assembly line

The upper assembly line flows into the box that has been loaded
with the core, and the whole box is manually removed to
complete the placement of the bracket, the nickel chip and the
core into the mold

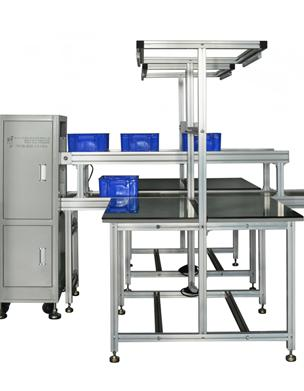

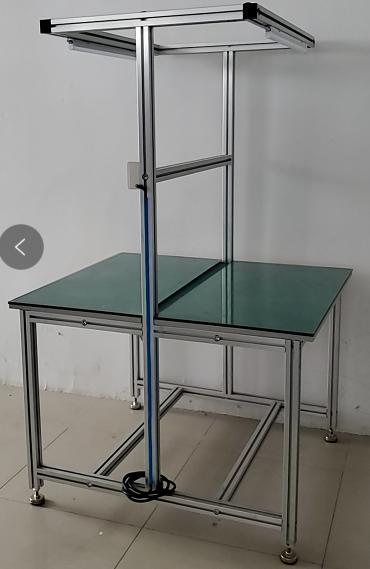

Double station bench



1.L1040*W900*H1600MM
2. Aluminum alloy production
3.Dual position design, countertop of 15MM plywood surface
affixed with anti-static rubber, upper layer change
4.10MM tempered glass
5. With power socket and LED energy saving lights

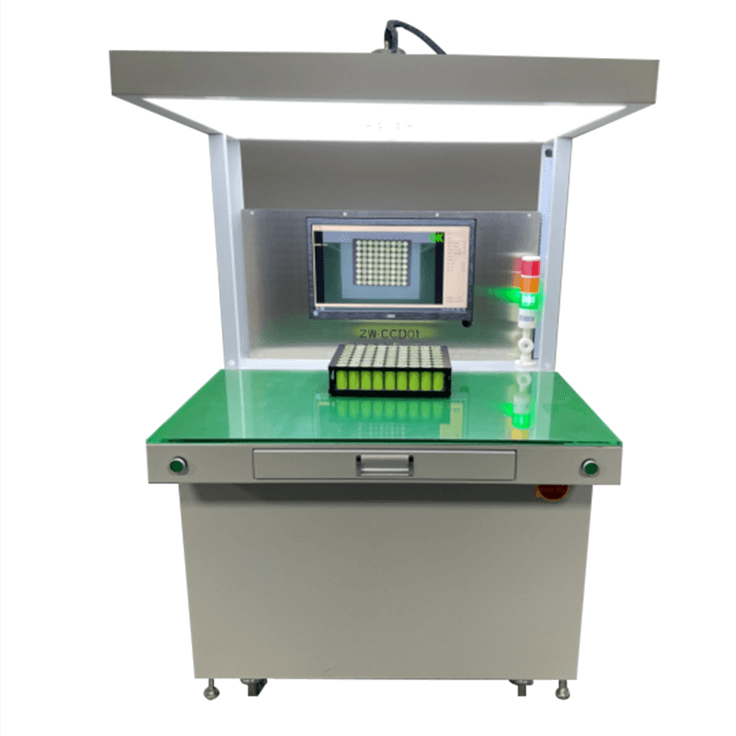

 Online CCD


1. PowerAC220V±10% 0.6KW 50HZ±10%
2. Adopt the Hikvision 6 million HD video camera
3. Identification system: independently developed
4. Video width: within 420 * 300MM
5. Execution device: industrial control machine, genuine WIN7 system
6. Main functions: conduct positive and negative electrode detection and
comparison of the inserted core, wrong position or polar reverse alarm
and stop operation, and release after manual confirmation
7. Scan efficiency: the above single set of batteries is 3 seconds / times

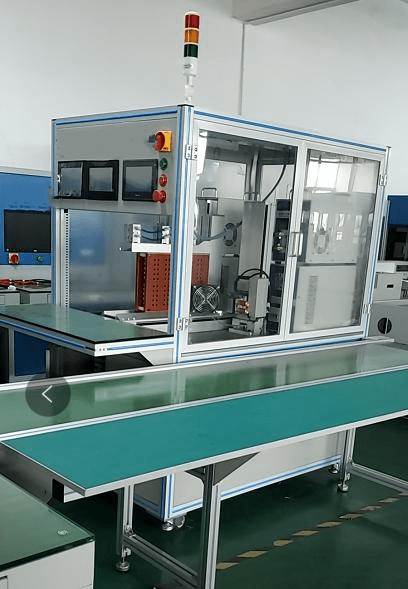

Battery pack double sides spot welder


1. The MDA8000B transistor spot welding power supply is
standard as standard
2. With current detection function, virtual welding, fried fire alarm
3. Five-axis pure servo motor operation
4. Spot welding coordinate data adopts U disk import mode or array mode
5. Different positive and negative electrode welding current (spot
welding specification)
6. Can set a single core in a certain position without spot welding
7. Double-sided spot welding, better spot welding effect, more stable
8. Spot welding efficiency: above 4500PCS core / H (2 points, 4
positive points and 4 negative points)
9.Spot-welded nickel pad
♦ 0.08-0.15 Nickel plating or pure nickel may not enlighten the flow
groove welding
♦ 0.15-0.2 Nickel plating or pure nickel, enlighten flow channel
welding is recommended
♦ Above 0.2 mm-0.5 nickel or pure nickel plating recommended bump
welding
Battery Integrated Performance
Tester
Power:AC220V 50HZ
Continuous output power:2KW
Continuous load power:6KW
Max Voltage:100V
Max charge current:20A
Max discharge current:120A

 Back-section assembly line



1. Linear specification: L12*W1.1*H2 m (adjustable)
2. Aluminum alloy production
3. With power outlet, air supply connector, LED energy-saving lamp
4. Complete the assembly process after the module welding

Productive efficiency About 3600-4000PCS/H

Equipment growth rate98%

Personnel equipment: 1 person on material, 2 people for nickel plate mounting bracket, 1
person for CCD visual test, 1-2 people for spot welding, 1 person for comprehensive

performance test,The latter segment was assembled for 1 – 2 people per station

Welding qualified rate of equipment 99.9%

Outline Dimension: L10500*W1500*H1860MM







Battery Assembly Automation Line





PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
