ItemNo :
LITH-OV-QMOQ :
1Warranty:
Two years limited warranty with lifetime technicalDelivery Time:
5 days
Introduction

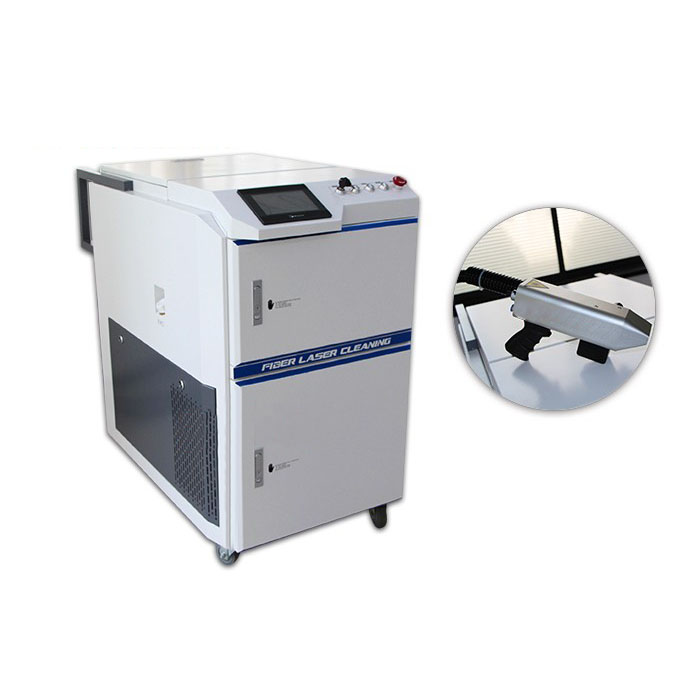

TMAX LASER is the leading provider of laser cleaning solution in China. Supplying 50watts to 1000 watts laser power for a wide-range of applications. It is easy to install, operate, easy to achieving automation. Plug in power, turn on and start cleaning-without chemicals, media, dust, water. Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.
Application
TMAX LASER provides surface preparation technology that’s both efficient and remarkably versatile for a growing list of industrial applications. Whether the surface is metallic, plastic, ceramics, glass, stone or concrete, the results speak for themselves.
|
Model
|
Q50
|
Q100
|
Q200
|
Q500
|
Q1000
|
|
Laser Power
|
50W
|
100W
|
200W
|
500W
|
1000W
|
|
Power Consumption
|
500W
|
800W
|
2000W
|
5000W
|
8000W
|
|
Laser Gun Weight
|
1.5KG
|
1.5KG
|
1.8KG
|
2.5KG
|
3.5KG
|
|
Cooling System
|
Forced-air cooling
|
Water chiller
|
|||
|
Cable length
|
3 Mtrs (can be lengthened)
|
||||
|
Working mode
|
Manual or auto
|
||||
|
Machine Life Span
|
≧ 50000 hours
|
||||
|
Working Distance
|
150mm / 2500mm / 500mm
|
||||
|
Laser Wavelength
|
1064 um
|
||||
|
Power Supply
|
220v / 50hz / 2A or 380v / 50HZ / 2A
|
||||
|
Work Environment
|
5℃ - 45 ℃ , ＜ 90% Humidity
|
||||
|
Laser Class
|
IV
|
IV
|
IV
|
IV
|
IV
|
Photos
Samples
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
