Laboratory Slot-Die Film Coater For Battery Electrode Coating

ItemNo :
LITH-SLD
MOQ :
1
Compliance:
Warranty:
2years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

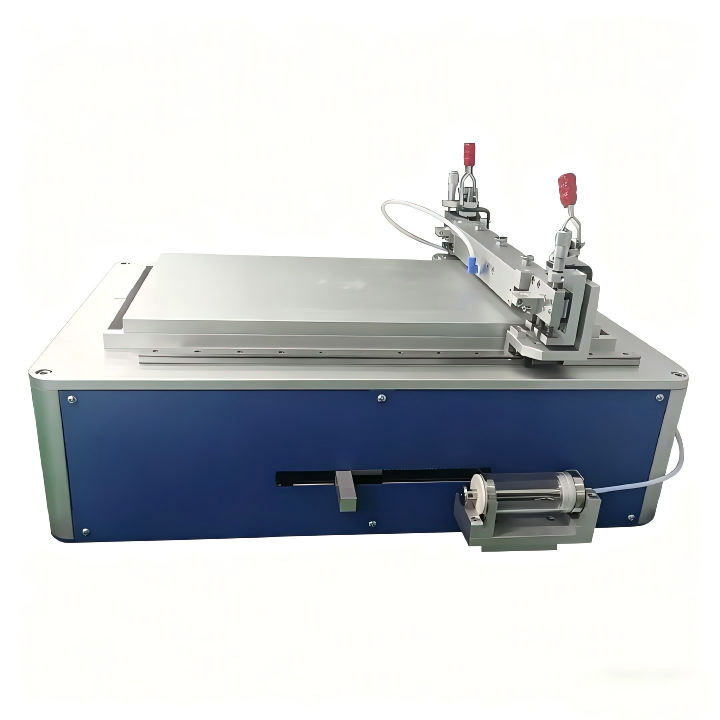

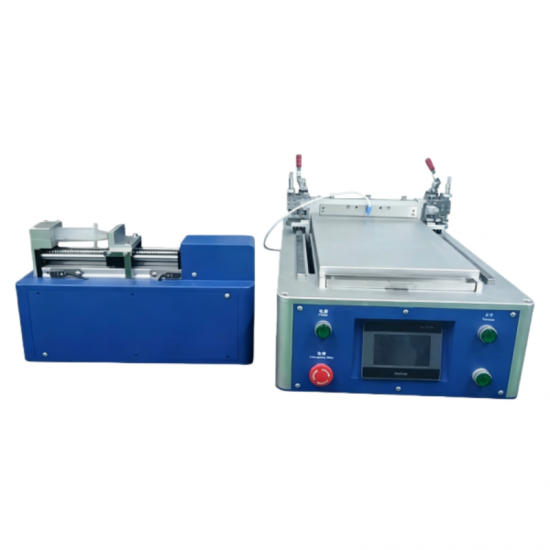

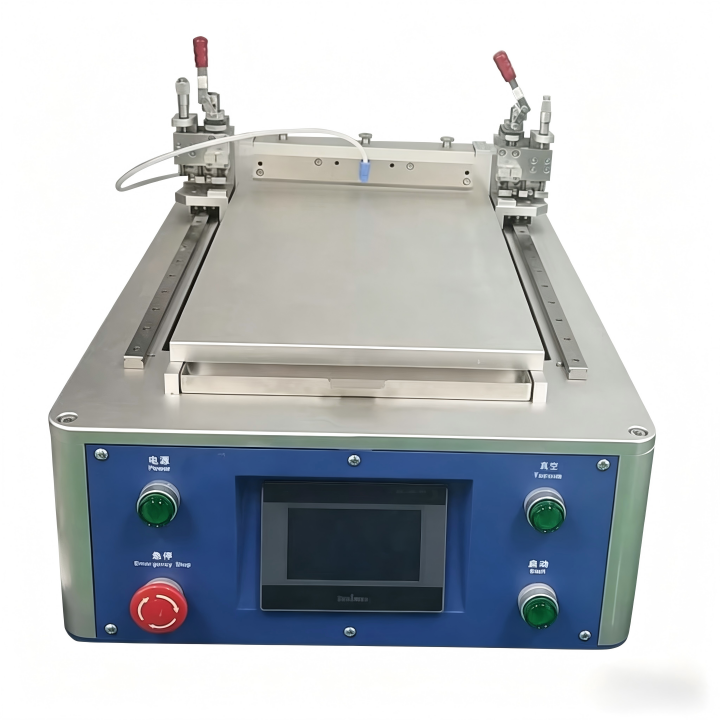

Laboratory Slot-Die Film Coater For Battery Electrode Coating

LITH-SLD is a high-precision laboratory slot die coating system designed for uniform thin-film coating in advanced material research, including lithium battery electrodes, solar films, OLED layers, and conductive polymers.

Why Choose LITH-SLD?

High coating uniformity for research-grade results
Multi-functional coating methods in one system
Stable and repeatable coating performance
Integrated heating & vacuum platform
Ideal for lab research and pilot-scale development

Product Overview:

Slot die coating system with max 250mm stroke
Supports multiple coating methods (slot die, doctor blade, wire rod, etc.)
Designed for lab-scale precision coating and material development

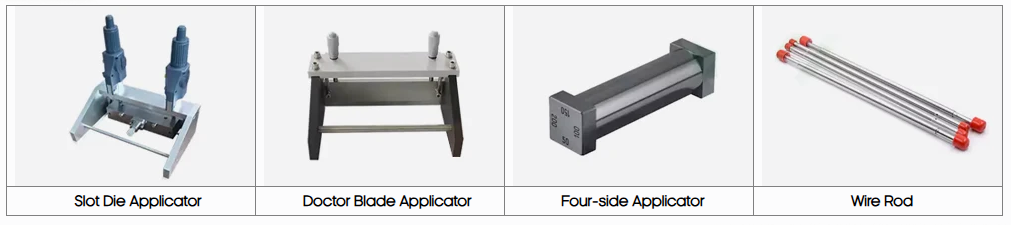

Supported Coating Methods:

Slot Die Coating
Doctor Blade Coating
Four-side Applicator
Wire Rod Coating

Technical Specifications

Parameter	Specification
Coating Speed	0-100 mm/sec (adjustable)
Maximum Stroke	250mm
Vacuum Plate	Equipped with a vacuum aluminum plate
Vacuum Plate Size	365mm (L) × 200mm (W) × 30mm (H)
Blade Adjustable Range	0.01 - 3.5mm
Heating & Drying System	Room temperature to 200°C, digital temperature controller, accuracy ±1°C
Power Supply	220V or 110V/ 50Hz
Machine Weight	65kg
Machine Dimensions	500mm (L) × 310mm (W) × 330mm (H)

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
