Laboratory PTFE Inner Cavity Vacuum Spin Coater Machine Can Be Placed in The Glove Box

Contact Now

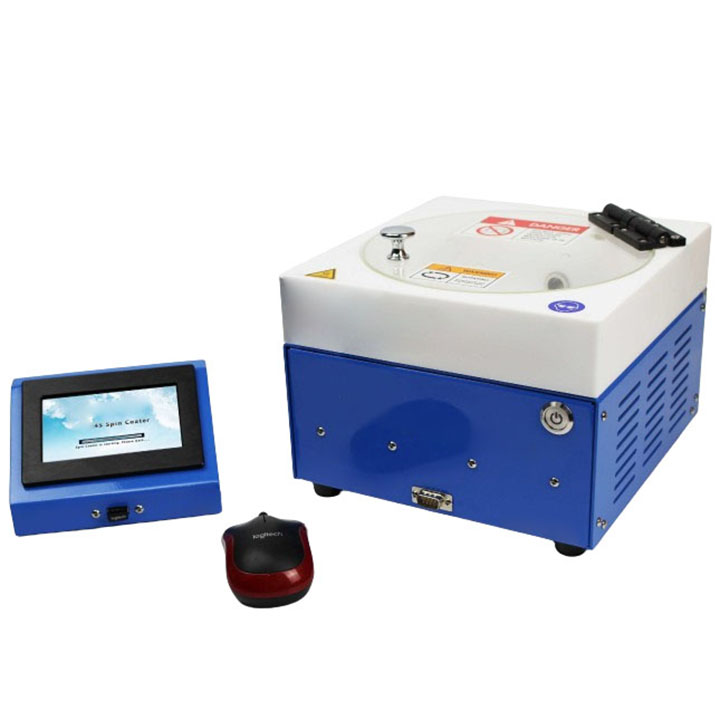

Laboratory PTFE Inner Cavity Vacuum Spin Coater Machine Can Be Placed in The Glove Box

Spin Coater

Key Features：

1. Alarm setting to prevent substrate fly-off

2. Alarm setting to prevent glue penetration

3. Machine reversible

4. Function of prevent power-down protection

5. Acceleration adjustable

6. Temperature heating ： room temperature -200℃

7. Can be placed in the glove box

8. PTFE inner cavity

9. Can add mouse and keyboard

Spin Coater Specifications （KW-4S Spin Coater）

Substrate size	5-50mm
Speed range	50- 10000RPM
Acceleration range	10- 10000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Heating range	Room temperature -200℃
Human machine interface	4.3-inch touch screen
Communication interface	Enable to connect with wireless mouse and keyboard： machine can place inside the glove box and operate by remote control outside the glove box
Turn around	Support forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Vacuum Pump	SC-550V
Set data	Unlimited groups data,10 speeds per group (standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Data protection	default with power-down protection
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	350W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Weight(Spin Coater)	10KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

Spin Coater

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
